PowerLine Dimensional Information:
Housing Type:-
High Country Tek unique ‘encapsulated’ block.
Housing Material:-
None, solid, flameproof epoxy resin block.
Housing Color:-
Black / dark Grey.
Surface Finish:-
Gloss
Housing Thickness:-
12mm ( main module ) 25mm incl. Connectors.
Unit size:-

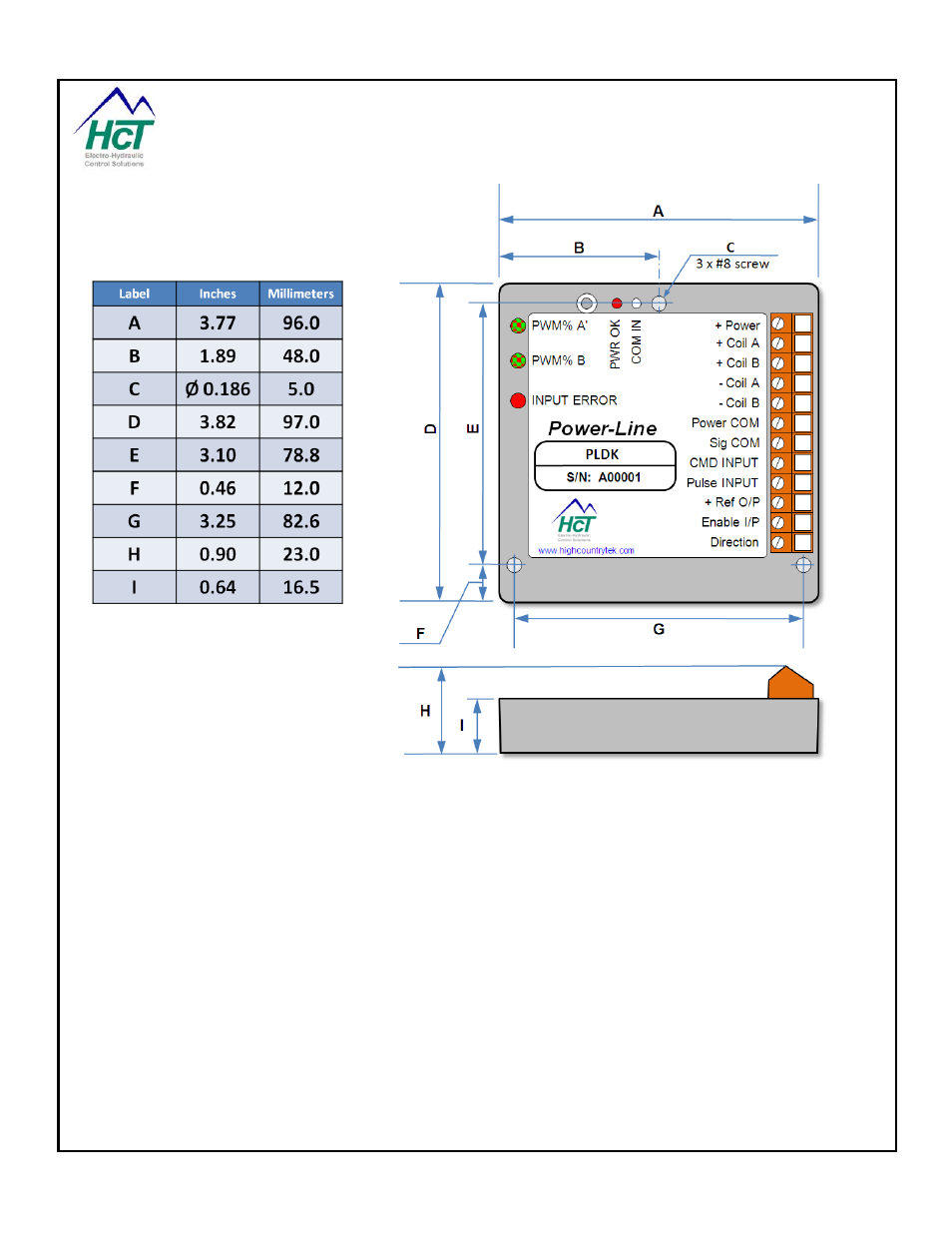

See above size detail drawings.
Unit Weight:-
Approx.... 400 grams ( including Encapsulation material )
Wire entry:-
Via heavy duty screw type connector.
Encapsulation:-
Flame Resistant, Black , Two Part Epoxy Resin.
Mounting:-
Via through holed ( 3 ) suitable for No. 8 ( 5mm ) screw .
Temperature range:-
- 40 to +85 degrees Centigrade ( operational )
