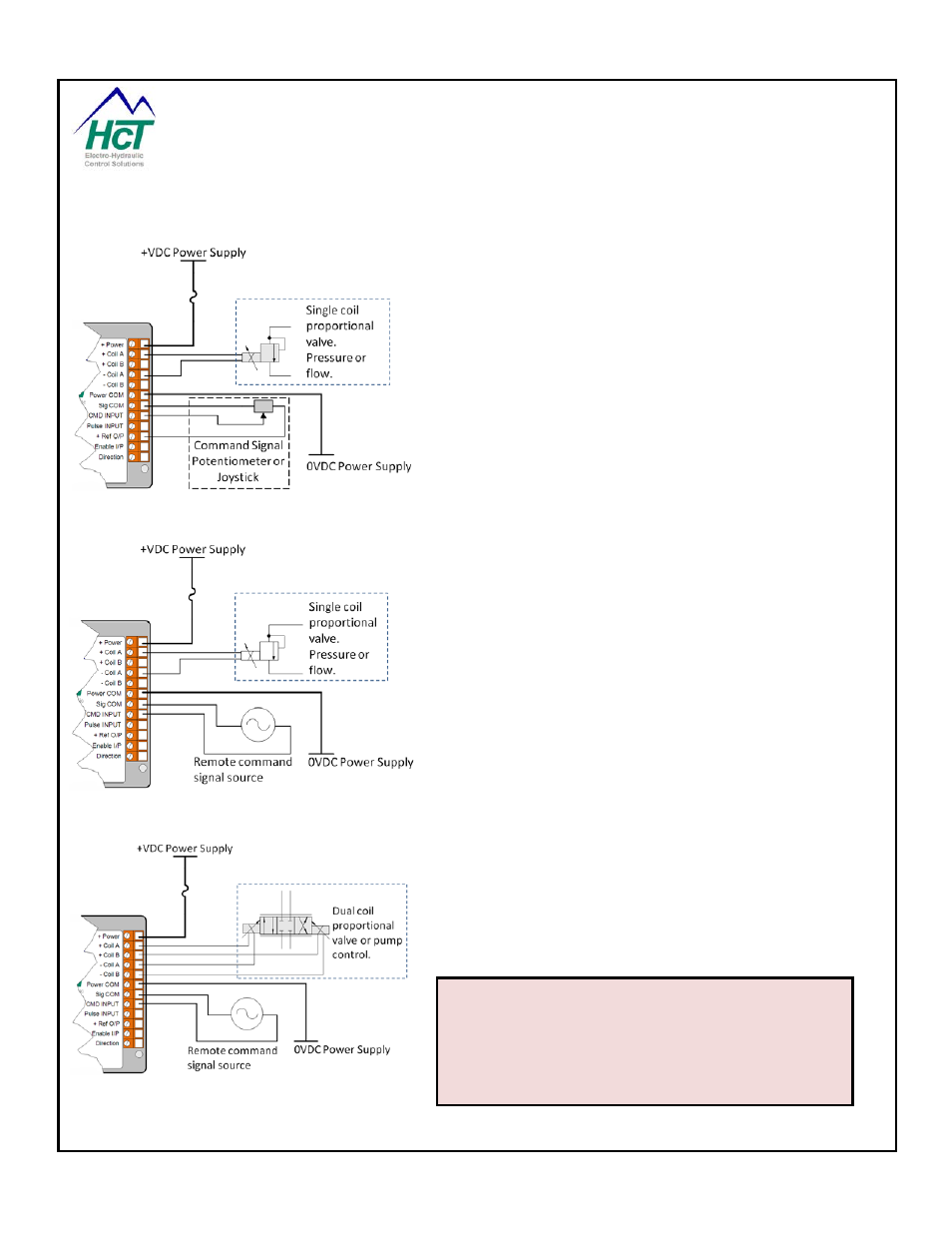

Application Connection Examples:
This first example shows how the controller can be used in a
single proportional valve control application.
The command is coming from a manual source, either a
potentiometer or joystick as shown here.
This example shows how the controller can be used in a single
proportional valve control application.
The command is coming from a remote signal source, possibly
another machine controller
This example shows how the controller can be used in a Dual
proportional valve control application.
The command is coming from a remote signal source,
possibly another machine controller
IMPORTANT NOTE – DUAL COIL OPERATION:
The output of either ‘A’ or ‘B’ output will go from the
respective ‘I Min’ setting to ZERO (0mA ) when crossing
through command mid-point. The valve outputs do NOT
jump from one I Min to the other.
