PowerLine System Controller User Guide
Page | 21
PowerLine User Guide

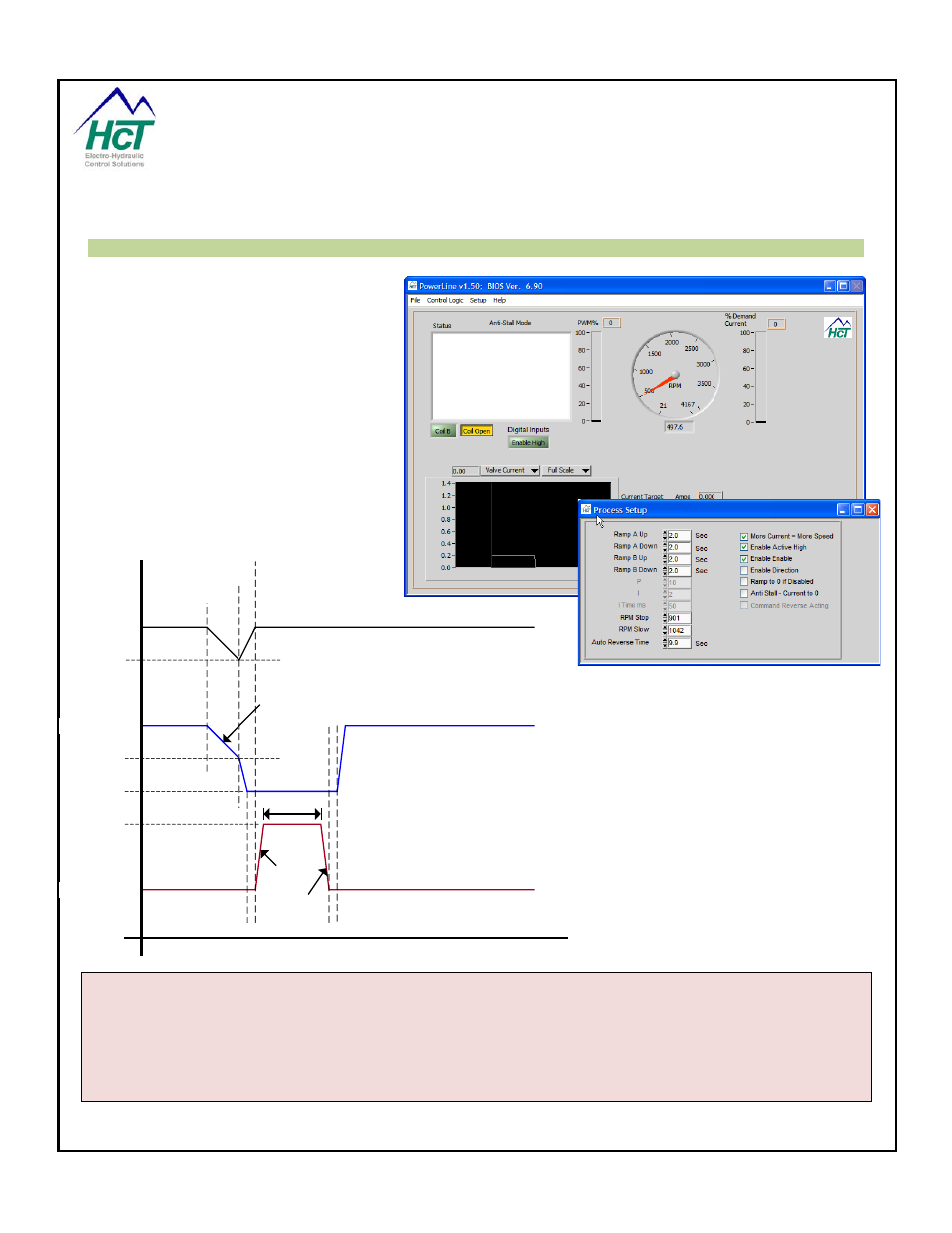

Horse Power Limiter & Anti Stall Mode with Reverse
Selection from Menu ->
Control Logic -> Anti-Stall Mode with Reverse
The PowerLine controller has a new useful
function that combines Anti-stall with a
reverse feature.
This feature will allow the user to set up the
anti-stall as normal with ‘SLOW’ and
‘STOP’ limits, with the difference being that
if the monitored RPM reaches the ‘STOP’
limit, the controller will turn the PWM% A
output fully off, then turn the PWM% B on
to offer a reverse feature.
The ramps used for the PWM% A and
PWM% B are set in the process setup
window as shown here.
IMPORTANT NOTE: Reverse feature ON/OFF setting
The reverse feature is turned OFF by setting the ‘Auto Reverse Time’ to 0 (ZERO) seconds.
The auto reverse feature is turned ON if there is any time entered in the ‘Auto Reverse Time’ box.
The minimum reverse time is 0.5 seconds while the max is ~85 seconds.
RPM
PWM% A
PWM% B
100mS
Dwell
100mS
Dwell
‘STOP’
Setpoint
Output A to
ZERO
Normal RPM level
PWM% A – Full ON
PWM% B – Full OFF
Auto Reverse
Time
Ramp
PWM% A
UP setting
Ramp
PWM% B
DOWN
setting
Ramp
PWM% B
UP setting
Ramp set
by rate of
RPM
decline
‘SLOW’
Setpoint
