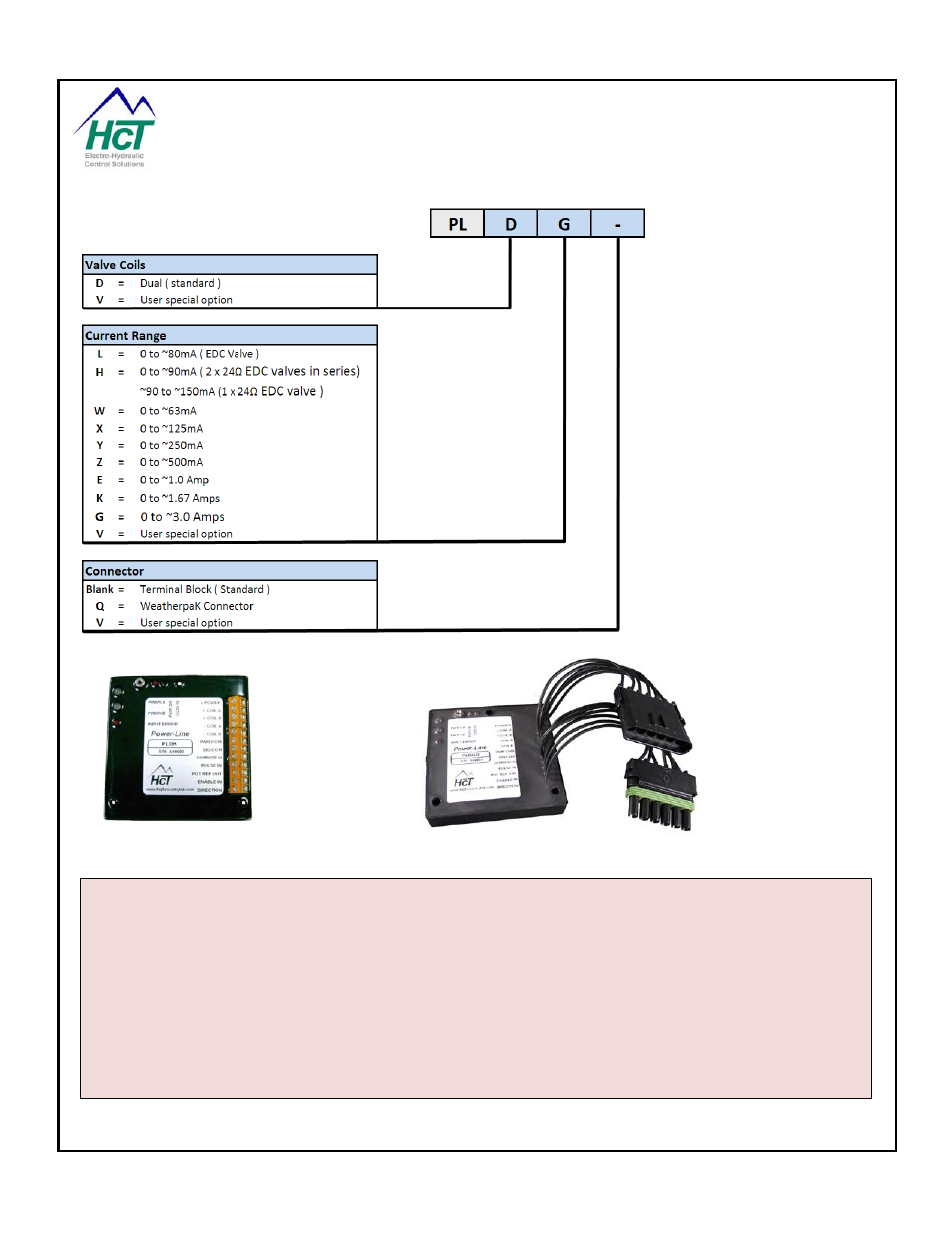

Ordering Guide:
NOTE: Manual Control Potentiometers
The PowerLine controller is no longer supplied with a potentiometer.
Please contact our customer service department to order these items separately:
Potentiometers available are:
‘N’ = Conductive film potentiometer, 10K
Ω, non weatherproof – plain plastic adjustment knob
‘X’ = Conductive film potentiometer, 10K
Ω, weatherproof – numbered bezel and adjustment
knob
Valve Coils:
The standard is for DUAL coil output,
with single coil control being selected
through the set-up software.
Current Range:
The standard in-stock current range is
250mA to 3000mA with 3mA
resolution. ‘V’ option is user specific –
please contact factory.
Connector:
The PowerLine comes with the
integral 12 way terminal block as
standard.
The ‘Q’ option offers a 12 way
WeatherPak connector on 6 inch
leads.
The ‘V’ option is a user specific
connector – please contact factory.
PowerLine
controller shown
here with
standard 12 way
screw terminal
connector
PowerLine controller
with optional
Weatherpack
connectors – use the ‘Q’
connector option when
ordering
