Welcome to CarChip

Trip Log Report

The Trip Log Report view displays expanded summary trip information for each trip recorded on the
CarChip data logger.
To view the Trip Log Report:

1. Click on the Trip Log View icon or select Trip Log from the View menu. The Trip Log Summary

view displays.

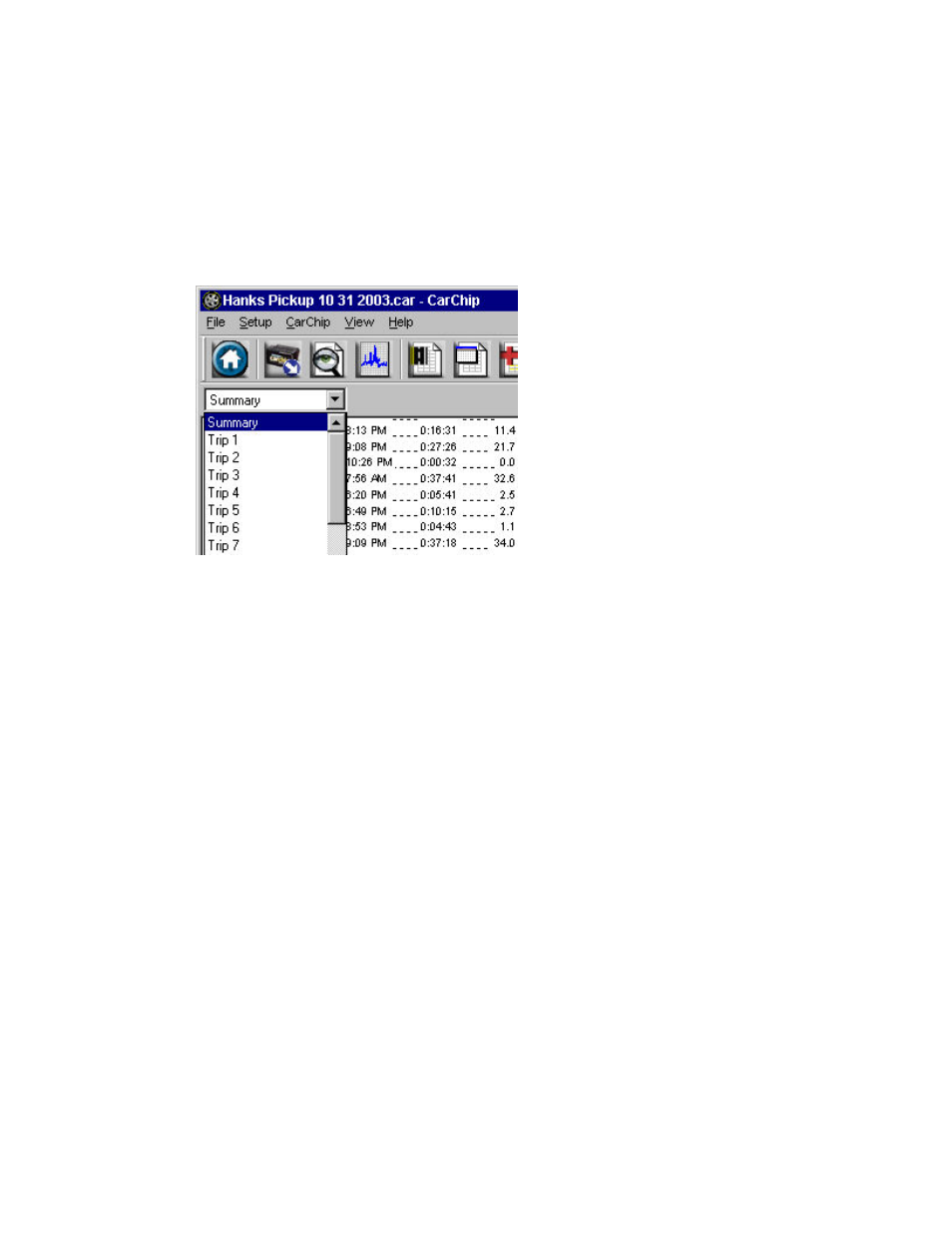

2. Click on the Trip Log drop-down box to display a list of all trips recorded in the Trip Log. The drop-

down list box always begins with the Summary view, with each recorded trip listed in order below
the Summary.

3. Select one of the trip records listed in the drop-down box by clicking enter once you have selected

the desired trip. You can also scroll through trip records by using the Up and Down cursor keys.

The Trip Log Report view displays.
