Installing the Daytime Fan Kit
4
3. Remove the rain collector cone from the ISS
base by rotating the cone counter-clockwise.
When the cone’s latches line up with openings
in the base, you can lift the cone off. The cone
fits in the base tightly and may require extra
pressure to remove the first few times.
Steady the ISS base between your knees when
removing the cone
4. Remove the three 8-32 x 4 '' screws
holding the radiation shield plates
together.
5. Save these three screws and
washers, and separate out the
radiation plating.
Depending on the placement of the
Temperature/Humidity sensor, you
may need to reorient the sensor
before assembling the lower section
of the radiation plating. See Check
Temperature/Humidity Sensor
Orientation on page 5 for more
information.

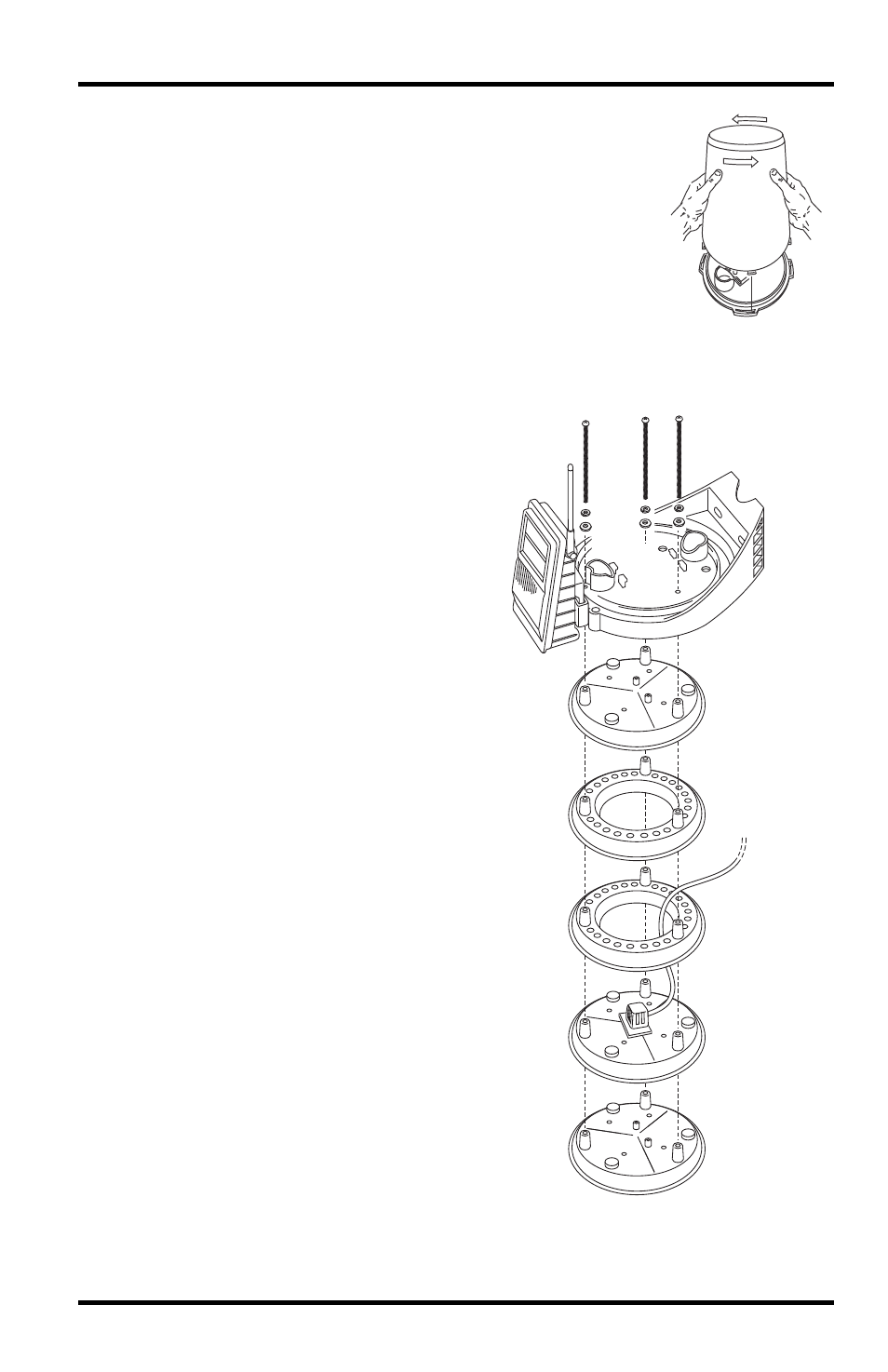

Twist to Open
Remove the Rain
Collector Cone
Screw
Plates
Rain Collector ase
Temperature/
Humidity
Sensor
Lock
asher
Flat
asher
Standard Radiation Shield Assembly
Note: Placement of the Temperature/
Humidity Sensor may vary.
