Mounting on a vertical surface

1. With a 3/16ʺ (5 mm) drill bit, drill two holes approximately 2ʺ (50 mm) apart.

Use a carpenter’s level to ensure the holes are level.

2. Drill two more holes

7‐1/32ʺ (17.9 cm)
below the upper
holes.

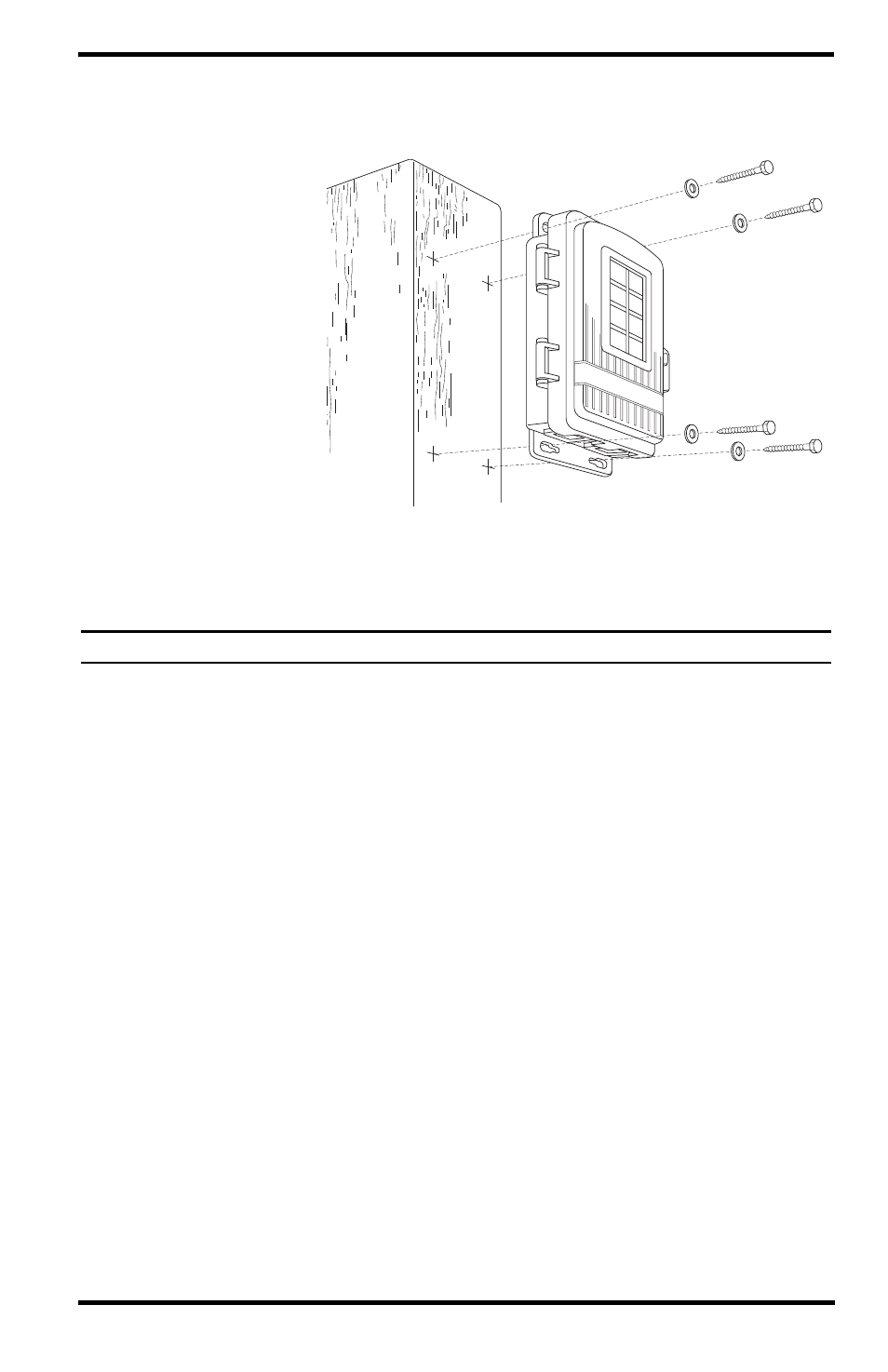

Flat

Washer

Lag

Screw

3. Insert the 1/4ʺ x 1‐1/2ʺ

lag screws through
the flat washers, and
through the holes at
the top of the shelter
into the post. Using
an adjustable wrench
or 7/16ʺ wrench,
tighten the lag
screws.

4. Insert the 1/4ʺ x 1‐1/2ʺ

lag screws through the flat washers, and through the holes at the bottom of
the shelter into the post. Using an adjustable wrench or 7/16ʺ wrench, tighten
the lag screws.

Note:

Remember to position the shelter so the solar panel has maximum exposure to the sun.
