Wireless Temperature/Humidity Station
Powering the Fan
The Fan-Aspirated Temp/Hum Station fan is solar-powered and uses batteries for over-
night power storage.
Connecting Solar Power
1.
Locate the Junction Board on the fan plate (See below).
2.
Connect the solar power cable to the VSOL connector on the Junction Board.
3.
Secure the cables to the fan plate with the supplied cable clamp.

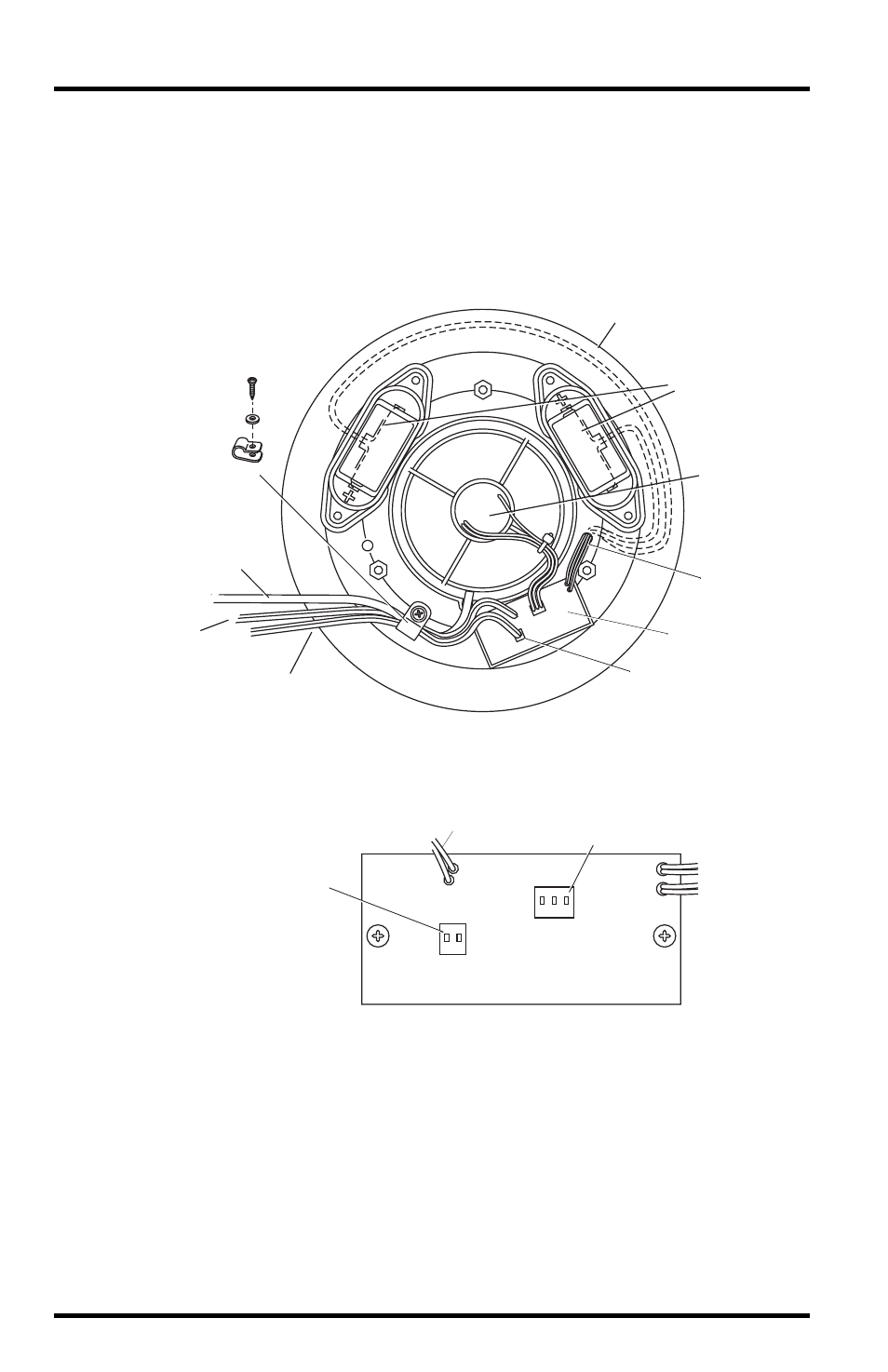

Fan Plate
Junction Board
Battery
Wires
Sensor Cable
Solar Panel Cable
Solar Panel Connector
#4 x 1/2" Screw
#4 Flat Washer
Cable Clamp
SIM Power Cable
Fan Motor
Battery
Compartments
Solar Power Cable Routing
MOTOR
+VSOL
Fan Connector
Solar Power Connector
SIM Power Cable
Junction Board Connections
