Preparing the Solar Radiation Shield
Page 3
Preparing the Solar Radiation Shield
Disassembling the Station

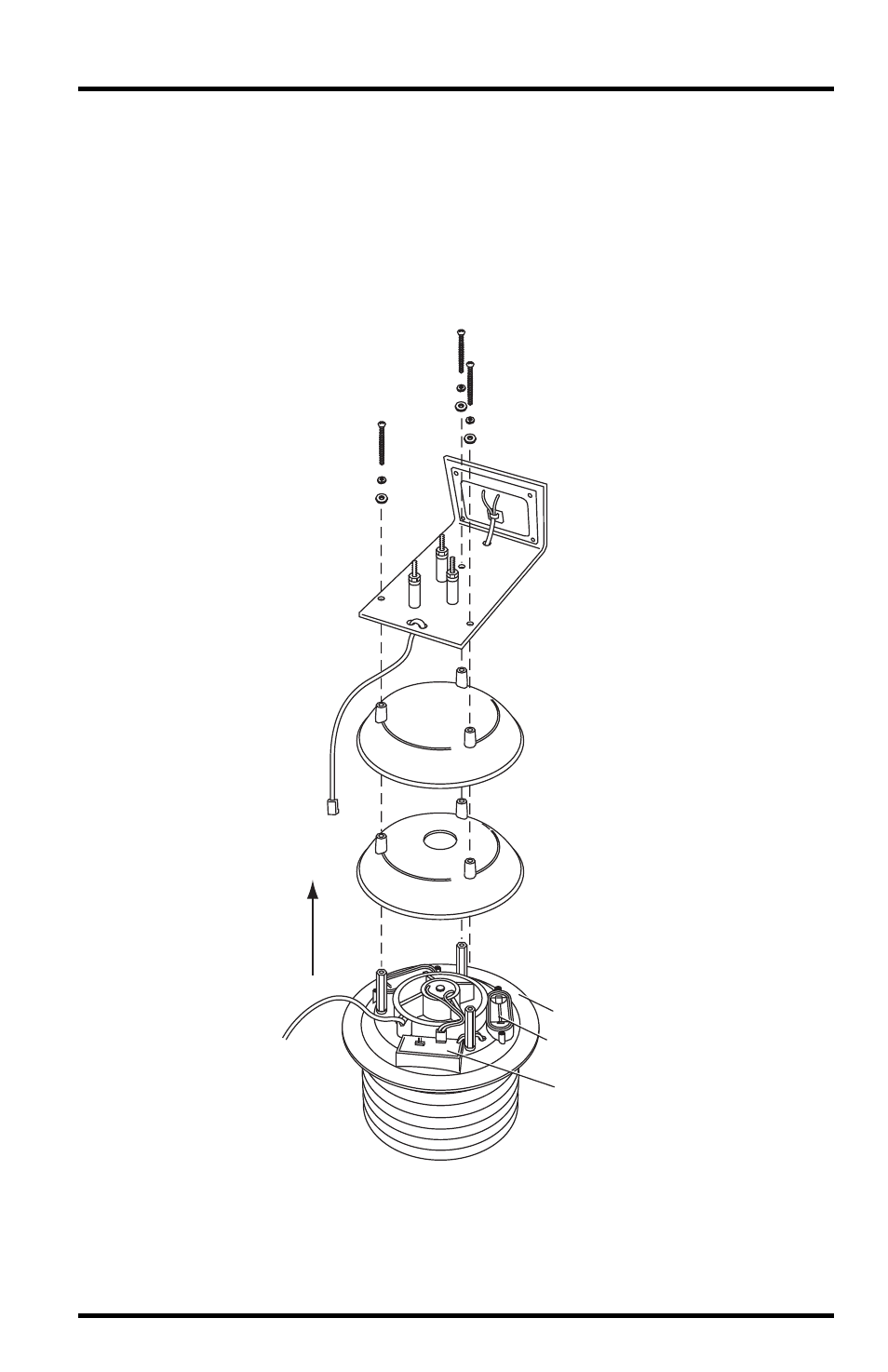

Open up the station by removing the mounting bracket as shown in the following illus-
tration.
1.
Remove the three (3) screws connecting the mounting bracket to the radiation
shield.
2.
Lift the mounting bracket off of the radiation shield.
3.
Remove the top two (2) radiation shield plates to expose the fan plate and junction
board.
2" Screws (3)
Lock Washers
Flat Washers
Closed Plate
(no hole in center)
Open Plate
(hole in center)
Solar Power
Cable
Sensor
Cable
Fan Plate
Battery Compartment
Mounting Bracket
Junction Board
Direction
of air flow
Removing the Mounting Bracket
