Mounting the Station

Page 13

Tighten four set of the washers and hex nuts until the mounting bracket is firmly
mounted on the pole.

Hold the SIM housing against the pole near the station. Put two U-bolts around the
pole and insert the ends through the holes in the back of the mounting bracket.

Secure the SIM housing using 1/4" flat washers and 1/4" hex nuts.

1/4" Flat Washers

1-1/2" U-Bolts

1/4" Hex Nuts

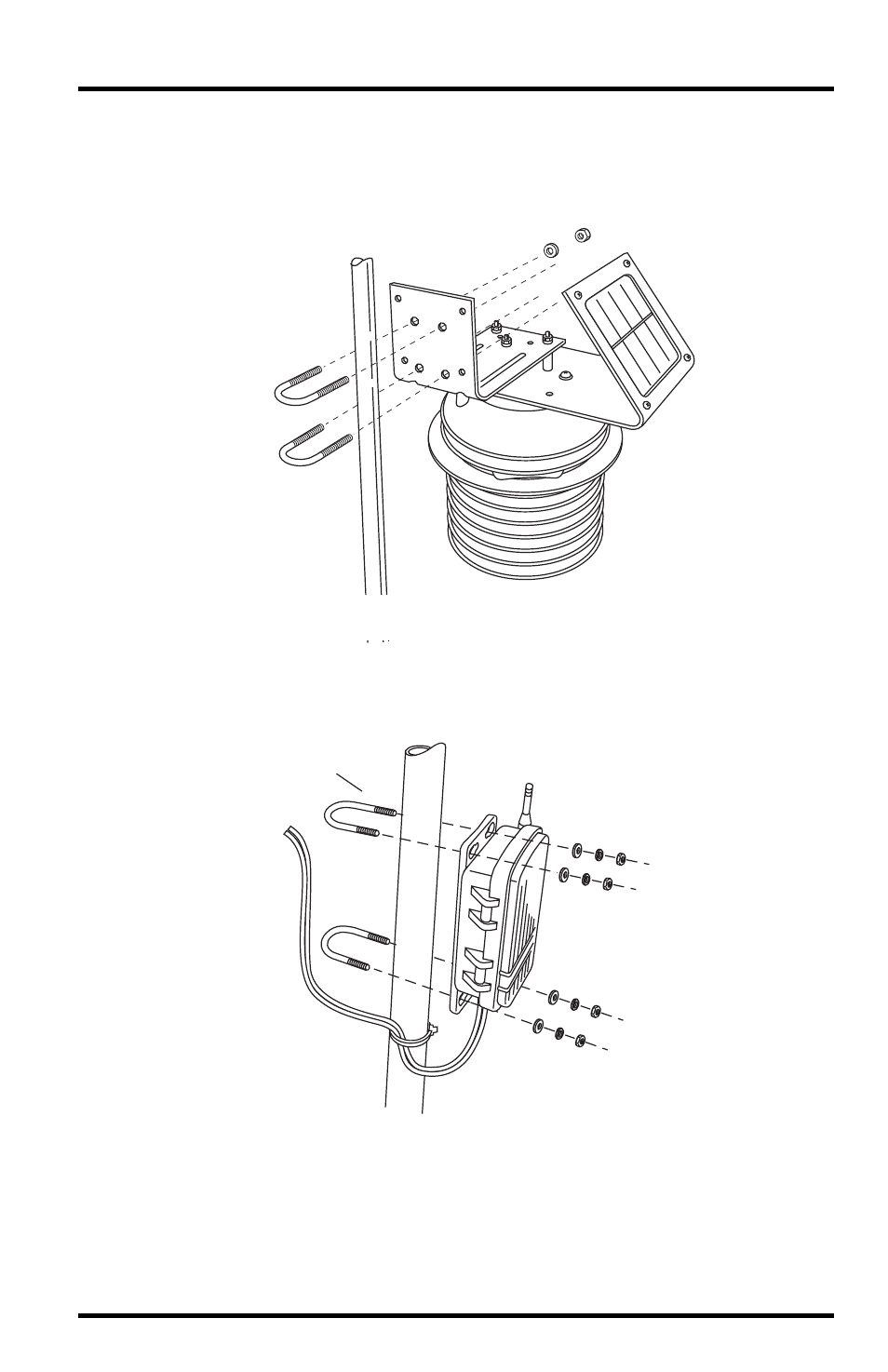

Mounting the Radiation Shield on a Pole

U-Bolts

Temp/Hum

and

Solar Power

Cables

1/4" Flat Washers

1/4" Lock Washers

1/4" Hex Nuts

Mounting the SIM Housing on a Pole
