Wireless Temperature/Humidity Station
Mounting on a Pole or Mast
For best results, mount to a pole having an outside diameter between 1" and 1-1/4"
(25 – 31 mm).
1.
Slide the stud ends protruding from the top of the radiation shield through the holes
on the mounting bracket.
2.
Secure the radiaition shield to the mounting bracket using a #8 flat washer, #8 split
lock washer and #8 hex nut one each of the stud ends.
Tighten the hex nuts until the station is secure on the mounting bracket.
3.
Hold the mounting bracket against the pole.
4.
Put two U-bolts around the pole and insert the ends through the holes in the back of
the mounting bracket.
5.
Secure the mounting bracket using 1/4" flat washers and 1/4" hex nuts.
#8 Hex Nuts
#8 Lock Washers
#8 Flat Washers
Mounting
Bracket

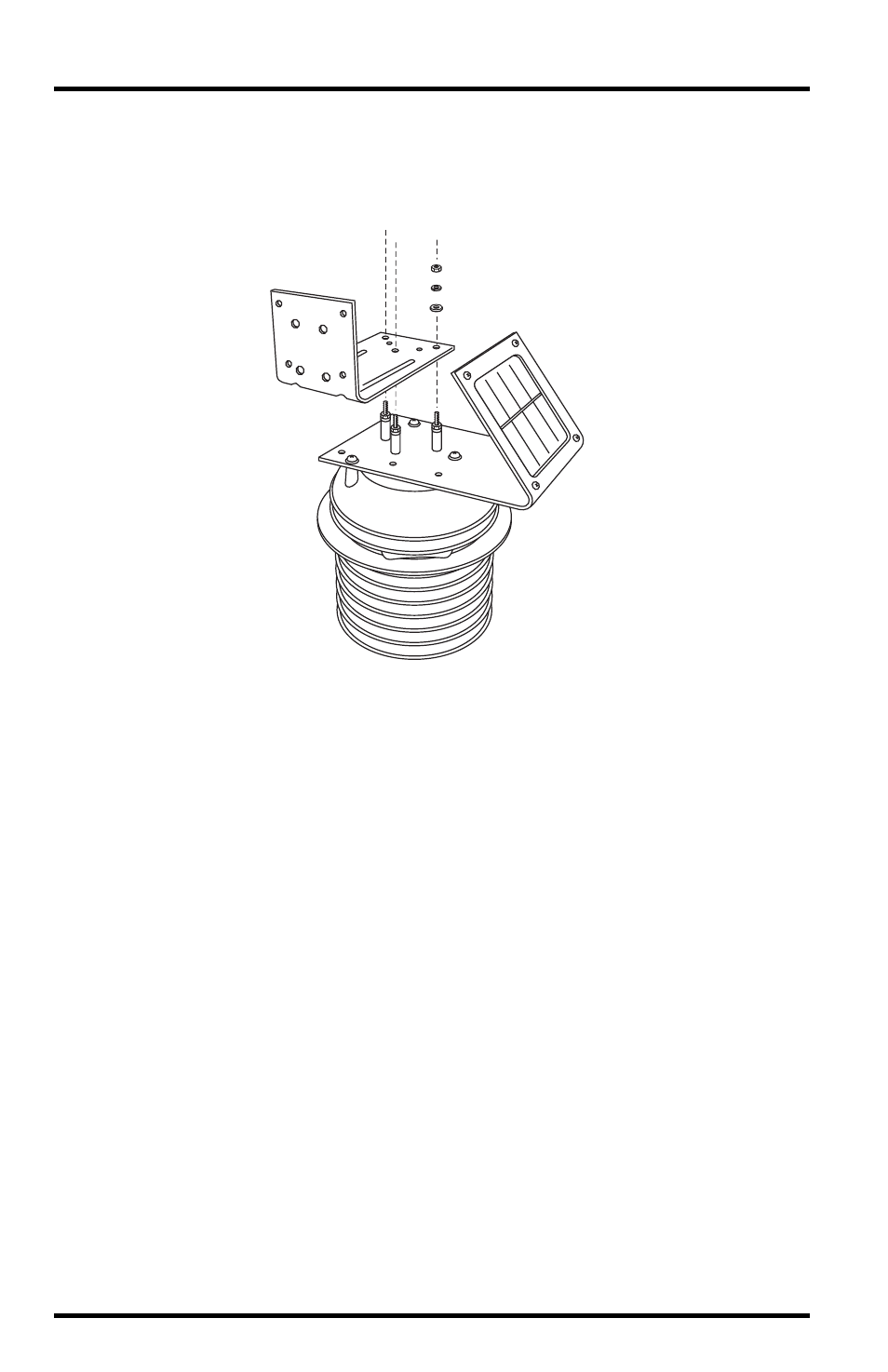

Attaching Temperature/Humidity
Station to Mounting Bracket
