Mounting the Station

Page 15

3.

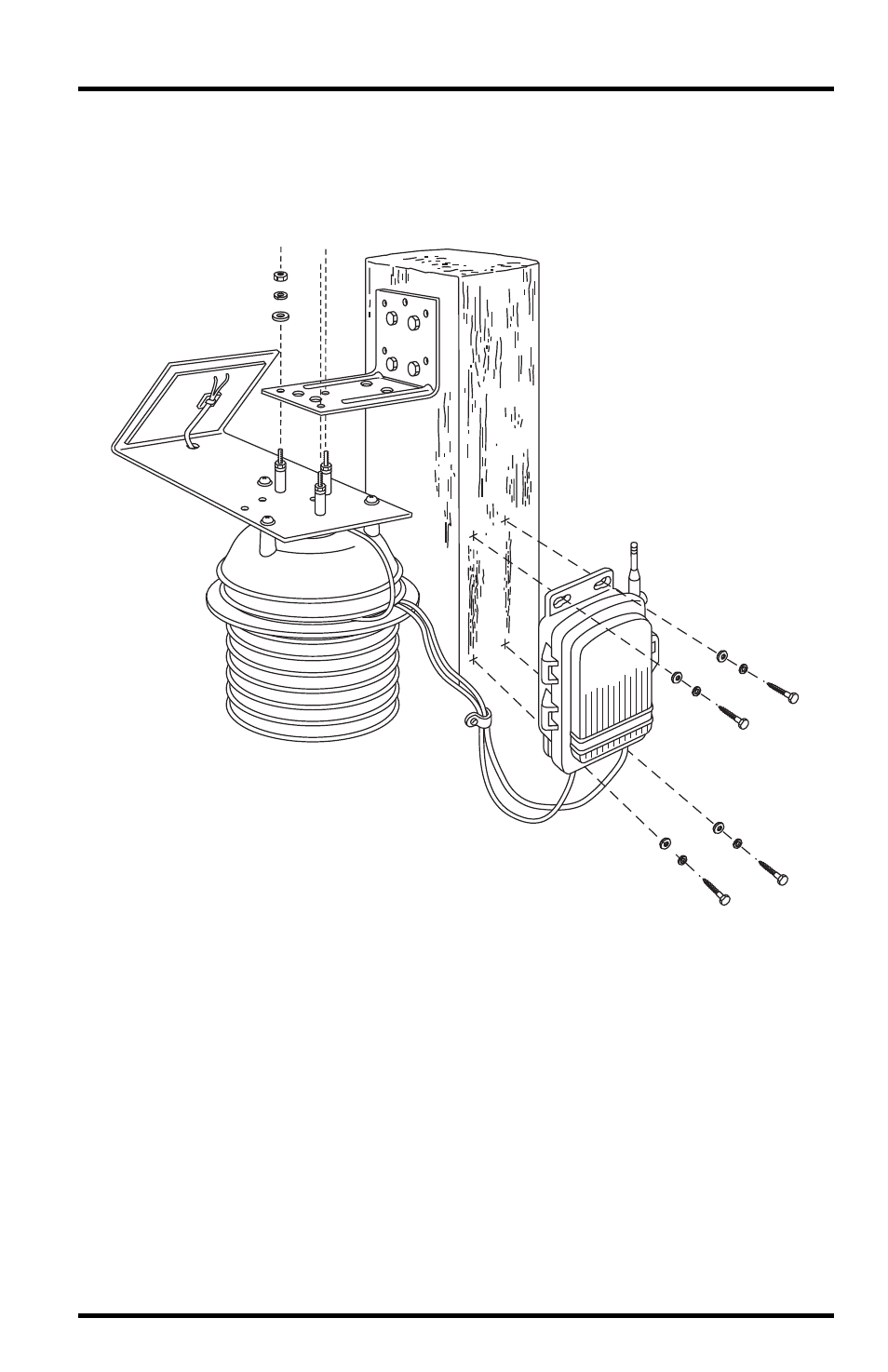

Secure the station to the mounting bracket using a #8 flat washer, #8 split lock
washer and #8 hex nut on each of the stud ends.

• Tighten the hex nuts until the station is secure on the mounting bracket.

#8 Hex Nuts

#8 Lock Washers

#8 Flat Washers

1/4" Flat Washers

1/4" Lock Washers

1/4" x 1-1/2" Lag Screws

Mounting to a Post
