Mounting Transmitter Shelter on a Pole
1. While holding the shelter against the pole, place a U-bolt around the pole and
through the two holes on at the top of the shelter.
2. Place a flat washer, a lock washer and a hex nut on each of the bolt ends.
3. Using an adjustable wrench or 7/16" wrench, tighten the nuts.
M
OUNTING
T
RANSMITTER
S
HELTER
ON
A
P
OLE
4. Place the second U-bolt around the pole and through the two holes at the bottom of
the shelter.
Put a flat washer, a lock washer, and a hex nut on each bolt end, and tighten
the hex nuts.
Note: Remember to position the shelter so the solar panel has maximum exposure to the sun.

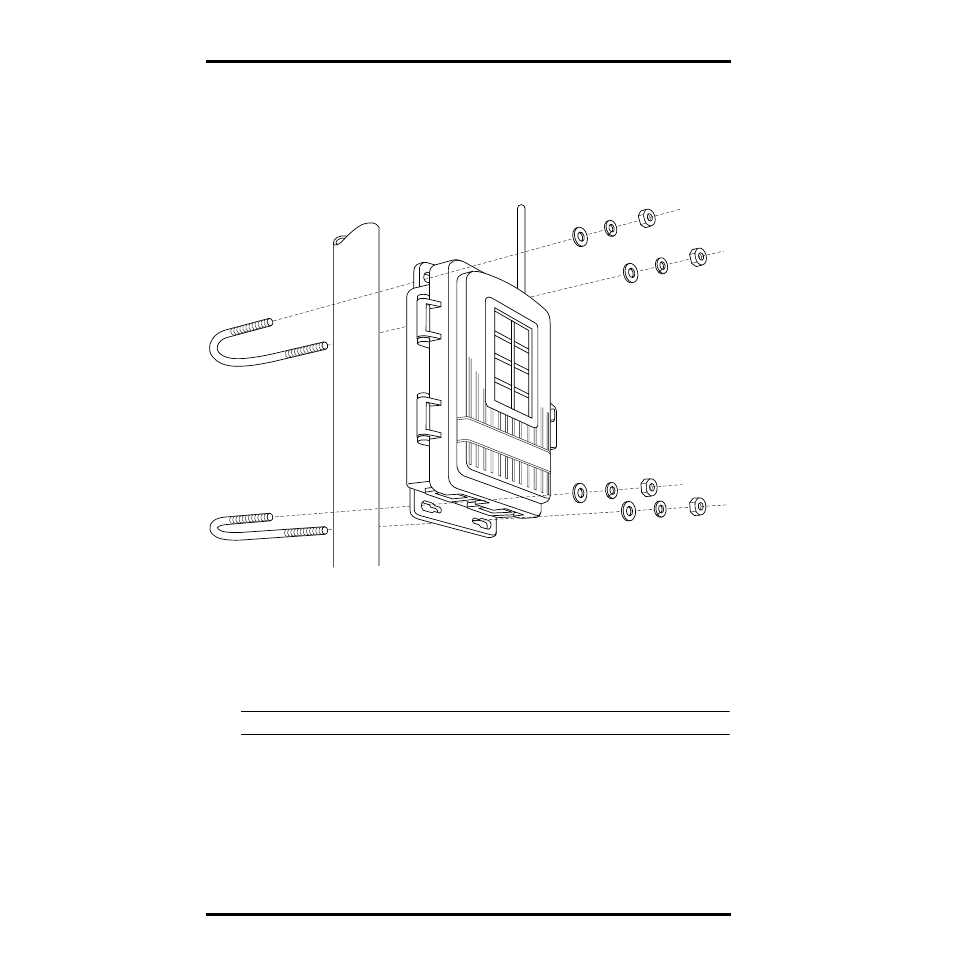

Flat
