JKS2000 / JKS2001 / JKS2002 JKS Quicker Disconnect Installation 2 Page

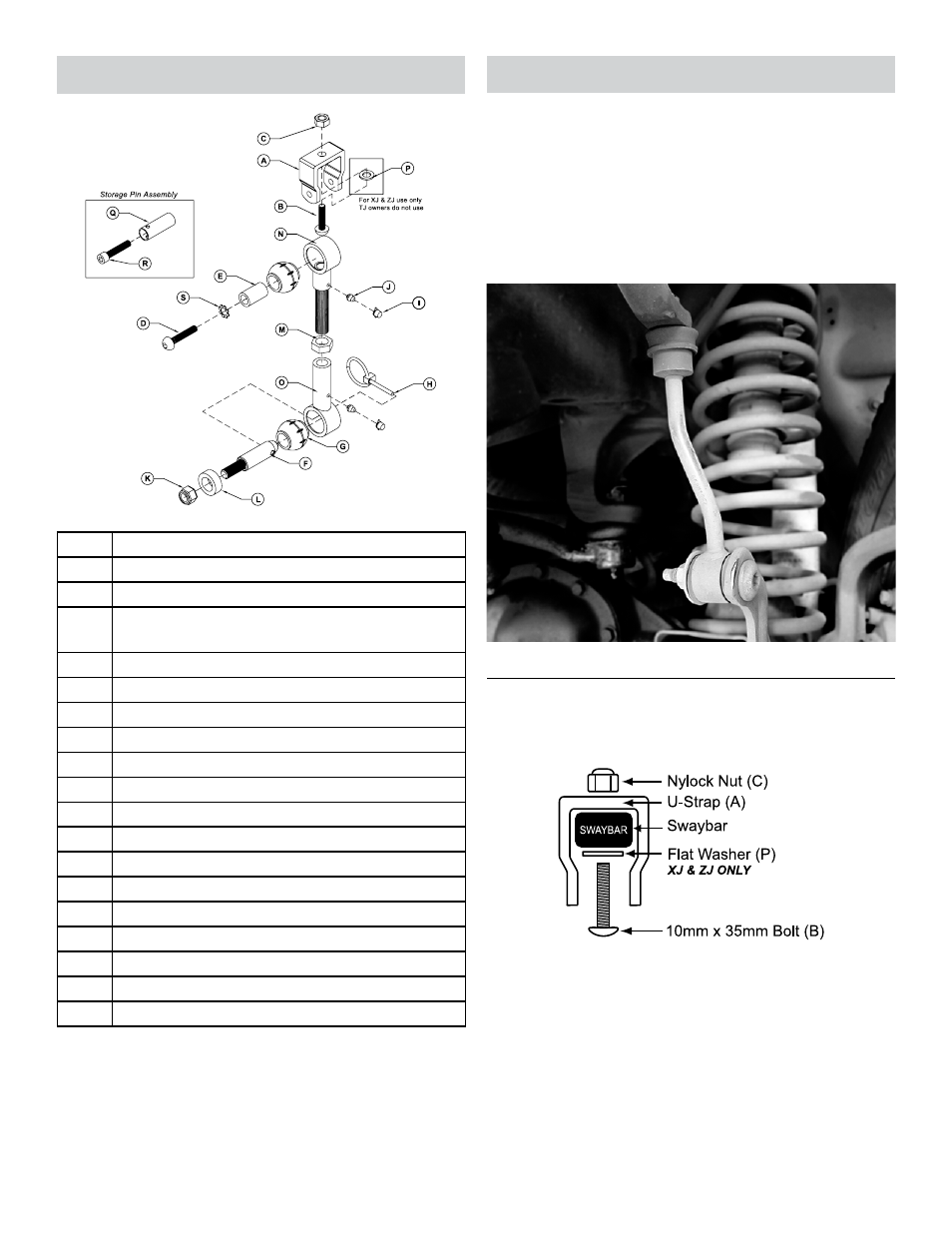

Parts
A U-Strap
B 10mm x 35mm Button Head Bolt
C 10mm Nylock Nut
D 10mm x 50mm Button Head Bolt (with factory-applied
thread locking compound)
E 1.25” Aluminum Sleeve
F Stainless Steel Post
G Spherical Bushing
H Click Pin
I Grease Zerk Cap
J Press-In Grease Zerk
K 1/2” NF Nylock Nut
L Offset Polyurethane Spacer
M 5/8” Jam Nut
N Upper Male Threaded End
O Lower Female Threaded End
P Flat Washer
Q Storage Pin
R 5/16” x 1-1/2” NC Allen Bolt
S 10mm External Tooth Lock Washer
Installation
‰ 1. REMOVE ORIGINAL EQUIPMENT (OE)
SWAYBAR LINKS\
 Remove front swaybar drop links and mounting
hardware per the factory service manual instruc-
tions for your vehicle. HINT: If difficult to remove,
use special factory removal tool PN MB991113
(Miller Special Tools, 800-801-5420) or similar tie
rod end removal tool.
‰ 2. INSTALL UPPER U-STRAPS
 Mount U-Strap (A) on top of swaybar with thread-
ed leg of U-Strap positioned inboard.
IMPORTANT: U-Strap must be mounted ABOVE
swaybar, NOT BELOW
 Insert 10mm x 35mm Button Head Bolt (B) and
Flat Washer (P) – only if required – upward
through swaybar and U-Strap (A). Secure with
10mm Nylock Nut (C).
