JKSOGS960 /JKSOGS962 JKS Steering Brace System Installation 4 Page

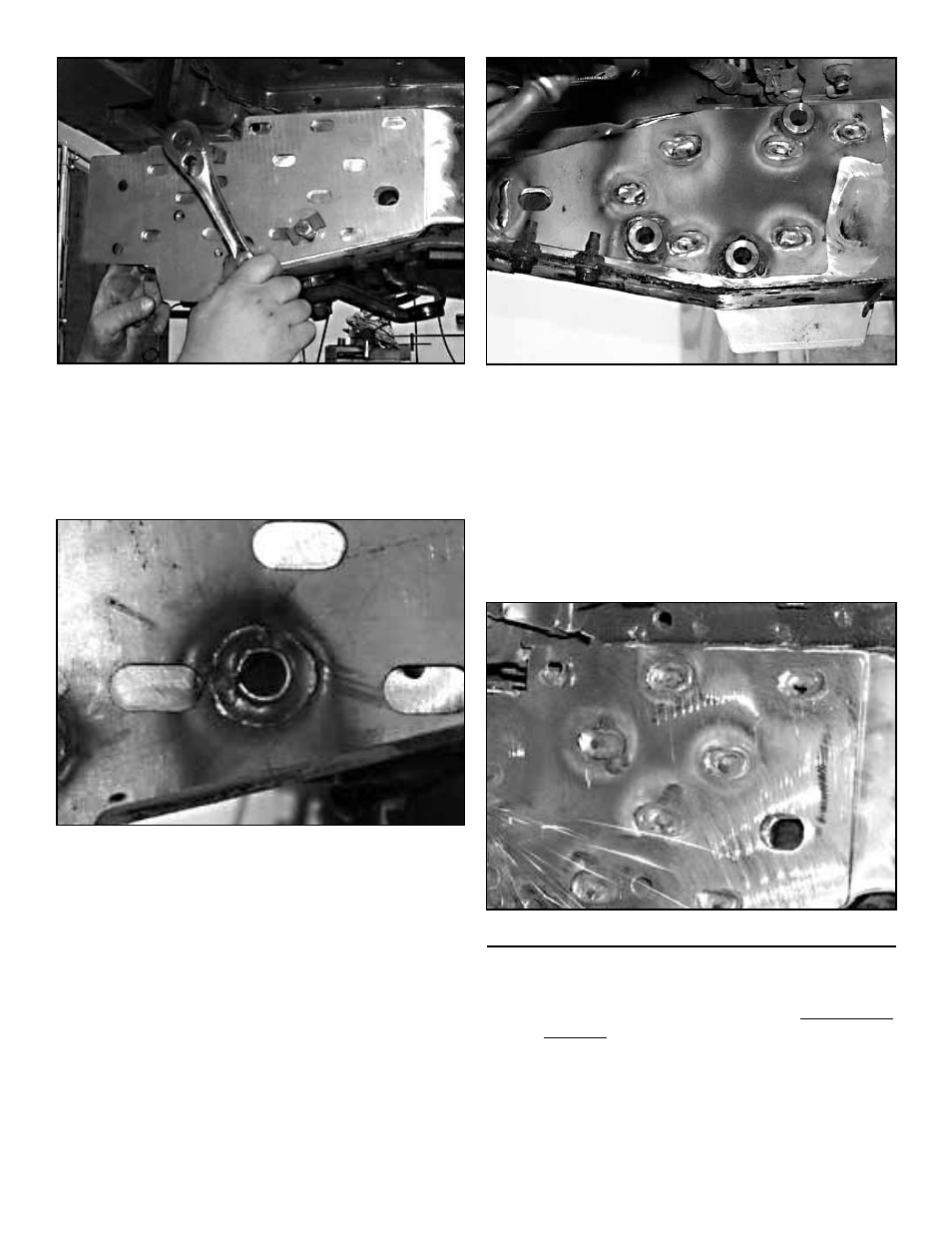

Z Tack-weld all three (3) Support Sleeves (C) to the
Outer Chassis Plate (A).
Z Working with one mounting hole at a time, remove
a Steering Gear Mounting Bolt (D) and finish weld-
ing the Support Sleeve (C) to the Outer Chassis
Plate (A), making sure any voids are completely
filled.
Z After Support Sleeves (C) have been welded to the
Outer Chassis Plate (A), secure the steering gear
out of the way to gain access to the Inner Chassis
Plate (B).
Z Weld the shoulder of all three (3) Support Sleeves
(C) to the Inner Chassis Plate (B).
Z Rosette weld Inner and Outer Plates (A & B) to
chassis at each slotted hole. Although not neces-
sary, Chassis Plates may also be stitch-welded
along edges for additional support. HINT: For
cleanest appearance, slotted holes can be filled
completely and sanded smooth.
Z Rosette weld the 3/4" Solid Rod (H) to Inner and
Outer Chassis Plates (A & B).
Z Once welding is complete, grind any protruding
portion of the Support Sleeves (C) on outboard
side of chassis until completely flush with Outer
Chassis Plate (A).
Z Remove any other protrusions from surface of In-
ner and Outer Chassis Plates (A & B) until smooth
and completely flat. HINT: A power sanding/grind-
ing wheel or similar tool is useful for smoothing
chassis.
‰ 4. MOUNT TOW HOOK BRACKET
Z Position the Tow Hook Support Bracket (G) against
the underside of chassis rail with the slotted holes
facing up. Clamp the non-slotted side of bracket to
the Outer Chassis Plate (A).
