2-4

2.3 MOUNTING PROCEDURES – Continued

WARNING

Be sure the WTM is OFF before attempting to

mount to a weapon, tripod, or helmet assembly.

Mounting to a Tripod

The WTM mounting bracket contains two screw holes with

female threading to accept a standard ¼”-20 tripod screw.

Align the threads and rotate the WTM clockwise until

securely mounted.

AN/PVS-7/14 Helmet Mount Adapter

The Helmet Mount Adapter allows the WTM to be installed

on an AN/PVS-7 / PVS-14 helmet assembly.

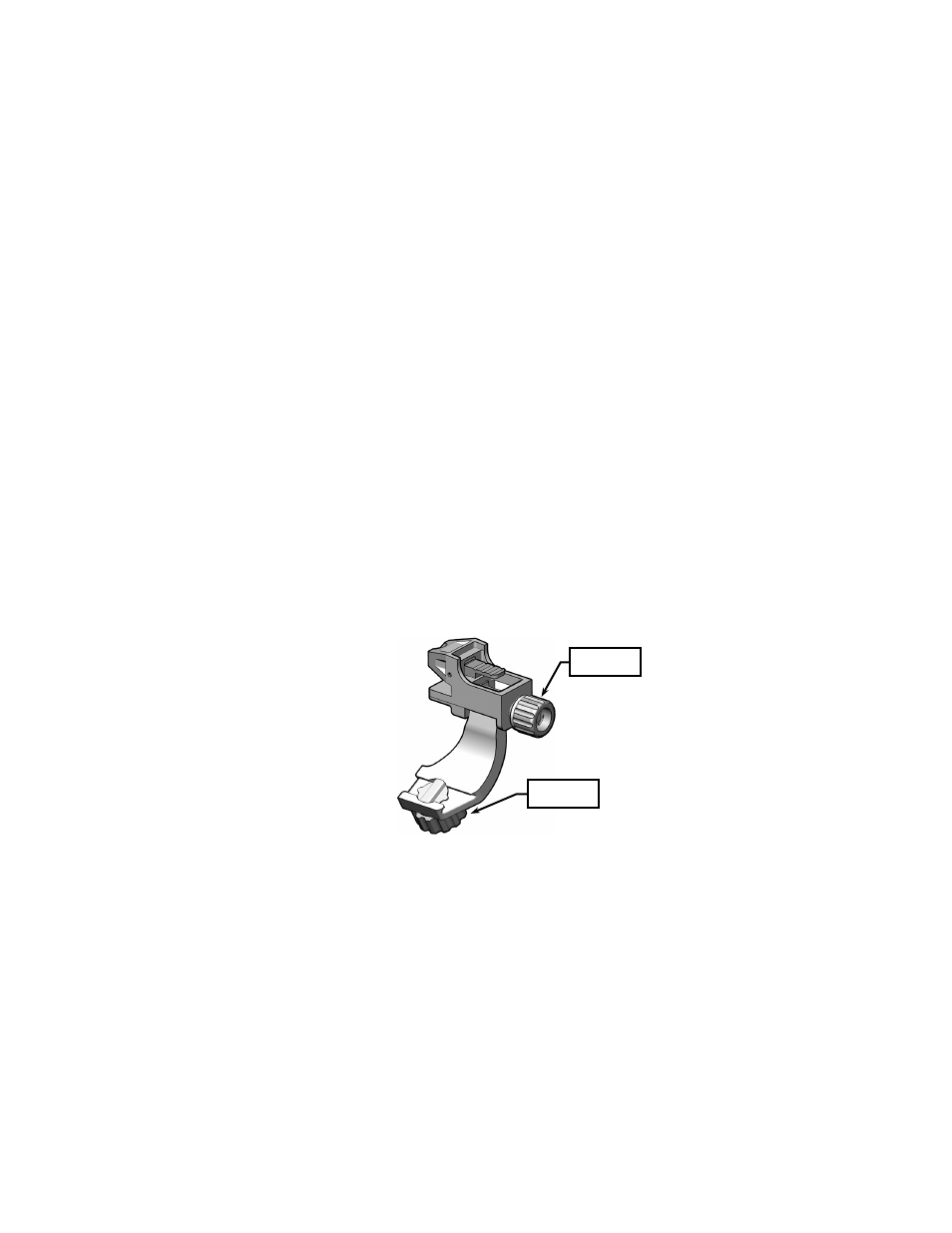

Figure 2-3 AN/PVS-7/14 Helmet Mount Adapter

RELEASE

KNOB

ADJUSTMENT

KNOB
