Permanent Installation Procedure
Permanent Installation Procedure
The Auxiliary Harness can be permanently installed within the Roof Module for uses such as powering external devices such
as a cell modem booster. The maximum power available is 1.8A. Do not connect high power devices that require more than
1.8A. (Refer to your device’s documentation for power specifications.) It can also be temporarily connected for a variety of
purposes as described in Temporary Connections and Uses on page 7.
1. Remove the Roof Module from the vehicle and place it on the work bench. Refer to your Hardware Installation Manual for
safety requirements and information on removing the Roof Module.
2. Ensure your work area is clean and safe before you start any installation procedure.
3. Check the general working condition of the Roof Module. It should be fully functional.
4. Turn off your ParaDyme system and remove the Roof Module per your installation manual.
5. Remove all the long whip antennas from the Roof Module.
6. Place the Roof Module upside down on a flat bench. Place a wood spacer block under the Roof Module at each end to
stabilize the unit and protect the GPS antennas from damage. See Figure 2.

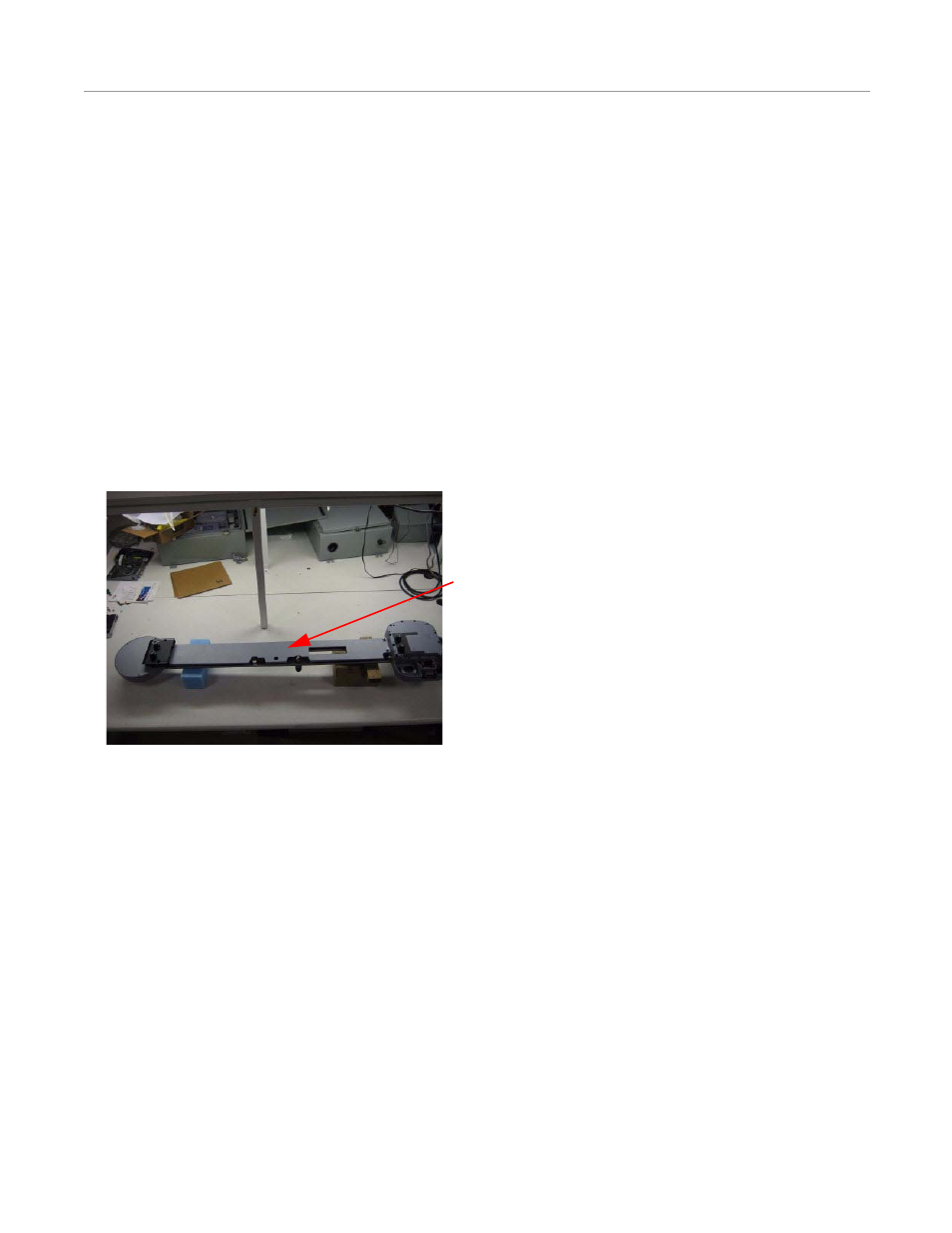

Figure 2 Roof Module Preparation for Auxiliary Harness Installation
Roof Module Extrusion
