EZ-Guide® Plus Lightbar Guidance System
Quick Reference Card
A
www.EZ-Guide.com
OPTIONAL UPGRADES
Product Details

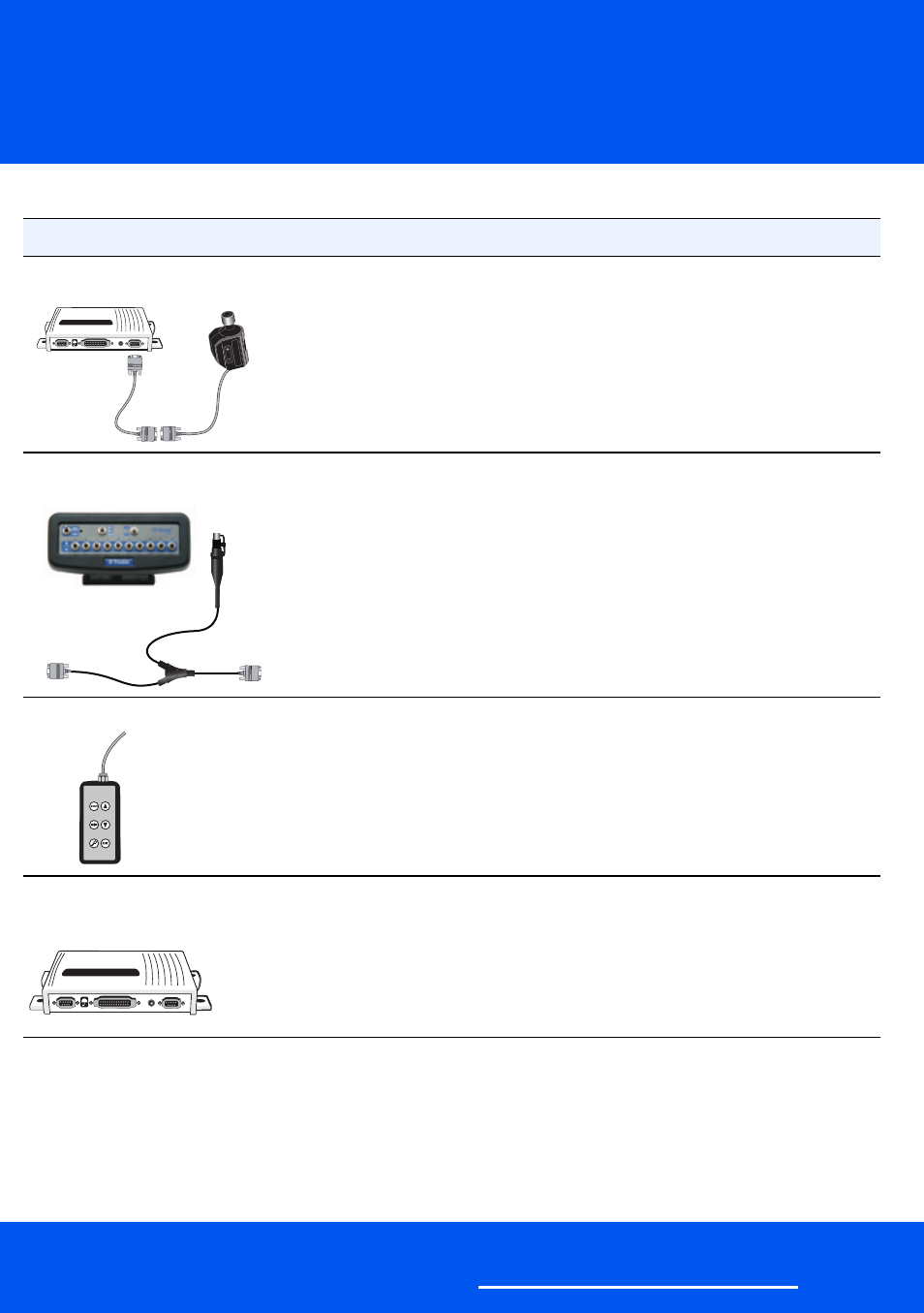

EZ-Steer assisted steering system The EZ-Steer assisted steering system steers the vehicle down field passes
using GPS guidance from the EZ-Guide Plus lightbar guidance system, a
controller, and a motor mounted to the steering column of the vehicle.
To configure the EZ-Steer system, set the options in the EZ-Steer menu.
For details, refer to the EZ-Steer System Quick Reference Card and Reference
Guide.
EZ-Boom 2010 automated
application control system The EZ-Boom 2010 automated application control system enables you to
control spray equipment that is either attached to the vehicle or towed.
The EZ-Boom system provides advanced flow control features and automatic
control of up to ten boom sections. You save on chemical costs when you apply
the correct amounts in exactly the right places.
To configure the EZ-Boom system, set the options in the EZ-Boom menu.
For details, refer to the EZ-Boom 2010 Automated Application Control System
Quick Reference Card.
Remote control The remote control is an optional accessory that you can purchase separately.
For information, contact your local EZ-Guide Plus system reseller.
T2 terrain compensation
technology The EZ-Guide Plus system firmware version 3.00 and later can use terrain
compensation information from an EZ-Steer controller that includes T2 terrain
compensation technology.
Install the EZ-Steer controller on the floor with the connectors pointing forward,
on the floor with the connectors pointing backward, or on the rear wall with the
connectors pointing to the floor.
To configure terrain compensation, set the options in the Terrain Comp. menu.
