EZ-Guide® Plus Lightbar Guidance System
Quick Reference Card
A
www.EZ-Guide.com

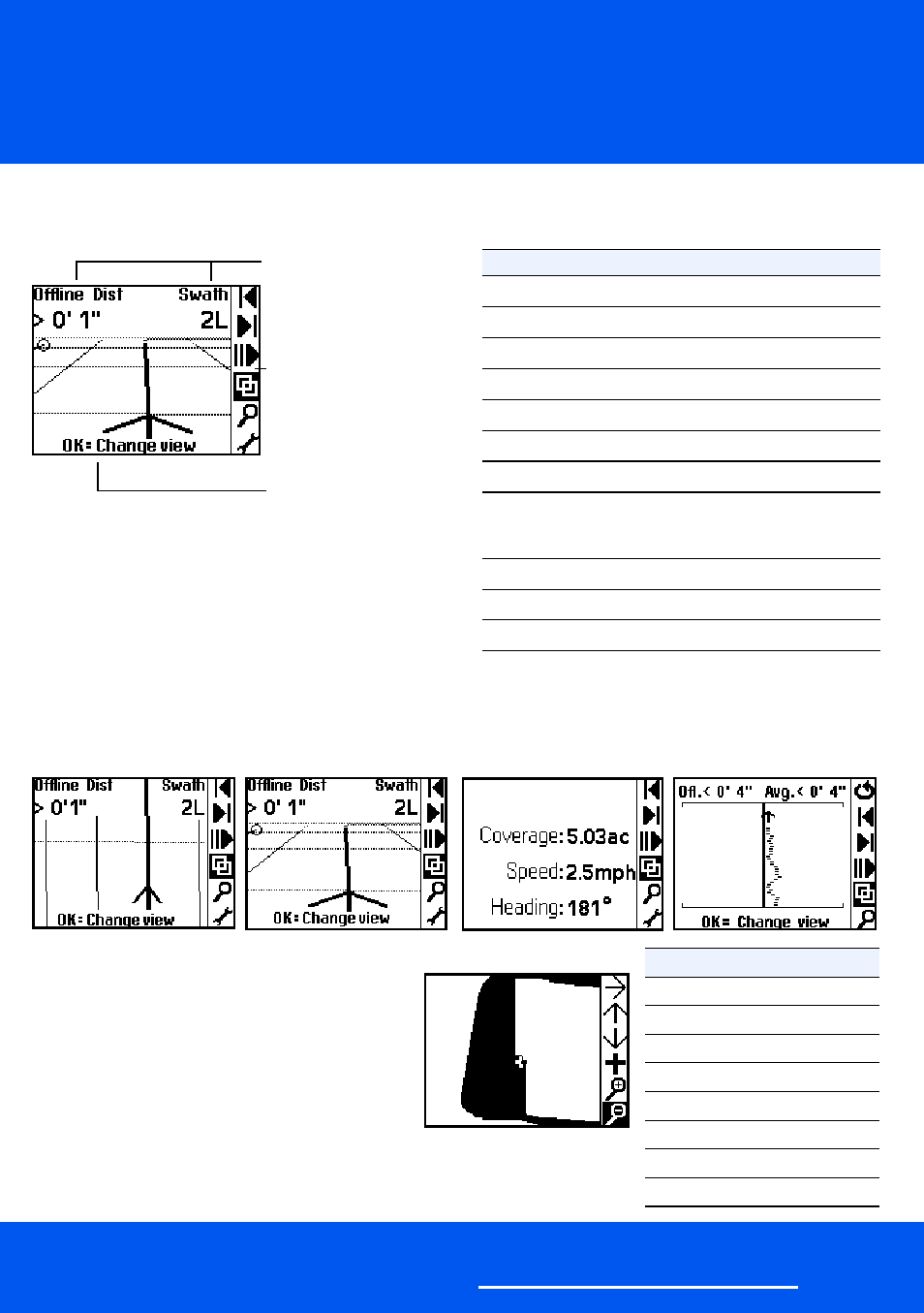

USER INTERFACE
VIEWS
Select
4
to change between the five views shown below.
Action icon Description
9 Resets guidance
A Sets Point A
B Sets Point B
8 Starts headland
D Sets final headland
1 Nudges guidance line left
3 Nudges guidance line right
2 Pauses/Resumes offline guidance and
gets guidance to and from the pause
point, for example, when refilling
4 Changes views
5 Zooms screen
7 Goes to main configuration menu
Plan map Perspective map Status Offline
Icon Description
5 End zoom mode
I
Move view left
J
Move view right
K
Move view up
L
Move view down
+ Center on vehicle
Zoom in
Zoom out
Action icon bar
Tips
Status text
Configure options from
Lightbar / Status Text.
To select an icon, press
u or D and then press o.
Context-sensitive
Summary
The Summary screen shows area covered,
either when the EZ-Boom 2010 system, the
EZ-Steer system, or an external spray switch is
connected, or everywhere the vehicle drives.
– To configure which type of covered area is
shown, select Lightbar / Display Config and
then adjust the Path Display setting.
– To access the zooming and panning features shown in the table, on the
Summary screen select the
5
action icon.
