EZ-Guide® Plus Lightbar Guidance System
Quick Reference Card
A
www.EZ-Guide.com
GUIDANCE

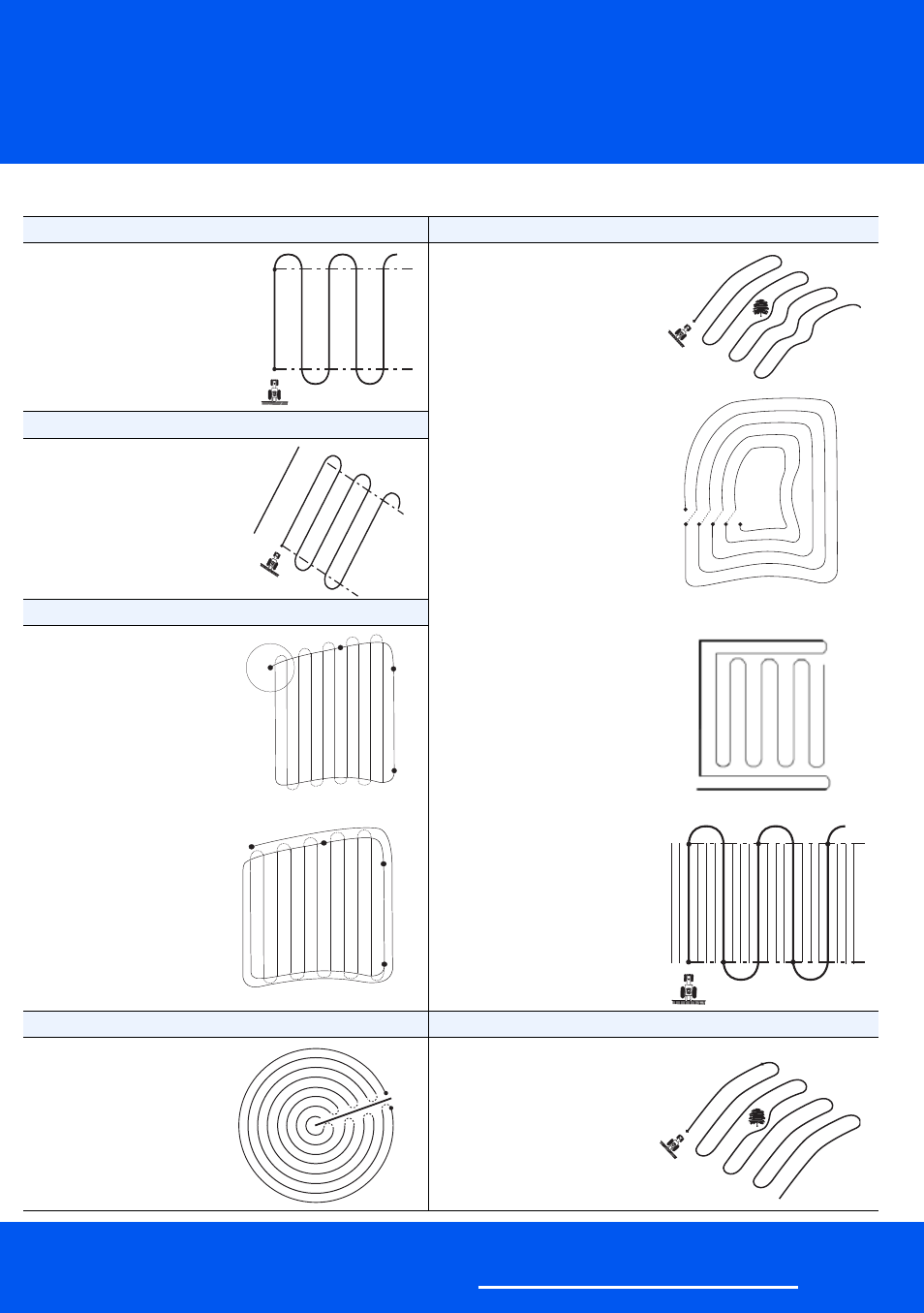

AB Line Adaptive curve
Map a straight AB Line for
guidance. You can reset
the B point until you drive
½ swath offline from the
AB Line.
Auto-detect turn = On
The end of the swath is
automatically detected when
you do a U-turn.
If Auto-detect turn = Off, you
must press B at the end of
every pass.
Spiral
Set Auto-detect turn = Off.
You must press B at the end of
every pass before you start the
turn to mark the end of the
swath.
C-clamp
Bold lines indicate where you
must drive swaths without
guidance and thin lines indicate
where you get guidance.
Rowfinder
You must press B at the end of
every pass to start counting
rows.
A+
The heading of the AB line
equals the previous AB
heading or the manually
entered heading.
Headland
Straight swaths
automatically fill the
headland boundary. The
AB Line does not need to
be the full length of the
field.
Before you reach the circle
around the start point,
press
D
to indicate the
current headland circuit is
the final circuit.
You can do either a single
headland or multiple
headlands.
Center-pivot Identical curve
To work from the center of
the field outwards, the
initial pivot must have:
• a radius of at least two
swath widths
• an arc length of at
least two swath widths
This pattern does not
incorporate any deviation
around an obstacle.
B
A
A
A
B BB B B
A
A
B B
B B
B
A
