Ag Leader EZ-Guide
™
Quick Reference Card
A
INSTALLATION
Step 1:
GPS antenna
Step 2:
Lightbar and remote keypad
Step 3:
Cables
Step 4:
Test your installation
a. Mount the antenna on the
highest part of the vehicle.
Ensure that there are no
obstructions in the way of
the GPS antenna.
b. Mount the antenna along the
boom centerline as shown
below.
Note – Ensure that the
vehicle with the GPS
antenna on top can safety fit
through the door of the
machine shed!
a. Attach the suction cup to the
lightbar. Mount the lightbar for
comfortable viewing inside
the cab.
Note – The lightbar can be
mounted upside down.To flip
the text, change the
MOUNT
setting to
CEILING
.
b. Mount the remote keypad for
comfortable access.
a. Attach the cables as shown
below.
b. Place the cigarette lighter
plug into the vehicle’s
cigarette lighter adaptor.
c. Optionally, connect the
Sonalert alarm.
a. Drive outside and turn on the
unit. The lightbar display
should illuminate.
Note – GPS does not work
indoors.
b. Press –/+ to change the
swath width, then press
Enter
to accept.
c. Wait for the
SET A
message
on the lightbar. EZ-Guide is
ready to use.

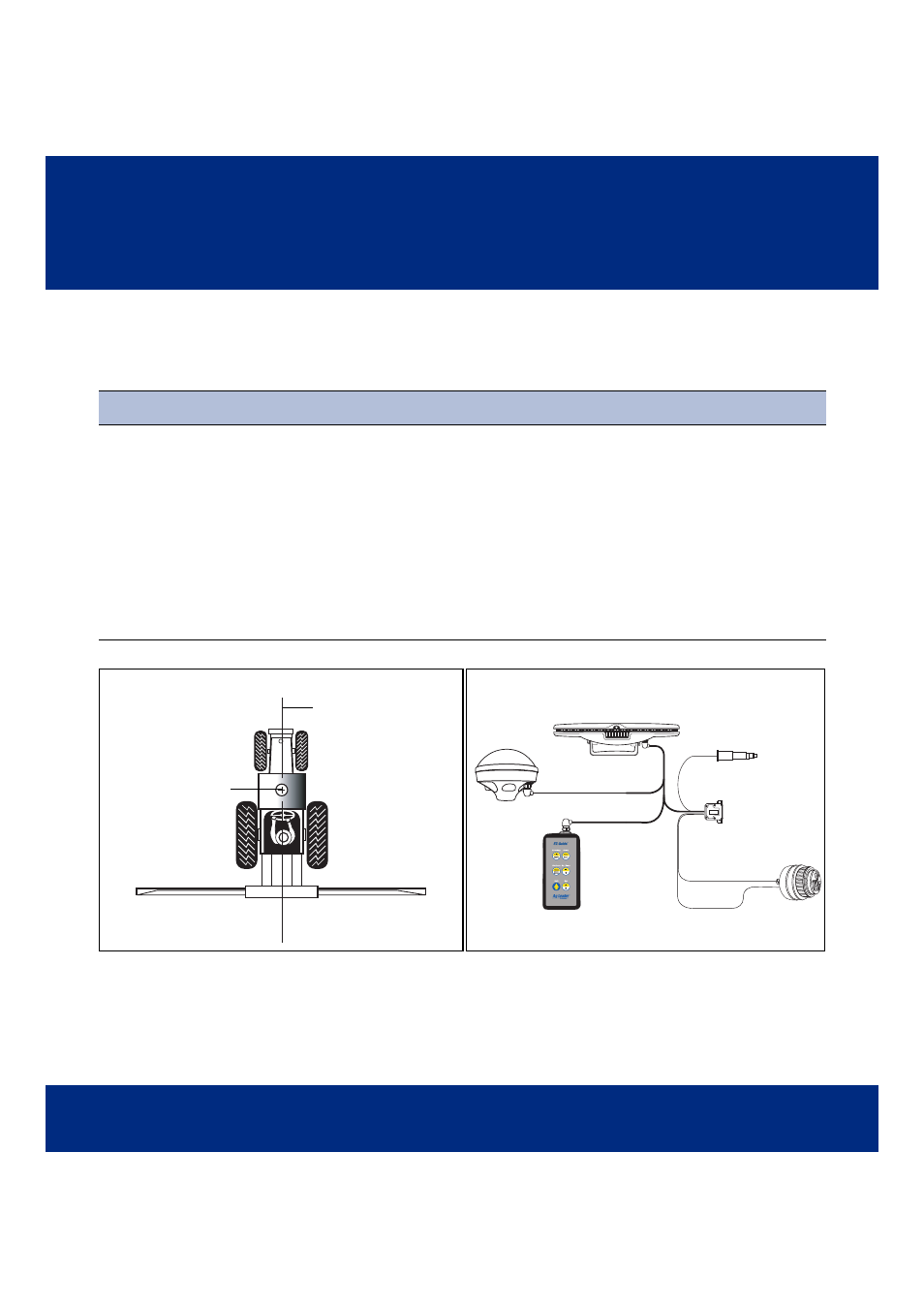

Mounting the antenna
Application boom
GPS antenna
Boom centerline
Lightbar
Attaching the cables
Remote
keypad
Sonalert
alarm
White +
Black –
To yield monitor
or computer
EZ-Guide cable
GPS4050
To power
