Ag Leader EZ-Guide
™
Quick Reference Card
A

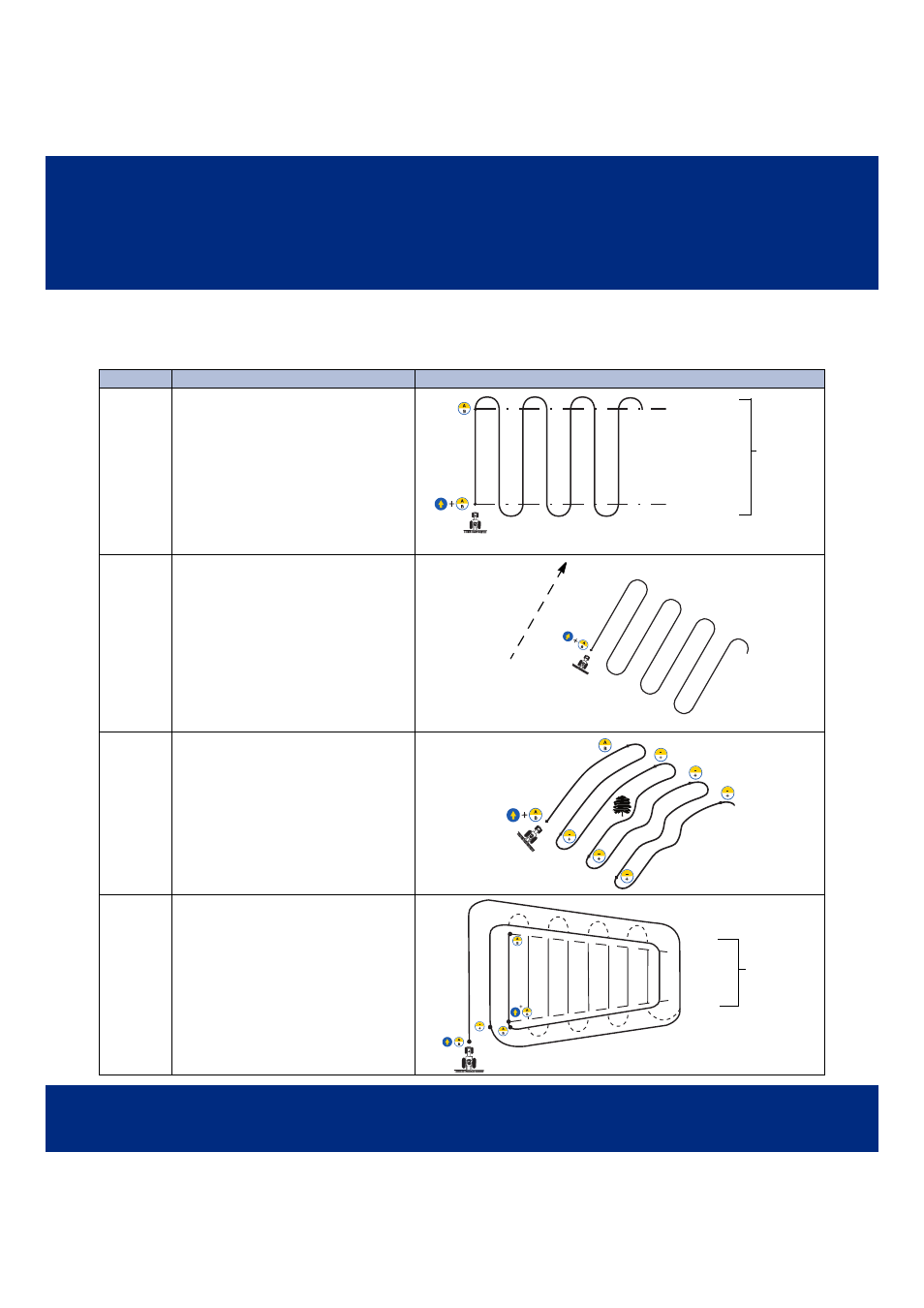

SWATH PATTERN OPTIONS
The following table lists the swath pattern options and describes the approach LED colors and operation.
Pattern Tips on using this pattern Diagram
NEW A-B
To set a straight guidance line, set new A
and B points.
If you have set area points, this area is
used for headland approach LED color.
This diagram assumes that snap to swath is ON.
NEW A+
Use A+ pattern for irregular gaps in your
field, or for adjacent parallel fields. Just
reset Point A to generate a new reference
line that is perfectly parallel to the last A-B
line.
With this pattern, if you have set area
points, this area is used for headland
approach LED color. If you do not have any
area points, then you do not get any
approach LED indication.
This option is only available if there is a
valid A-B Line still in memory.
This diagram assumes that snap to swath is ON.
NEWCURVE
To set a curved guidance line, set new A
and B points.
The approach LED does not indicate the
start and end of the curve swaths.
However, when you are approaching a turn,
end LEDs appear as a turn signal.
Snap to Swath is not available with the
Curve pattern. You must manually
increment the swath. Before beginning your
turn, you must press –/+.
NEWHLND
For straight parallel swaths inside the
headland, map at least one headland pass
around the outside of the field and then set
A and B points.
Before you can set the A and B points, you
must complete the headland.
When you approach the headland, the
approach LED indicates your distance to
the end of the swath.
Note – EZ-Guide only calculates field area
based on area points, not headlands.
A
B
Green = Inside
Red = Outside
Red = Outside
Approach
LED color
A
Direction
of last
A-B line
A
B
Green
Red
Red
Approach
LED color
A
B
