3000021

18

6.

Tuck blue and black wires back into the corrugation of original harness.
Have the 9-pin connector come out near the gray 10-position connector.
Replace cable ties as necessary. See Figure 4.

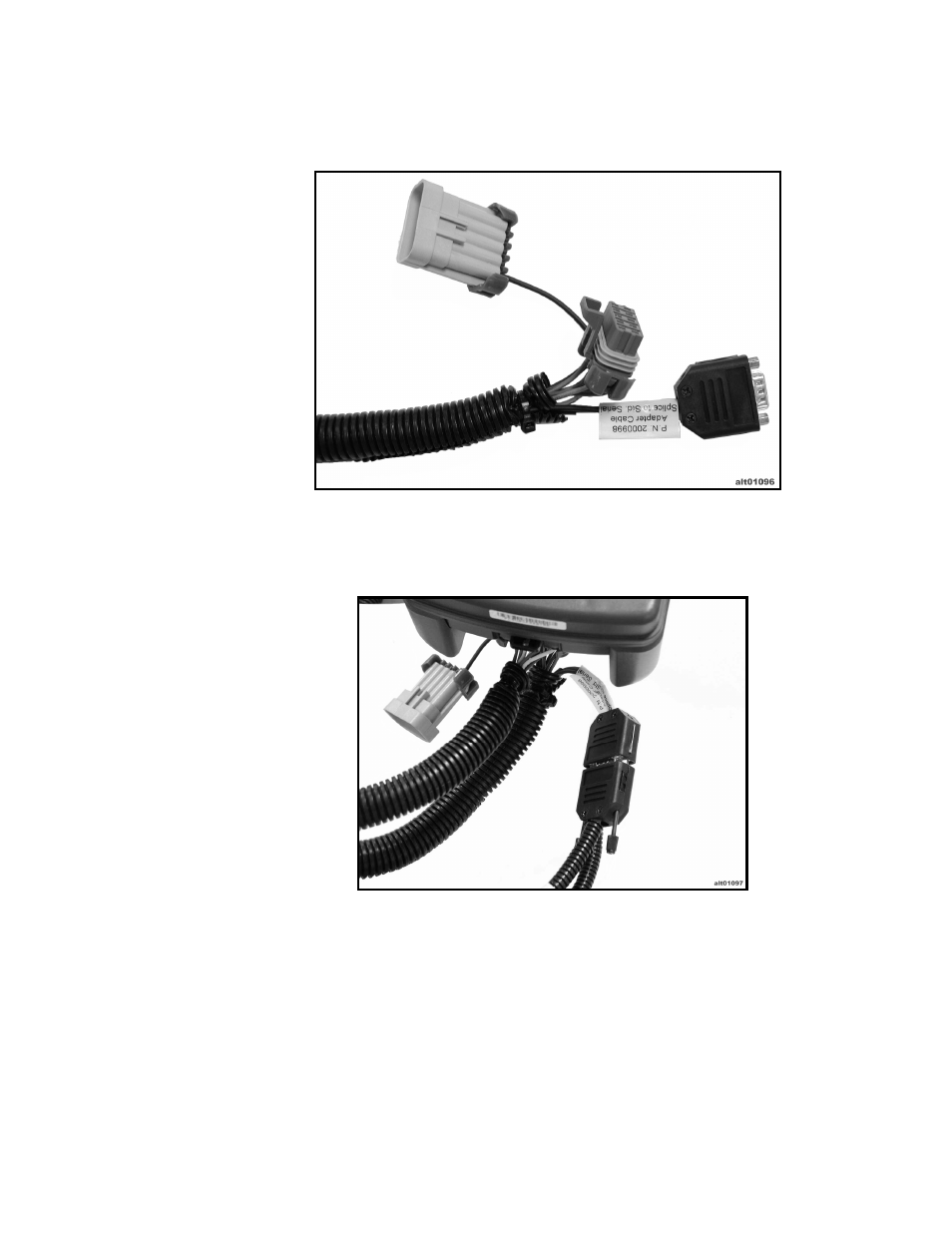

Figure 4. Cable corrugation back in place.

7.

Connect 9 pin D-Sub connectors of P.N. 2000998 and P.N. 3000475 or
3000476. See Figure 5.















Figure 5. 9-Pin connector attached.
