Cable
Installation
The cable installation described here is for the Display mounted Mobile
Processor and Silver Wedge-Box Mobile Processor.
Step-by-Step
Procedure for
Display
Mounted Mobile
Processor 1. Locate gray 10-position connector on the GreenStar mapping processor and
find position "F". The wire should be a light blue color and be labeled
"232RXLD". If there is no wire in position “F”, insert the blue wire included
in the cable kit.
2.
Install Blue splice 4 inches from gray connector. See Figure 1.

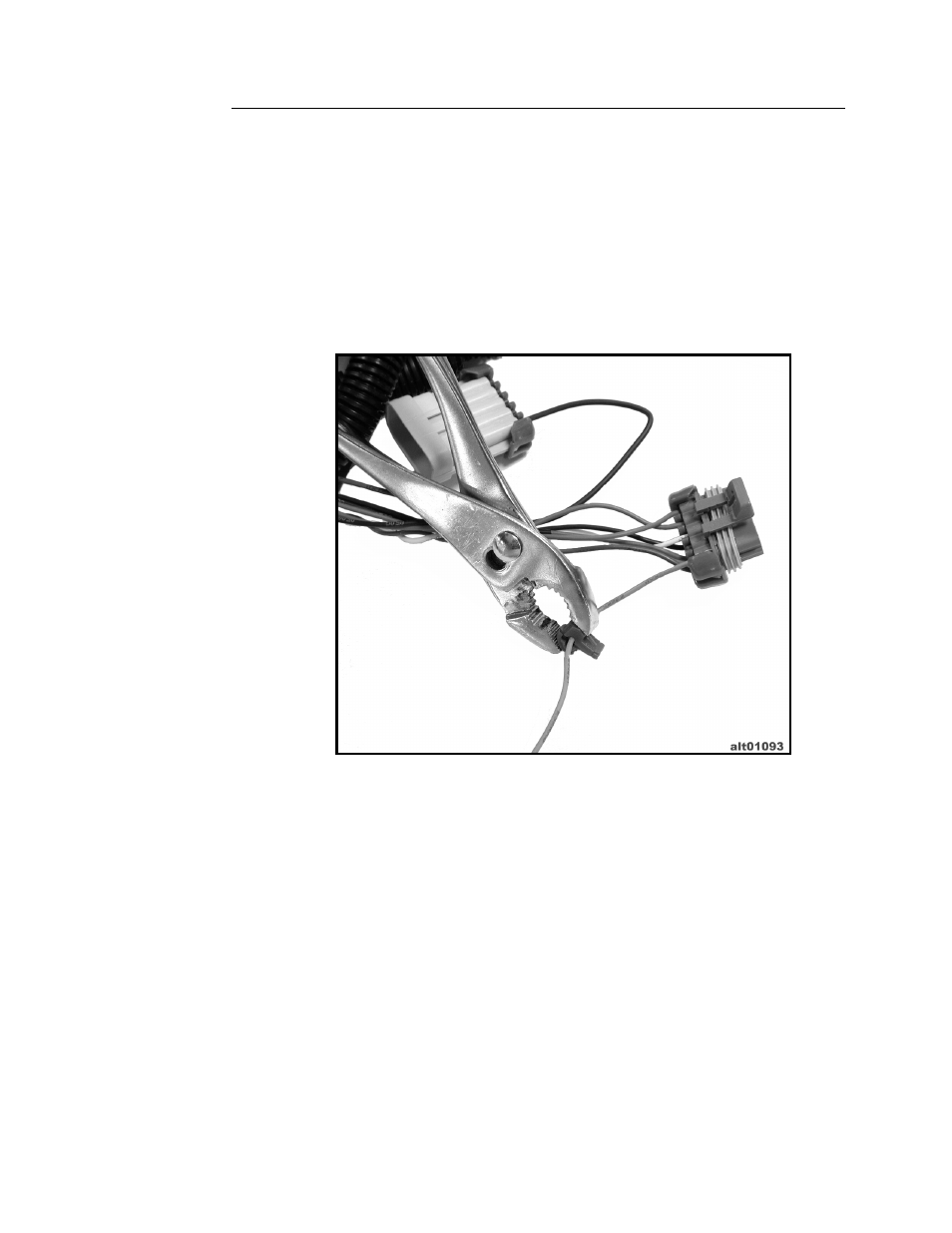

Figure 1. Installing Blue splice on wire 232RXLD
3. Locate position "C" on same gray connector. The wire should be black and
labeled "050B".
4.
Install Blue splice 4 inches from gray connector. See Figure 2.
