GPS 1000 Plus Installing Antenna/Receiver
Ag Leader Technology
December 2003 3000021 8
Step Action
2 Attach the GPS cable from the antenna to Port 1 of the
PF3000, Port 1 on the YM 2000, or the GPS port on the
Insight. See Figures 4 and 5.
NOTE: If you are attaching the GPS 1000 Plus to
a PF 3000 Pro without GPS, attach the GPS cable
to AUX. 1 Port.
NOTE: If you are connecting your GPS 1000 Plus
to an alternative logging or mapping device (i.e.
handheld or laptop computer), refer to your
Operator's Manual for that particular unit for
correct cable connection.

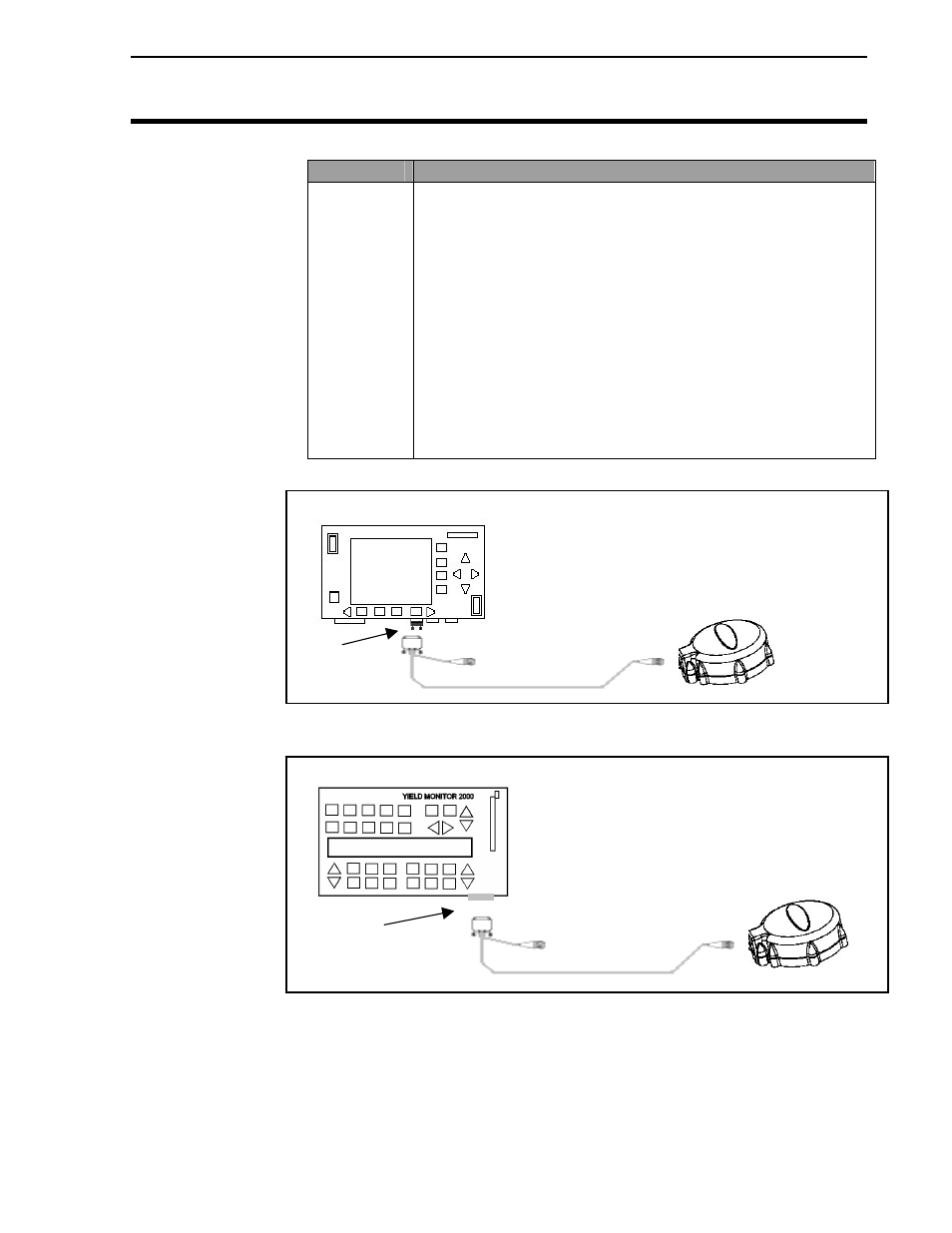

Figure 4. Cable attachment for PF3000 and GPS 1000 Plus
Figure 5. Cable attachment for YM 2000 and GPS 1000 Plus
Port 1
Port 1
