5
1600 R
ECEIVER
GPS O
VERVIEW
PN 2006346 Rev A

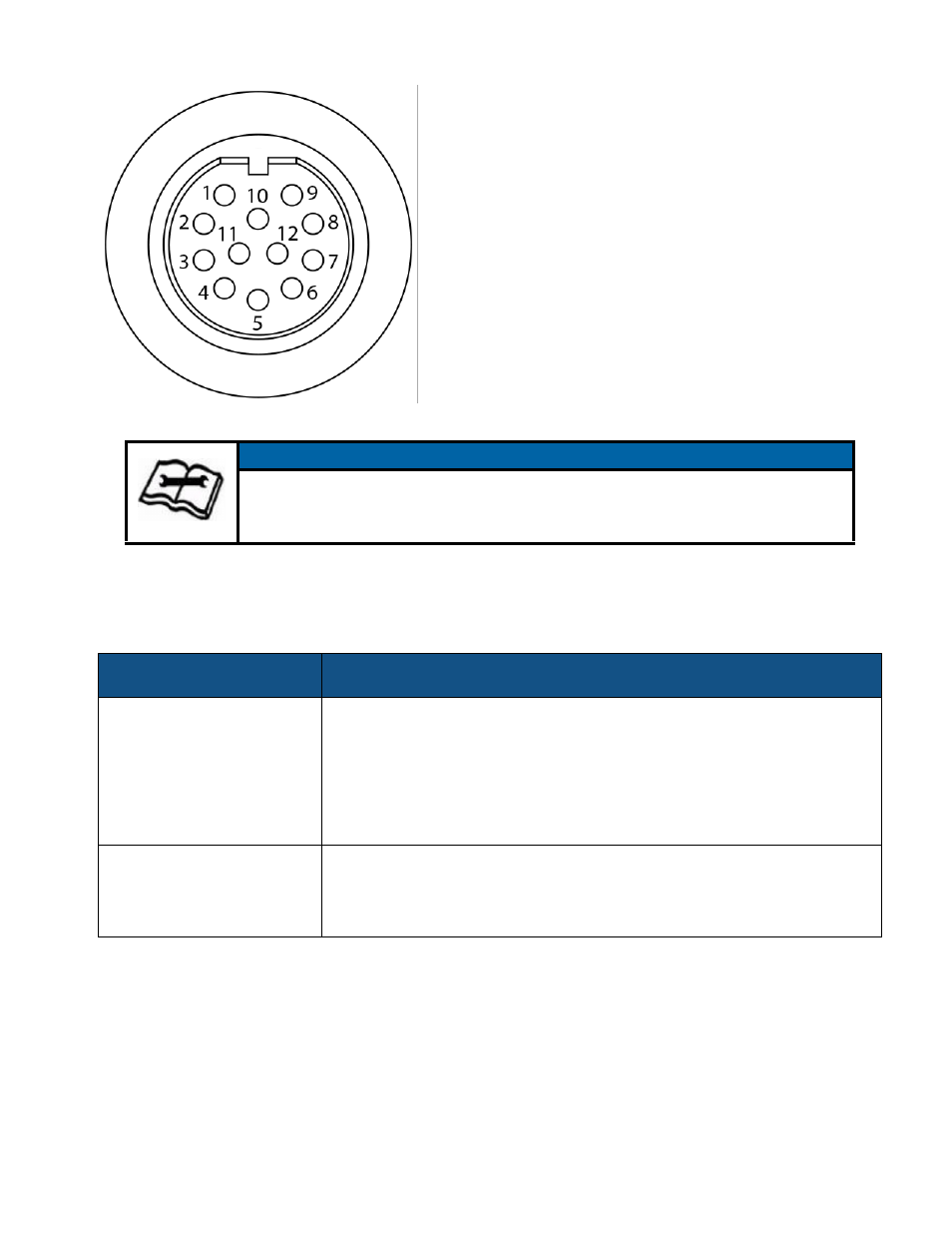

1. Manual mark in
2. Port B Tx
3. Port B Rx
4. CAN high
5. Signal ground
6. Port A Tx
7. 1 PPS
8. Port A Rx
9. CAN low
10. Power in (12 V)
11. Power ground
12. Speed out
D
EFAULT
P
ARAMETERS
1600 R ECEIVER GPS O
VERVIEW
For your convenience, both the GPS and differential correction of the receiver are pre-configured. The
receiver will work out of the box, and for most applications, little user setup is necessary. When powered
for the first time, the receiver will perform a ‘cold start’ that involves acquiring the available GPS satellites
in view and the SBAS differential service.
NOTE
Note: For successful communication, the baud rate of the receiver serial ports
(Port A and Port B) must be set to match that of the devices to which they are
connected.
Default parameters
Setting Description
Serial ports A and B
• Baud rate: 4800, 9600, 19200, 38400, 57600, 115200
• Data bits: 8
• Parity: None
• Stop bit: 1
• Interface level: RS-232
GPS messages
• Type:, NMEA 0183, NMEA 2000
• Update rate: 1 Hz to 10 Hz
• Elevation mask: 5°
