Cabling
In this section
Storage device cabling guidelines............................................................................................................ 76
Tape drive cabling to the USB connector................................................................................................... 76
SAS cabling .......................................................................................................................................... 77
Video connector cabling ......................................................................................................................... 77
Battery-backed write cache cabling .......................................................................................................... 78
Storage device cabling guidelines
CAUTION: To prevent damage to the equipment, be sure that the server is powered down, all cables are
disconnected from the back of the server, and the power cord is disconnected from the grounded (earthed)
AC outlet before installing devices.
CAUTION: To prevent damage to electrical components, properly ground the server before beginning any
installation procedure. Improper grounding can cause electrostatic discharge.

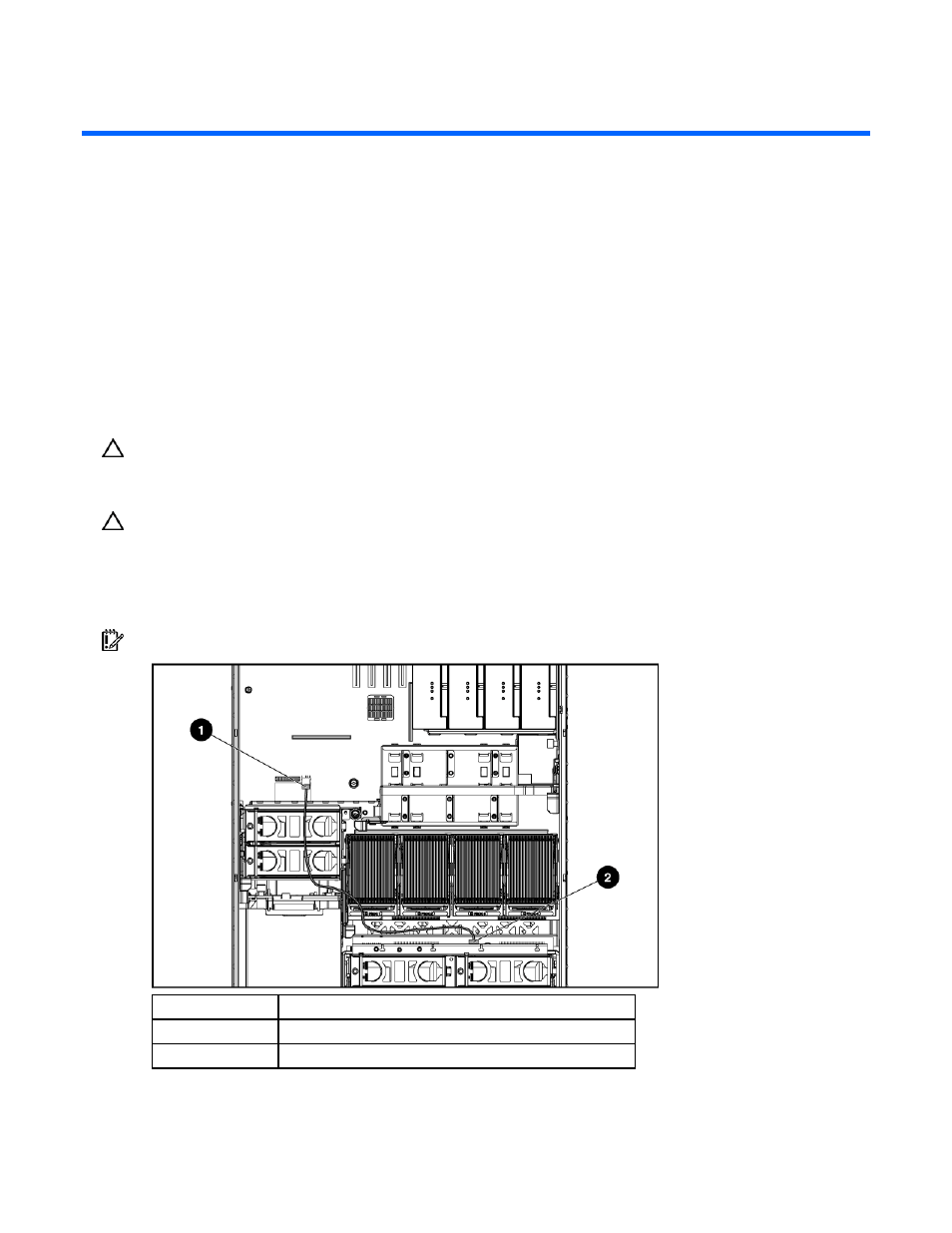

Tape drive cabling to the USB connector
IMPORTANT: Route the USB cable under the mid fan cage.
Item Description
1 USB connector on the system board
2 USB connector on the media device
