Hardware options installation 73
3. Remove the server from the rack.
4. Place the server on a flat, level surface with the access panel facing down.

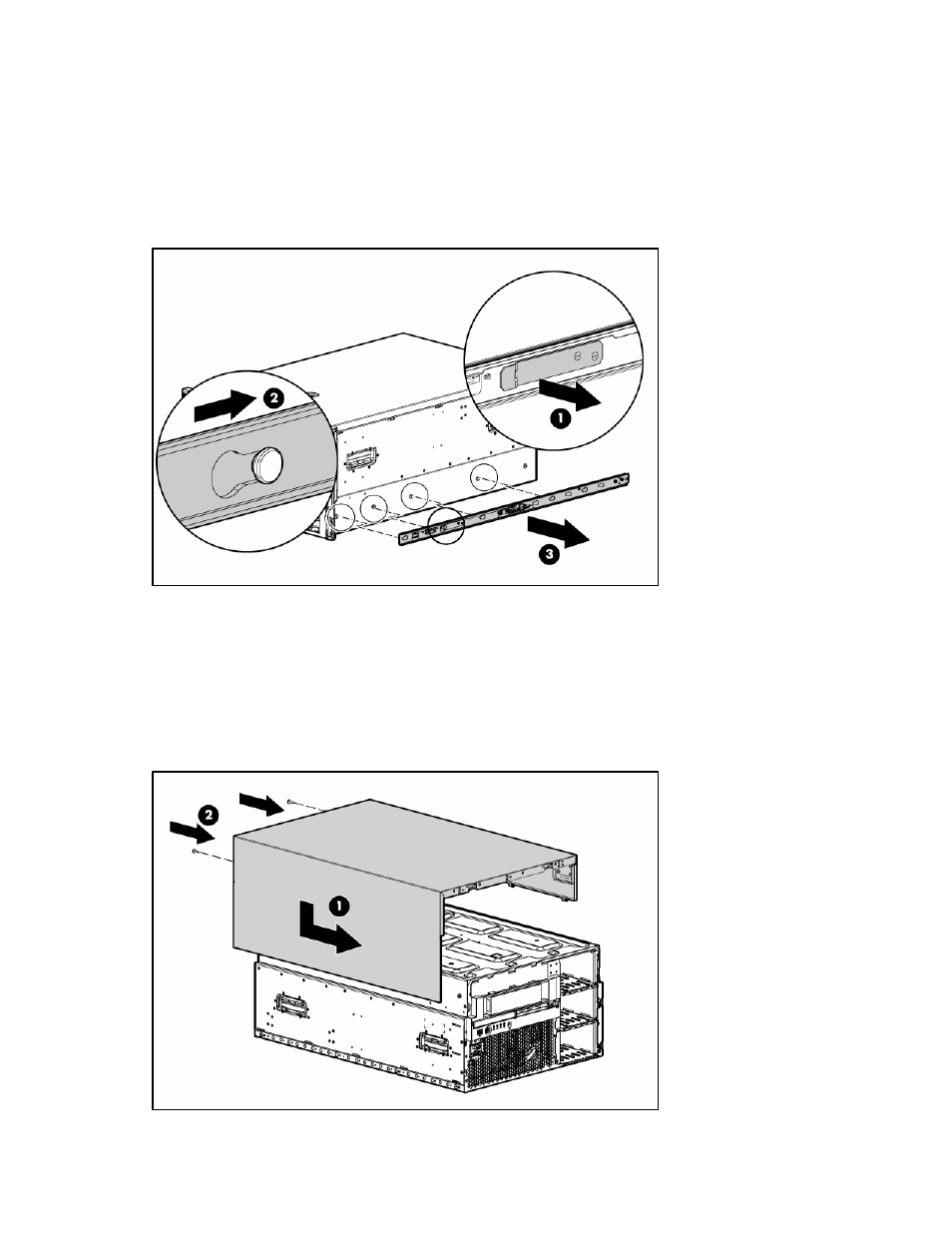

Removing the server rails
1. Release the latch while pressing the rail against the side of the chassis and slide the rail toward the
rear of the server, lining up the keys with the larger keyholes.
2. Remove the rail.
3. Repeat steps 1 and 2 for the other rail.
Installing the tower cover
1. Remove the rack bezel (rack servers only) (" Remove the rack bezel " on page 26 ).
2. Place the tower cover onto the unit and slide it toward the front of the server.
3. Be sure the ten metal hooks (five per side) on the inside of the cover engage the chassis.
4. Use a T-15 Torx screwdriver to install the two T-15 screws to secure the tower cover.
