Hardware options installation 67

5.

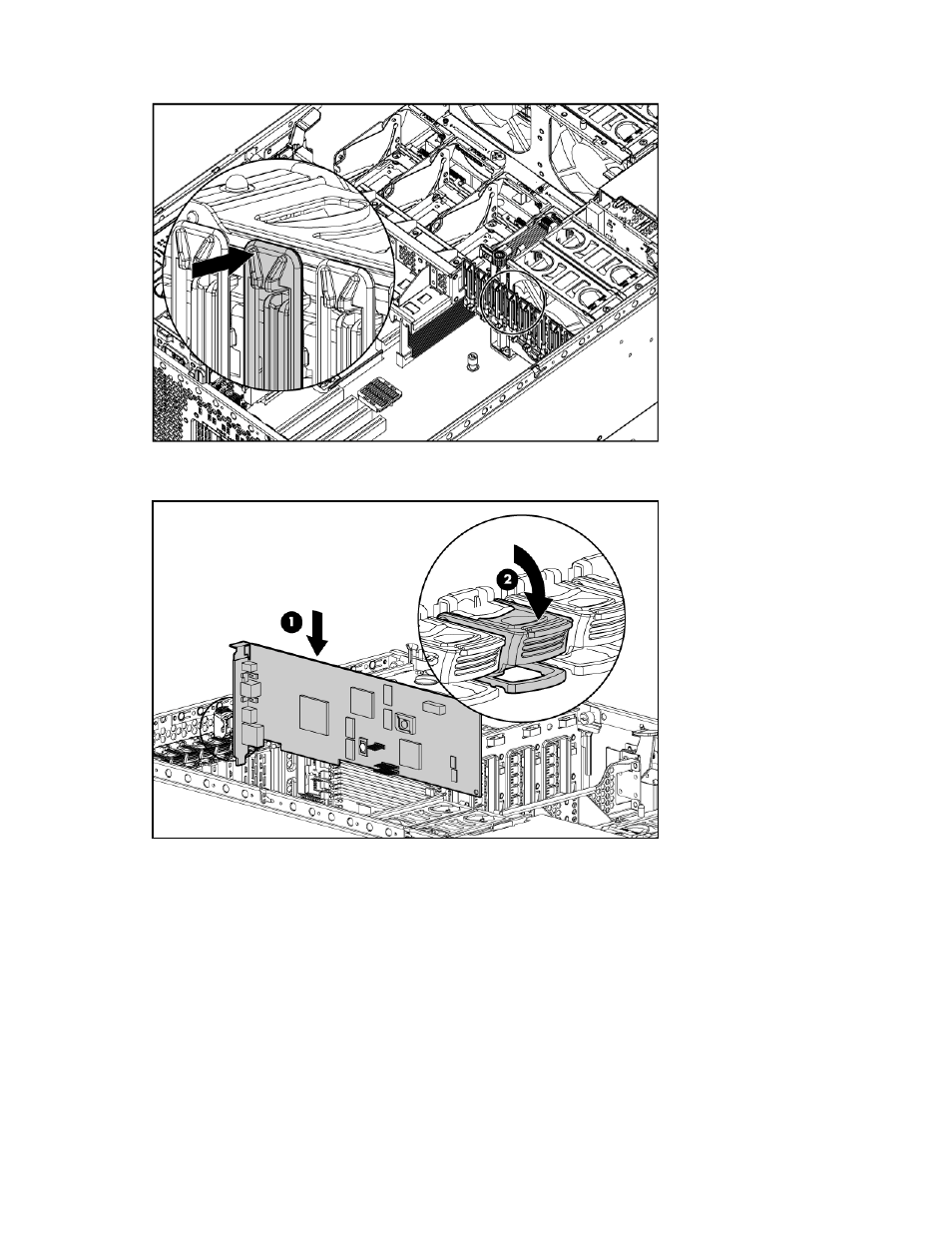

Open the retaining clip and unlock the PCI slot release lever.

6.

Install the expansion board.

7.

Lock the PCI slot release lever and close the retaining clip.

8.

Connect any required internal or external cables to the expansion board. For additional information,
refer to the documentation that ships with the expansion board.

9.

Install the access panel (on page

27

).

10.

Do one of the following:
— Install and lock the bezel.
— Slide the server back into the rack.

Tower-to-rack conversion

The tower-to-rack conversion kit includes all equipment required to convert the tower model server into a
rack model server, and to install the server into most square- or round-hole racks.
