Controls and Indicators on the CTL700 Tape Library
L700 (CTL700) Installation and User’s Guide — 527338-008
4 -5
Display Screens
CAP Status
Accessible from the Main menu, the CAP Status screen is an information-only screen.
It displays either the VOLSER of a cartridge or a status message for each slot in a
CAP magazine.
Figure 4-4 shows the CAP status screen.

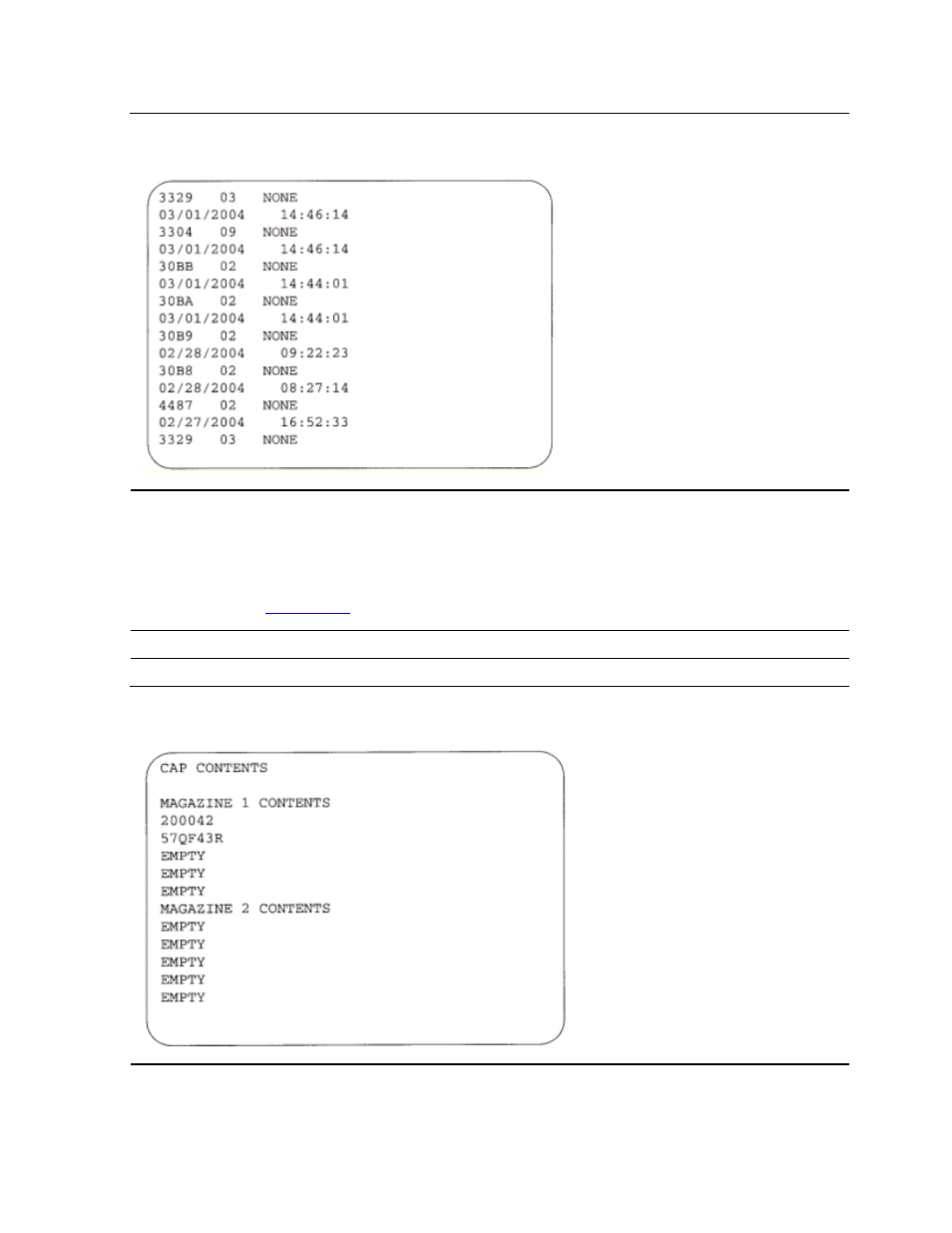

Figure 4-3. FSC Log Screen
Note. Scroll down to view the contents of both CAPs.
Figure 4-4. CAP Status Screen
