Controls and Indicators on the CTL700 Tape Library
L700 (CTL700) Installation and User’s Guide — 527338-008
4 -9
Display Screens
Configuration Menu
Accessible from the Main menu, the Configuration menu ( Figure 4-8 ) routes you to the
configuration menus (library, drive, and network) and to the panel display controls.
Library Configuration
Accessible from the Main Configuration menu, the Library Config menu displays library
capacity information and lets you modify the library’s configuration.
Figure 4-9 shows
an example of a library configuration screen.

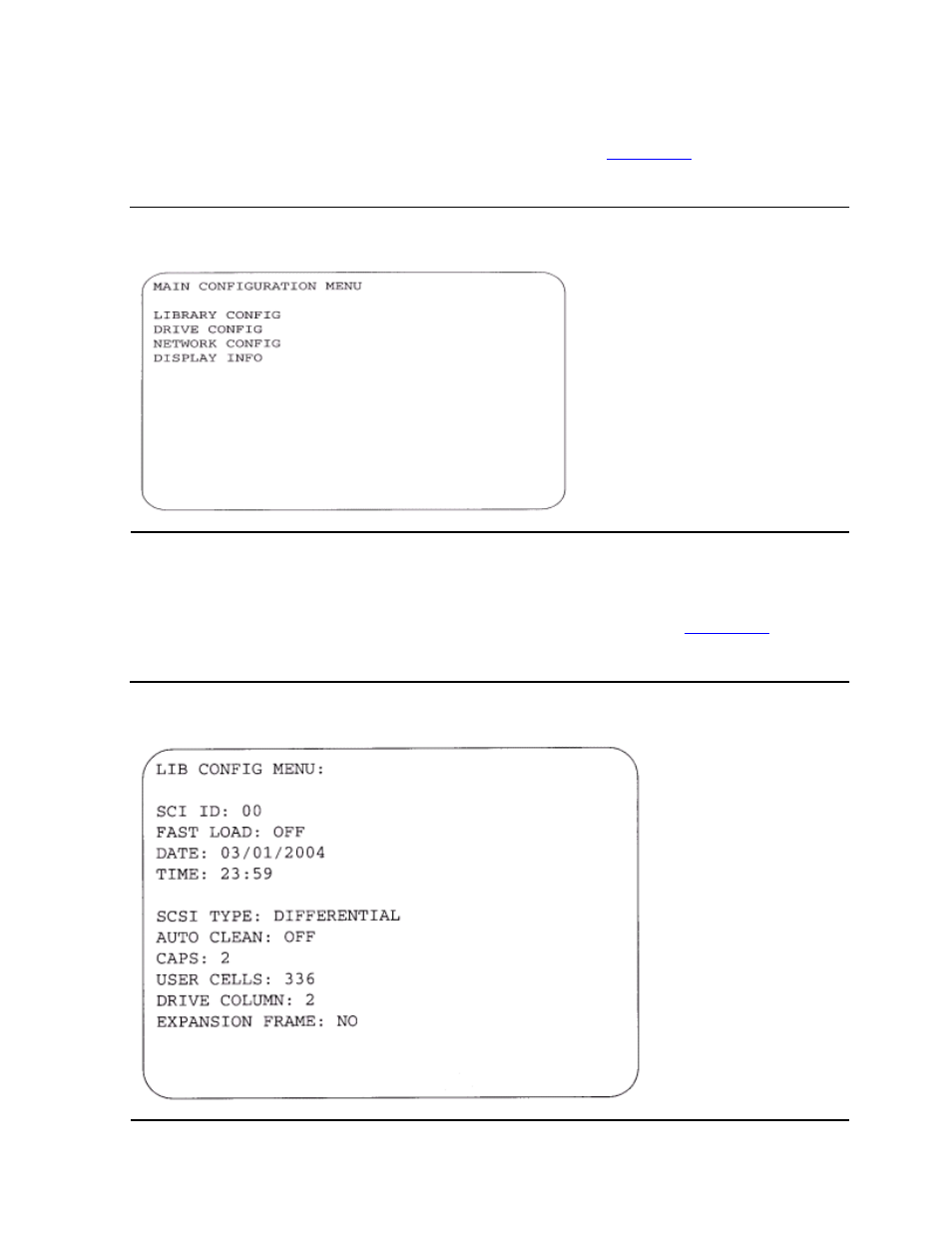

Figure 4-8. Configuration Menu
Figure 4-9. Library Configuration Menu
