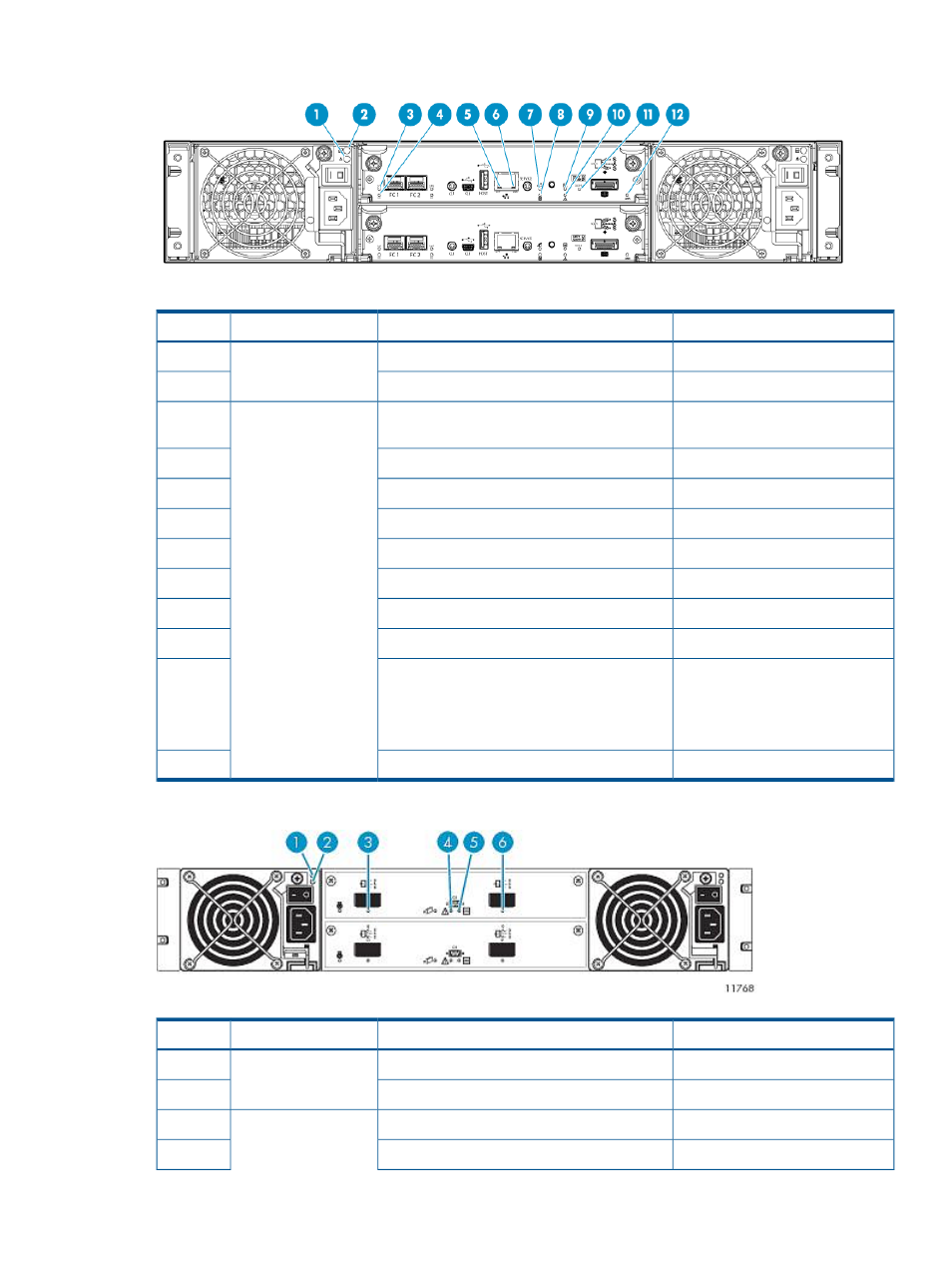

Figure 4 VLS9200 Base Enclosure Rear Panel LED Status – Normal Operation
LED state LED Location Item
Off Voltage/Fan Fault/Service Required (amber) Power module 1
On Input Source Power Good (green) 2
On, if link speed is 2 or 4 Gbps Host 2/4 Gb FC Link Status/Link Activity
(green) RAID controller 3
On, if link speed is 8 Gbps Host 8 Gb FC Link Status/Link Activity (green) 4
On Network Port Activity (green) 5
On Network Port Link Status (green) 6
Off OK to Remove (blue) 7
Off Unit Locator (white) 8
On FRU OK (green) 9
Off Fault/Service Required (amber) 10
On, if cache contains unwritten
data Cache Status (green) 11
Off, if cache does not contain
unwritten data
On Expansion Port Status (green) 12
Figure 5 VLS9000 Capacity Enclosure Rear Panel LED Status – Normal Operation
LED state LED Location Item
On AC power good (green) Power module 1
Off DC-Fan Fault/Service Required (yellow) 2
On SAS In port status (green) Expansion controller 3
Off Fault/Service Required (yellow) 4
Powering On VLS Arrays 91
