Status Description Item
Off = Identification is deactivated.
Green = System health is normal. Health LED 2
Amber = System health is degraded. To identify the
component in a degraded state, see
HP Systems
Insight Display LEDs and Internal Health LED
Combinations
.
Red = System health is critical. To identify the
component in a critical state, see
HP Systems Insight
Display LEDs and Internal Health LED Combinations .
Off = System health is normal (when in standby
mode).
Green = System is on. Power On/Standby button and system power LED 3
Amber = System is in standby, but power is still
applied.
Off = Power cord is not attached, power supply
failure has occurred, no power supplies are installed,
facility power is not available, or the power button
cable is disconnected.

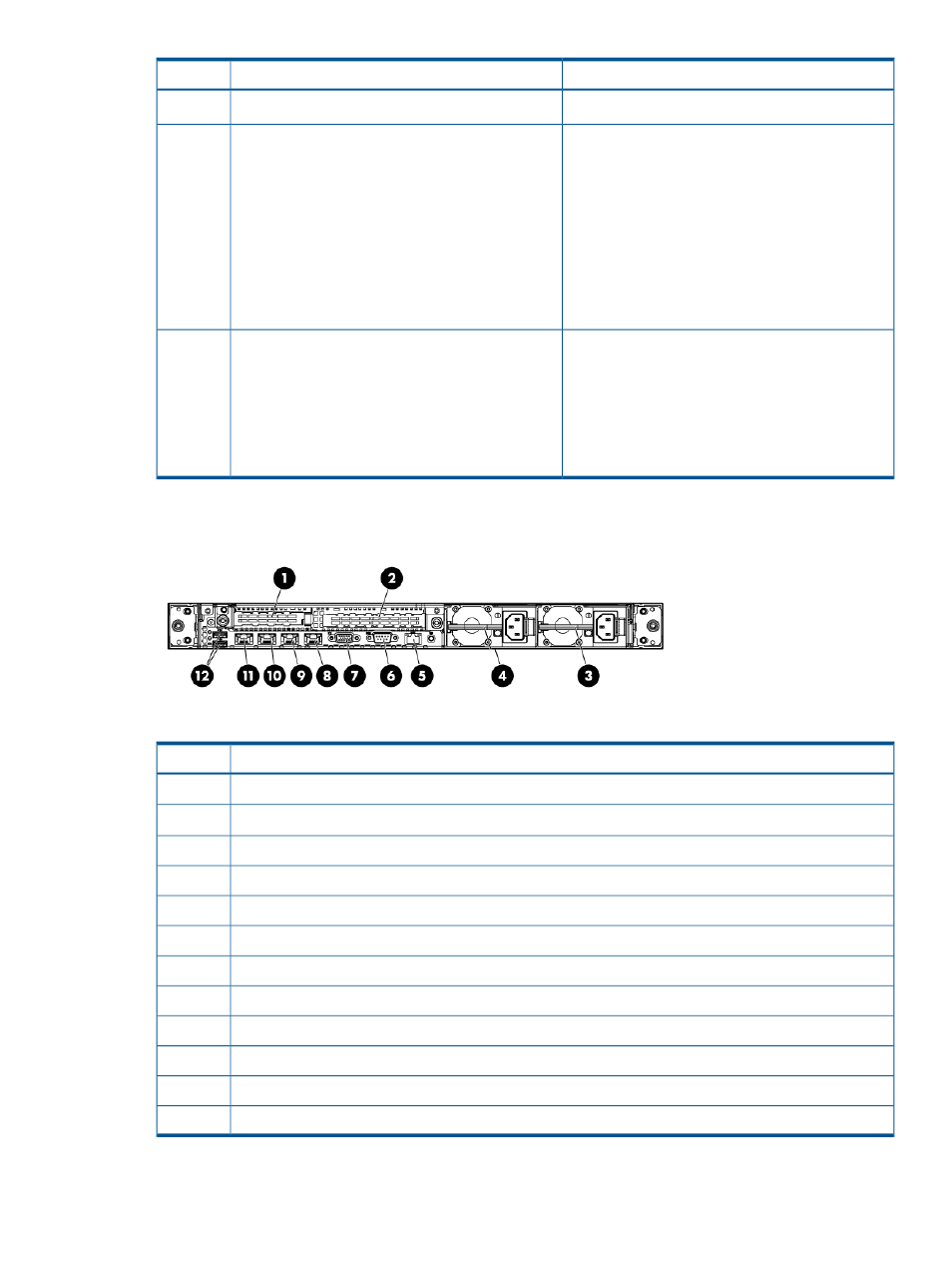

Rear Panel Components
Description Item
Slot 1 PCIe2 x8 (8, 4, 2, 1)
1
1
Slot 2 PCIe2 x16 (16, 8, 4, 2, 1)
1
2
Power supply 1 3
Power supply 2 4
iLO 3 connector 5
Serial connector 6
Video connector 7
NIC 4 connector 8
NIC 3 connector 9
NIC 2 connector 10
NIC 1 connector 11
USB connectors (2) 12
VLS9200 Node Components, LEDs, and Buttons 173
