Status Description Item
Red = System health is critical. To identify the
component in a critical state, see
HP Systems Insight
Display LEDs and Internal Health LED Combinations .
Off = System health is normal (when in standby
mode).
Green = System is on. Power On/Standby button and system power LED 3
Amber = System is in standby, but power is still
applied.
Off = Power cord is not attached, power supply
failure has occurred, no power supplies are installed,
facility power is not available, or the power button
cable is disconnected.

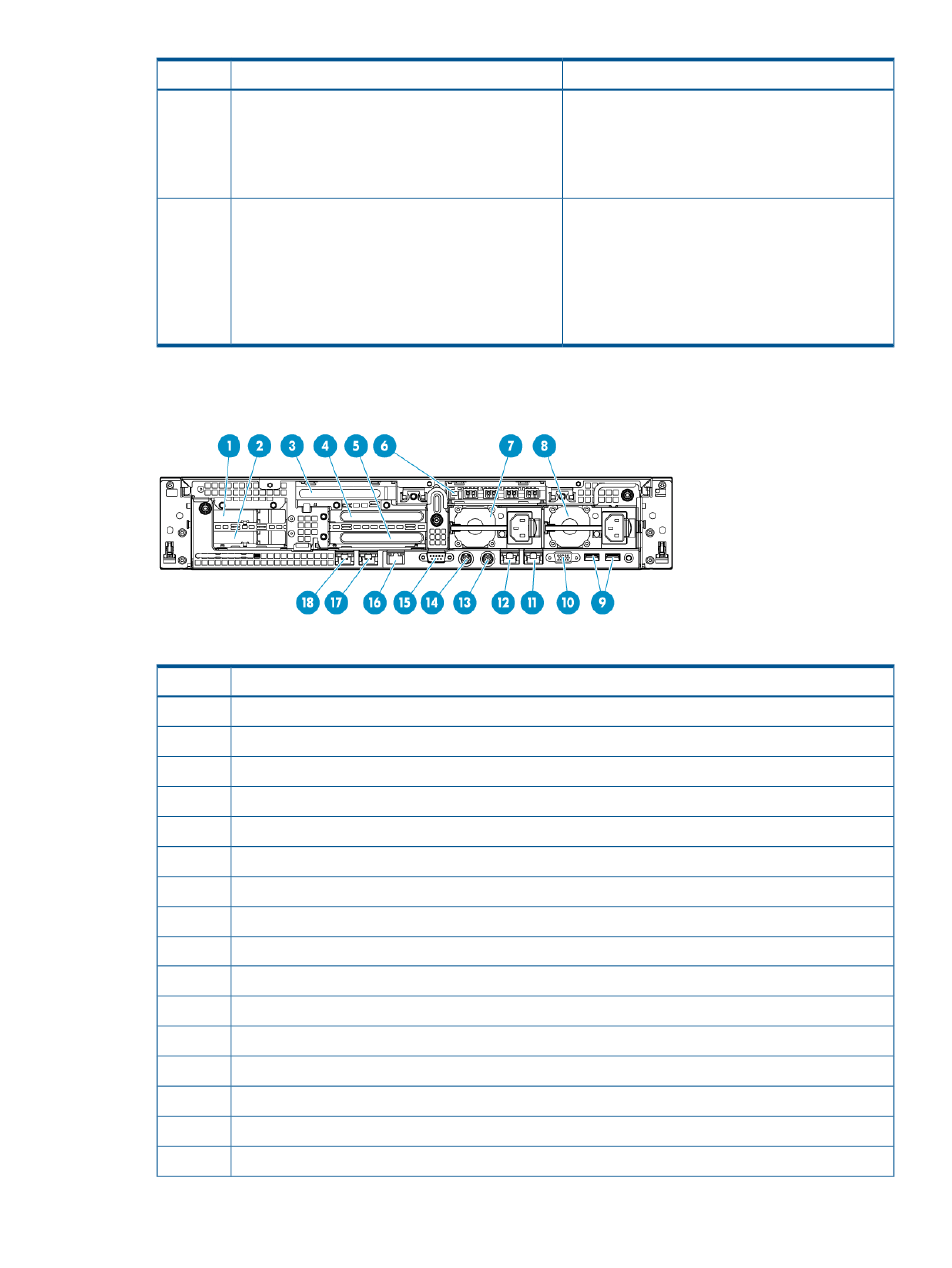

Rear Panel Components
Description Item
PCI slot 5 1
PCI slot 6 2
PCI slot 4 3
PCI slot 2 4
PCI slot 3 5
PCI slot 1 6
Power supply 2 7
Power supply 1 8
USB connectors (2) 9
Video connector 10
NIC 1 connector 11
NIC 2 connector 12
Mouse connector 13
Keyboard connector 14
Serial connector 15
iLO 3 connector 16
VLS9200 High Performance Node Components, LEDs, and Buttons 181
