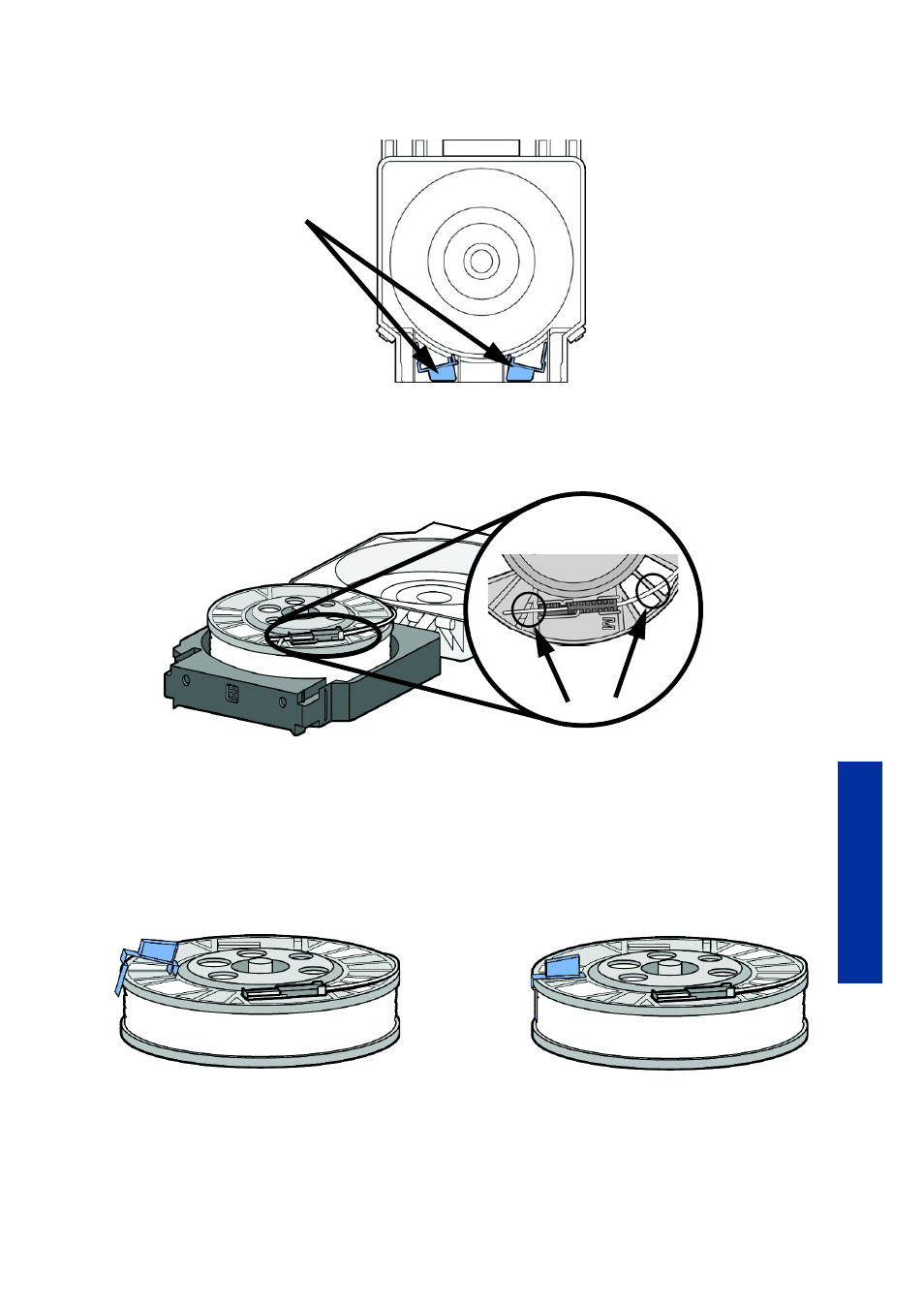

Figure 23 Material retaining clips
9. Place the material guide in the material guide slot on the spool. See Figure 24.
10. Place the material in the material notches. See Figure 24.
Figure 24 Material guide slot and notches
11. Cut the excess material from material guide.
12. Place the material retaining clips on the spool before removing the spool from the carrier.
See Figure 25.
a. Push the material retaining clips over the material and clip on to
the material spool.
b. Push the material retaining clips down until they lock in place.
Figure 25 Installing material retaining clips
13. Remove the material spool from the material carrier. See Figure 26.
Material retaining clips
Place clip and push down to lock in place
