86 Managing logical disks (LUNs)

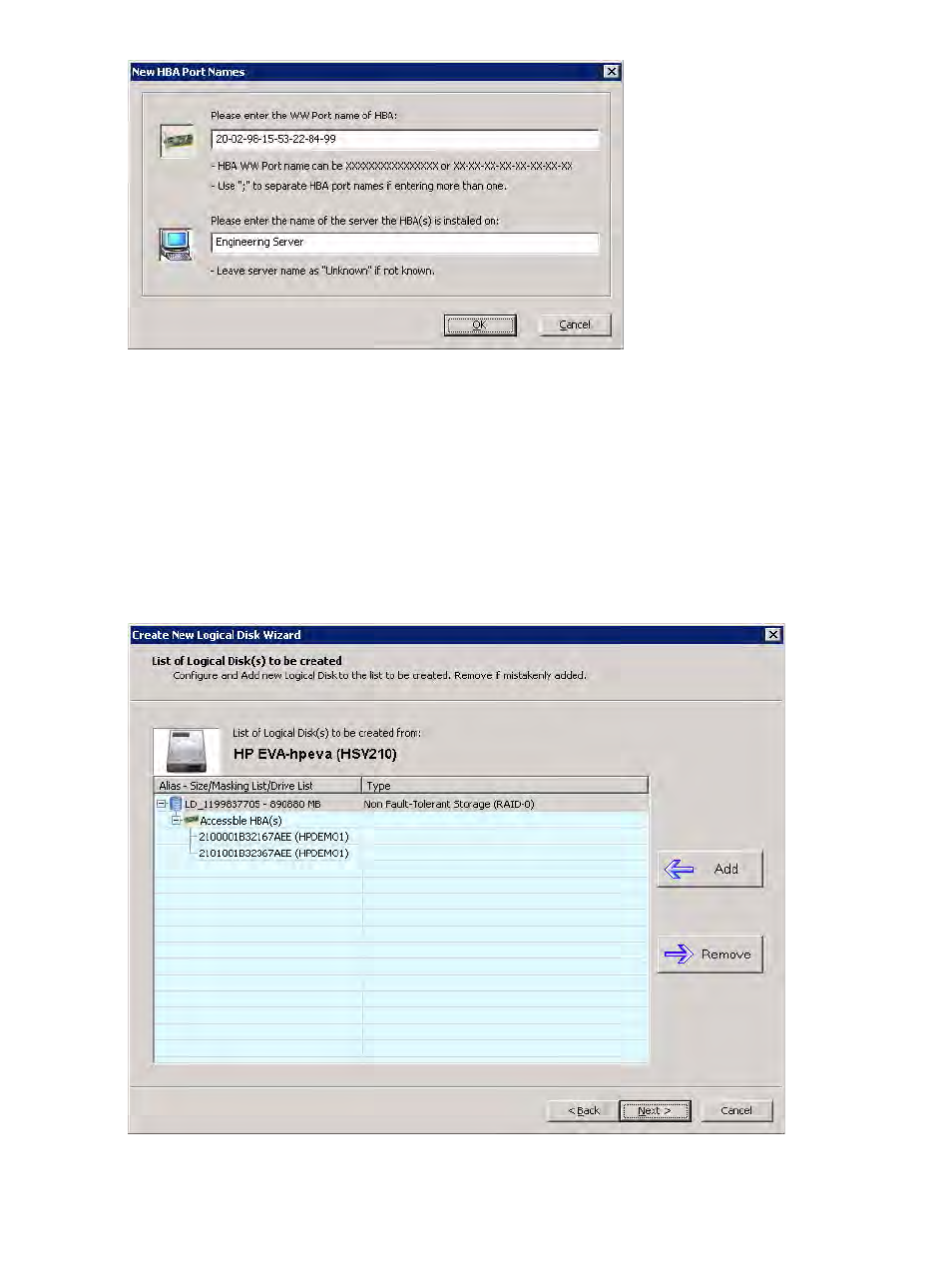

Figure 53 New HBA Port Names dialog box
b. In the first box, enter the world wide port name (WWPN) of the HBA. You can enter the HBA
WWPN formatted as either 20 consecutive alphanumeric characters, or as 10 two-digit segments
separated by hyphens; for example,
xx-xx-xx-xx-xx-xx-xx-xx-xx-xx
.
c. In the second box, enter the name of the server on which the HBA(s) are installed. If you do not
know the name of the server, enter Unknown.
d. When you finish manually adding the HBA, click OK to save the information and close the dialog
box. To close the dialog box without saving any data, click Cancel.
6. When you finish on the New Logical Disk Server Presentation dialog box, click OK to save your
changes and close the dialog box.
The Create New Logical Disk wizard (
Figure 54 ) opens and lists the information for the new logical
disk.
Figure 54 Create New Logical Disk Wizard (EVA storage)
