Compaq Array Configuration Utility 6-31
Compaq Confidential – Need to Know Required
Writer: CDresden Project: Compaq Integrated Smart Array Controller User Guide Comments:
Part Number: 153236-001 File Name: g-ch6 Compaq Array Configuration Utility.doc Last Saved On: 8/27/99 11:25 AM
5. Select the Next button at the bottom of the screen to advance to the
Create Logical Drives screen, as shown below.

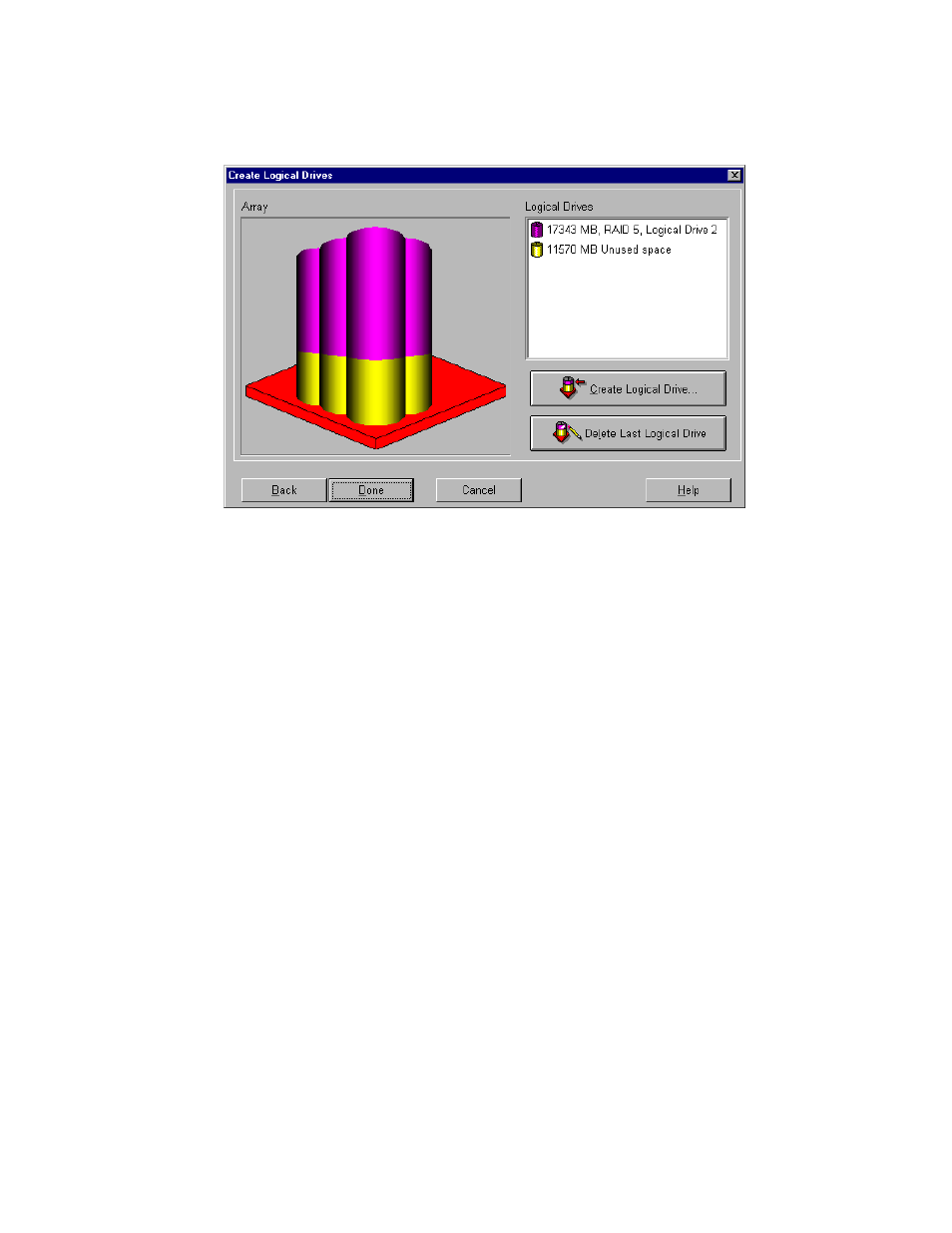

Figure 6-25. Create Logical Drives screen
6. Select the Create Logical Drive button.
7. Set the fault tolerance, array accelerator, stripe size, and size for the new
logical drive.
8. Select the Done button to return to the main configuration screen.
9. At the main screen, pull down the Controller menu, the select Save
Configuration from the menu bar. This saves the new settings and starts
the capacity expansion process.
NOTE: The new logical drive will not be accessible until the capacity expansion process
has been completed on the existing logical drive.
