4. Select the Assign Drive(s) to Array button.

5. Select the drive at Port 2:SCSI ID 3 and select the Assign Spare to

Array button. The right side of the Create Array screen should now look
similar to the figure below.

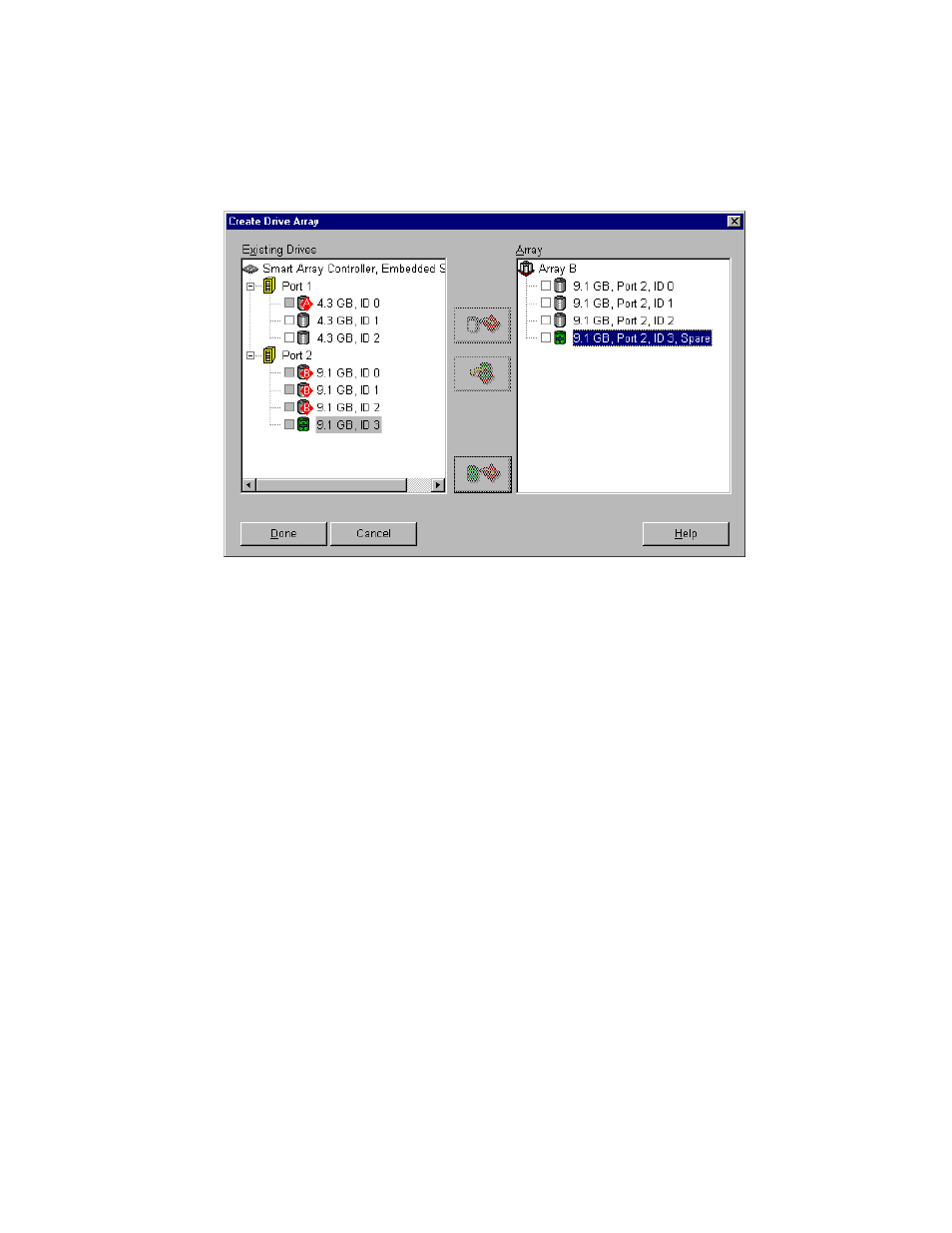

Figure 6-20. Example Array B

NOTE: The same spare drive may be assigned to multiple arrays. However, spare drives
must have the same or greater capacity as the drives in the array.
