NOTE: Because the size of the logical drive depends on the number and size of drives
used in the array, there is no right or wrong logical drive size.
5. Select the Done button.
6. Select Array C or the Unused spare icon under Array C in the Logical
Configuration View.
7. Repeat Steps 2 through 5 to create a single logical drive across Array C,
this time selecting the RAID 1 fault-tolerance option.
8. The Logical Configuration View screen appears as shown in the figure
below.

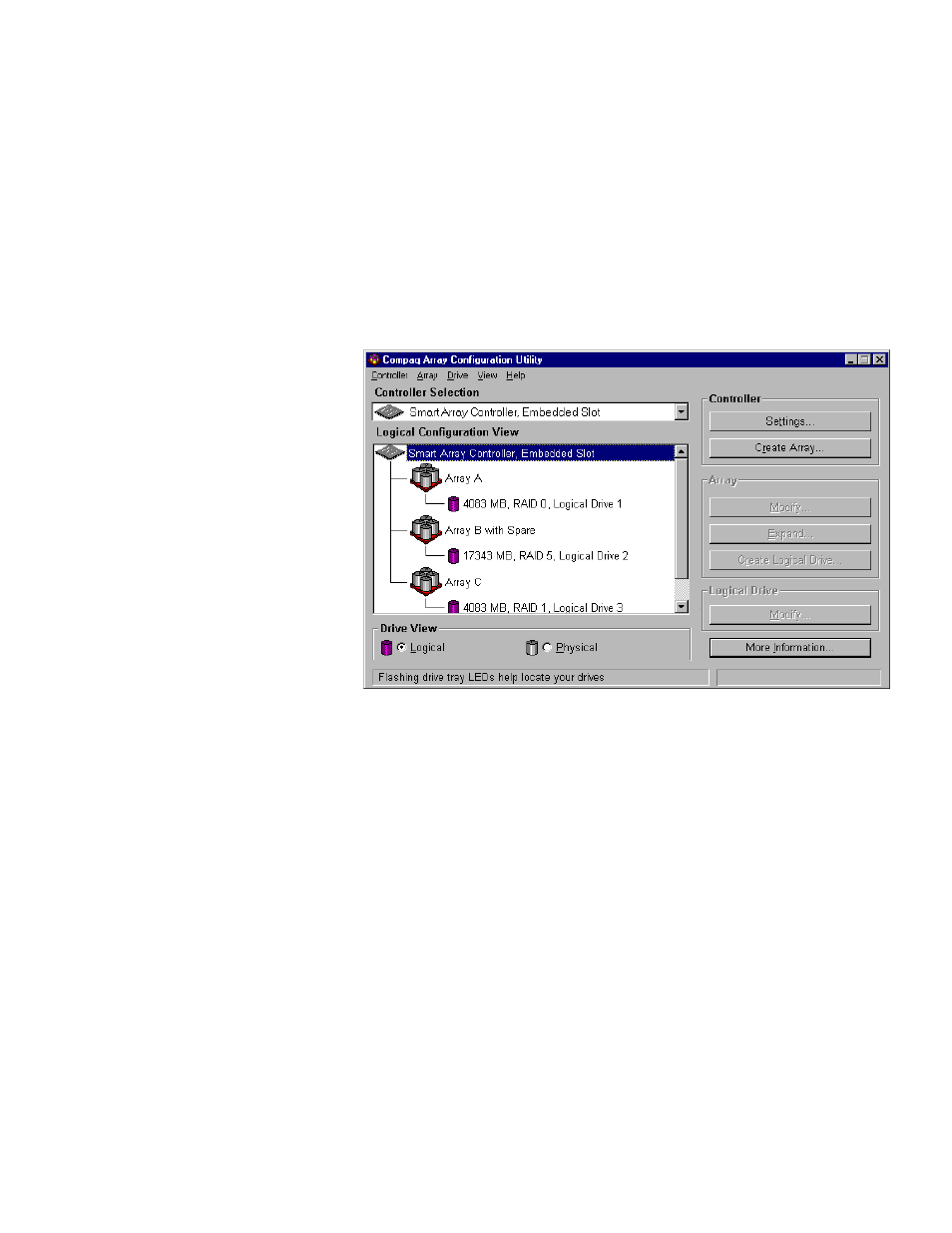

Figure 6-23. Logical Configuration View window showing three arrays with
different RAID assignments
9. At the main screen, pull down the Controller menu, then select Save
Configuration. This saves the new settings for logical drive 2 and
logical drive 3.
