Understanding Drive Arrays B-3
Compaq Confidential – Need to Know Required
Writer: CDresden Project: Compaq Integrated Smart Array Controller User Guide Comments:
Part Number: 153236-001 File Name: i-appb Understanding Drive Arrays.doc Last Saved On: 8/27/99 11:35 AM
Physical Drives
Logical
Drive 1
Logical
Drive 2
Drive Array
Drive 1 Drive 2 Drive 3 Drive 4 Drive 5 Drive 6

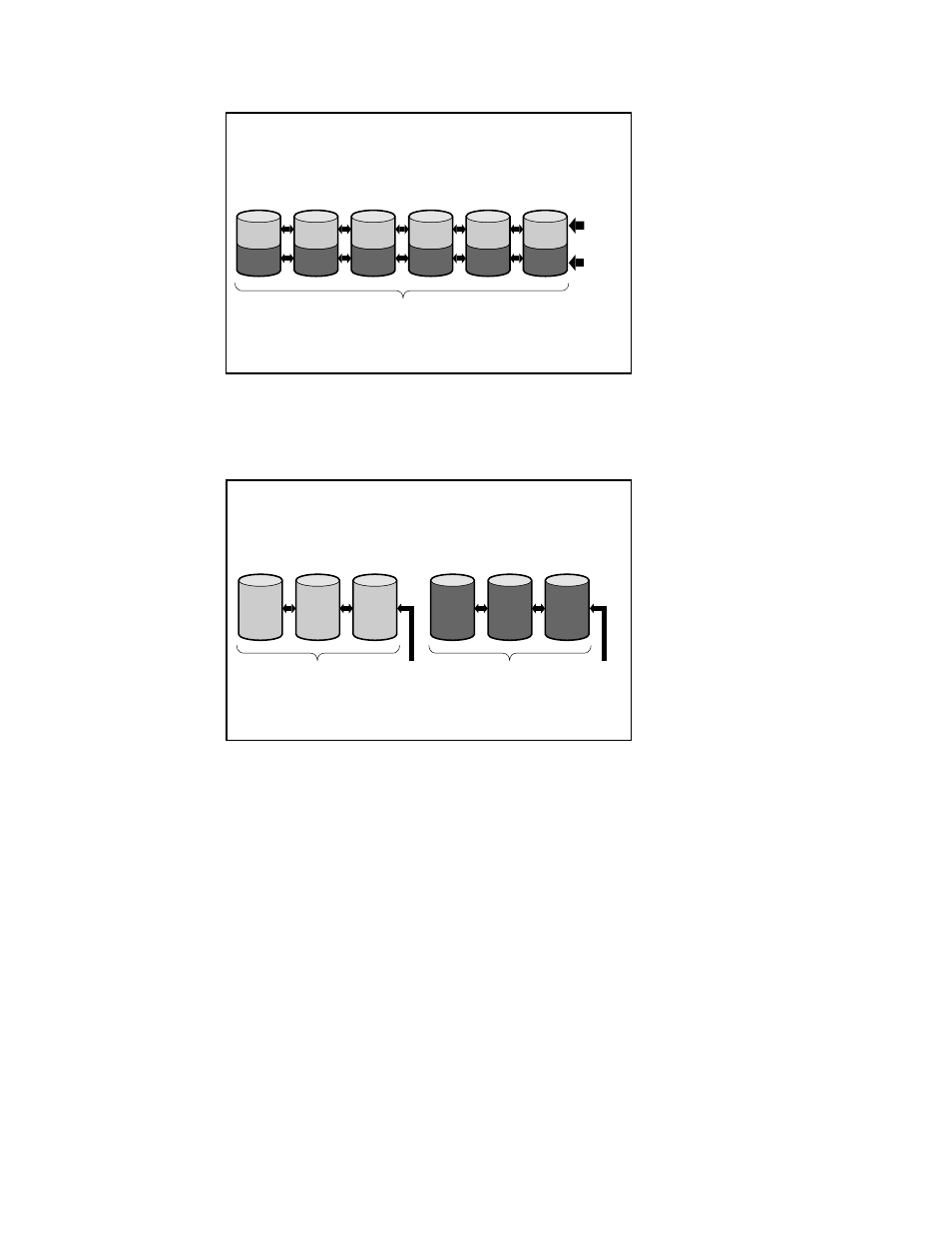

Figure B-3. Drive array with two logical drives and six physical drives
The same physical drives may also be arranged into separate arrays as
illustrated in the figure below. Both arrays can be managed by the same
controller.
Physical Drives
Logical
Drive 1 Logical
Drive 2 Drive Array 1
Drive 1 Drive 2 Drive 3 Drive 4 Drive 5 Drive 6
Drive Array 2
Figure B-4. Two drive arrays with six physical drives
