1-10 Compaq Integrated Smart Array Controller User Guide
Compaq Confidential – Need to Know Required
Writer: CDresden Project: Compaq Integrated Smart Array Controller User Guide Comments:
Part Number: 153236-001 File Name: b-ch1 Controller Features.doc Last Saved On: 8/26/99 8:09 PM
6. Insert the tab end of the controller into the slot at an angle
as shown
below.
NOTE: The controller is keyed to fit the controller slot with the notch toward the bracket
wall. If the controller does not snap into place, check the direction of the notch.
7. Press down evenly on both sides of the controller
until it clicks into
place.
1
2

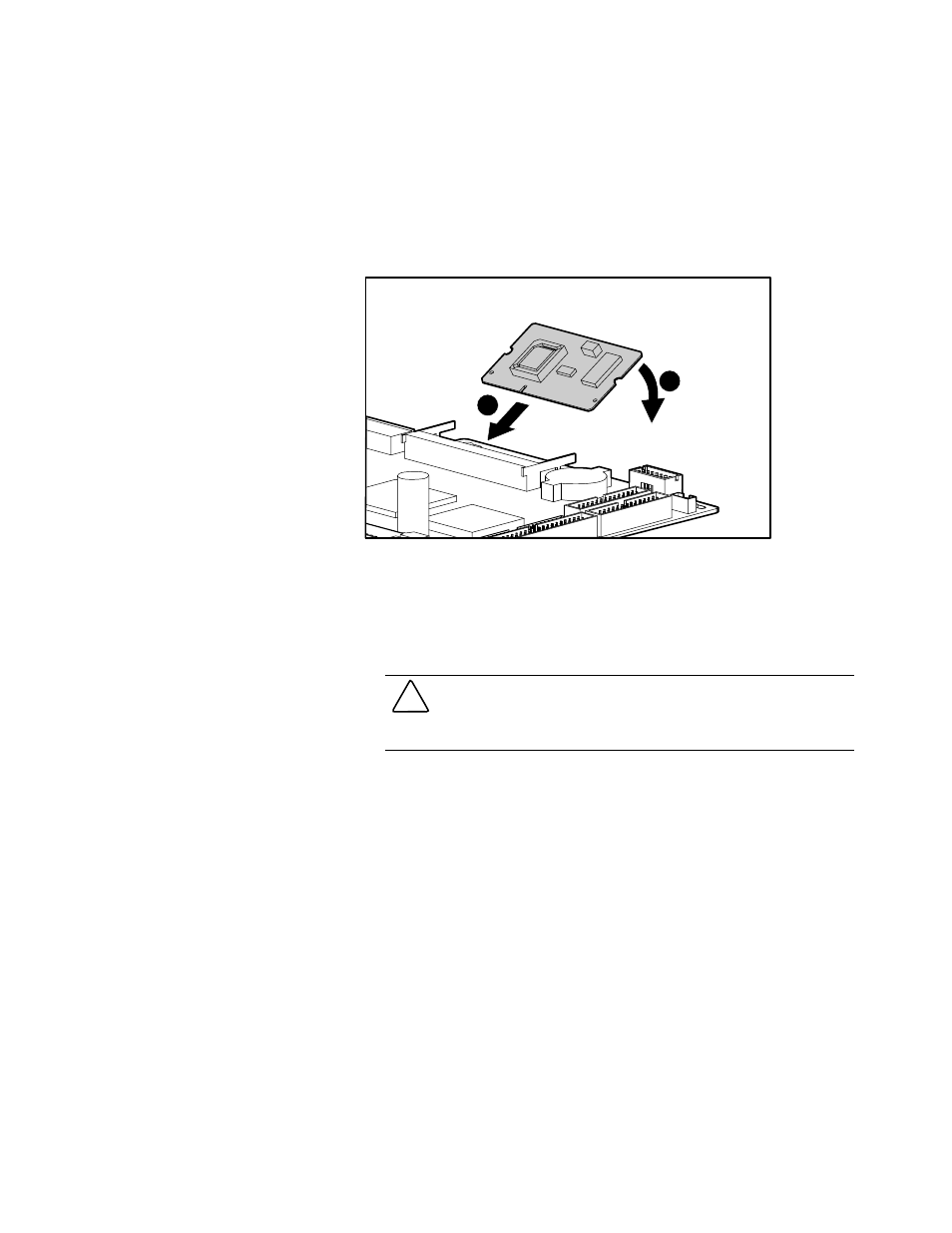

Figure 1-2. Inserting the controller into the system board
NOTE: Your system board may look different.
8. Close the server and reconnect the power cord.
9. Power on the server; let the system detect and configure the controller.
CAUTION: You are required to restore all data stored on the server after
installing the optional Integrated Smart Array Controller. Any information that
was not backed up before installation is permanently deleted when the system
is powered on.
10. Restore any data that was backed up before controller installation.
NOTE: After the controller is installed in your server, continue to update your firmware as
needed and configure the controller to manage hard drives and drive arrays.
