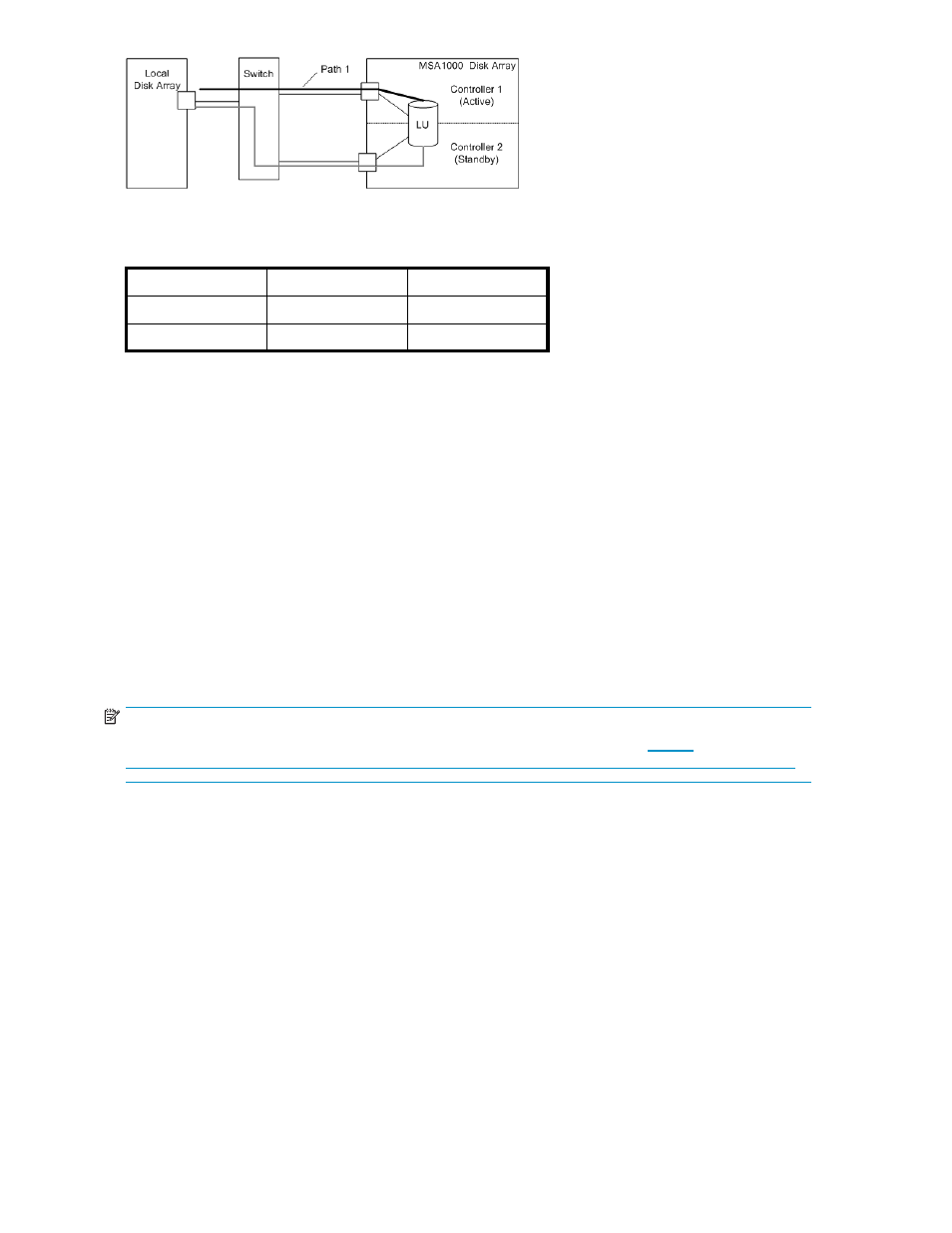

Figure 74 Example: Connecting an MSA array
The following is a summary of the port setting status of the local array when you connect the MSA
external array.
Topology Fabric ON Fabric OFF
Loop Supported Supported
Point-to-Point Supported Not supported
Setting up the MSA
To set up the MSA for use as an external array connected to the XP12000/XP10000/SVS200, perform
the following steps:
1. Define the MSA Array Object.
2. Define the MSA LU.
3. Use MSA Selective Storage Presentation to institute LUN security.
After defining the MSA array object, specify individual storage LUs within the array object. At this point,
institute LUN security on the MSA using the ACU Selective Storage Presentation (SSP) functionality.
Use the HP StorageWorks Array Configuration Utility (ACU) to configure the MSA for its role as an
external array. ACU runs from a server attached to the MSA via a Fibre Channel path.
The MSA Array does not require any special firmware level or hardware additive to be usable by
External Storage XP as long as the firmware level in use supports the appropriate host mode setting (for
example, Windows or Tru64).
NOTE:
Download the ACU and ACU Online User Guide from the following address: http://
h18004.www1.hp.com/products/servers/proliantstorage/software-management/acumatrix/index.html
Defining MSA array objects
Use the Array Configuration Utility (ACU) to define at least one internal MSA array object (for instance,
“A”) when first setting up the array. After defining an array object, specify LUs within that array object.
168 Configuring MSA1000/1500 as external arrays
