Sterlco S-150 Digital Dosing Controller - Manual (Page 63)

63
Appendix C: Dosing factors, equipment drawings and part numbers

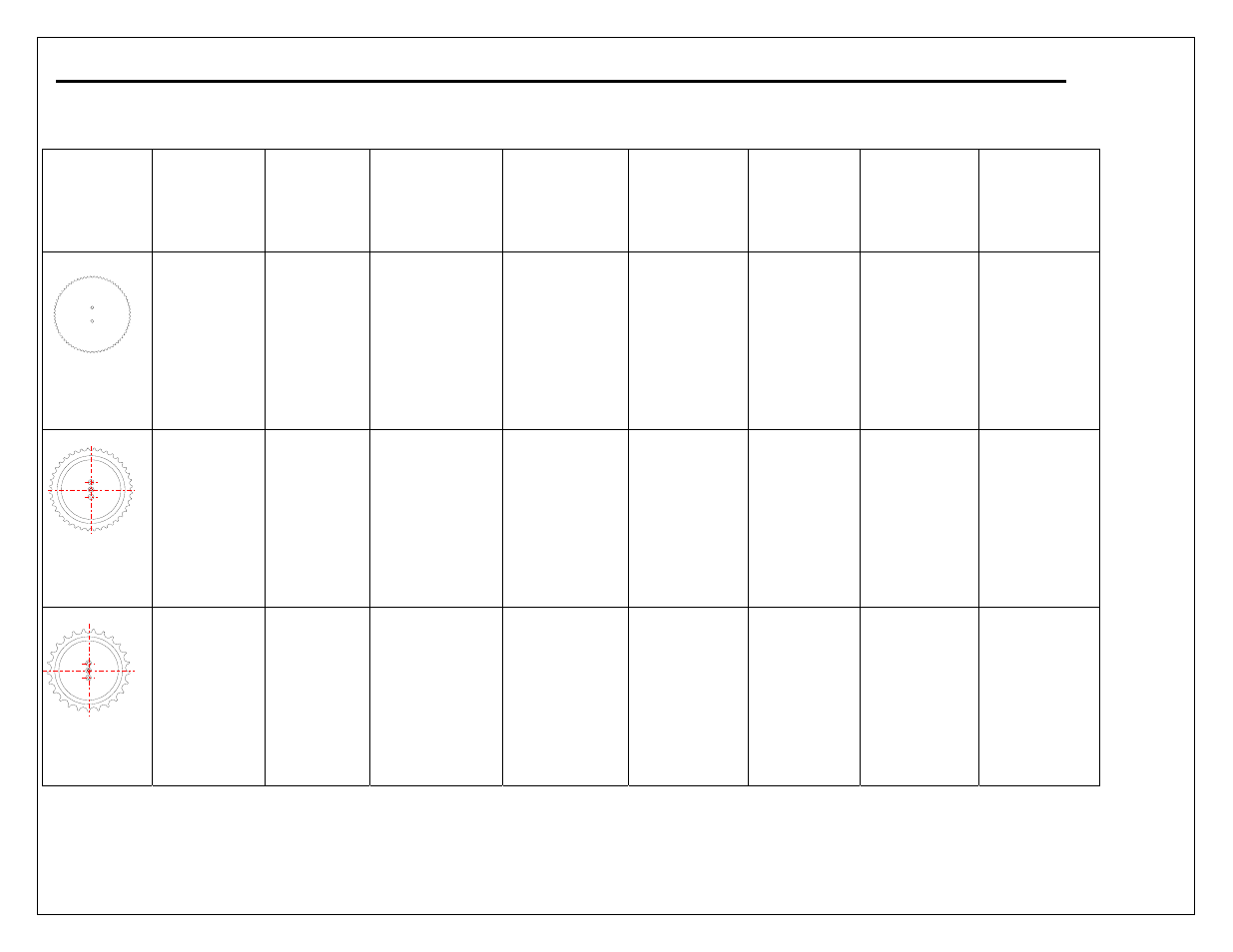

Disc Dosing Factor Table 1: Disc Guide
Disc
Disc
Nomenclature
Used in the
Controller
Minimum/
Maximum
Disc
Revolution
Weight Per Disc
Revolution
(35 lbs/cu. ft.)
Min. Throughput
with 100%
Continuous
Running
(35 lbs./cu. ft.)
Max.
Throughput
with 100%
Continuous
Running
(35 lbs./cu. ft.)
Weight Per
Disc
Revolution
(44 lbs./cu. ft.)
Min.
Throughput
with 100%
Continuous
Running
(44 lbs./cu. ft.)
Max.
Throughput
with 100%
Continuous
Running
(44 lbs./cu. ft.)
DD30-030672
Default
Calibration #
1.50 grams/rev P030672
# of Holes
Diameter
Disc
Thickness 0.2 Rev./min
(6.4 RPM)
0.5 Rev./min
(11.5 RPM)
1.0 Rev./min
(35.5 RPM)
1.53 g/Rev.
0.02 g/Hole
0.04 lb/hr
0.02 kg/hr
0.10 lb/hr
0.045 kg/hr
0.19 lb/hr
0.09 kg/hr
1.30 lbs/hr
0.59 kg/hr
2.32 lbs/hr
1.05 kgs/hr
7.16 lbs/hr
3.25 kgs/hr
1.95 g/rev.
0.027 g/hole
0.04 lb/hr
0.02 kg/h
0.12 lb/hr
0.05 kg/hr
0.26 lb/hr
0.12 kg/hr
1.65 lb/hr
0.75 kg/h
2.89 lb/hr
1.31 kg/hr
9.00 lb/hr
4.10 kg/hr
D30-051040
Default
Calibration #
4.0 grams/rev
051040
# of Holes
Diameter
Disc
Thickness 0.2 Rev./min
(6.4 RPM)
0.5 Rev./min
(11.5 RPM)
1.0 Rev./min
(35.5 RPM)
4.24 g/Rev.
0.11 g/Hole
0.11 lb/hr
0.05 kg/hr
0.27 lb/hr
0.12 kg/hr
0.55 lb/hr
0.25 kg/hr
3.59 lbs/hr
1.63 kgs/hr
6.33 lbs/hr
2.87 kgs/hr
19.80 lbs/hr
9.00 kgs/hr
5.39g/rev.
0.13 g/hole
0.15 lb/hr
0.07kg/h
0.35 lb/hr
0.15 kg/hr
0.70 lb/hr
0.32 kg/hr
4.56 lb/hr
2.07 kg/h
8.00 lb/hr
3.62 kg/hr
25.30 lb/hr
11.50 kg/hr
D30-051725
Default
Calibration #
7.3 grams/rev
051725
# of Holes
Diameter
Disc
Thickness
0.2 Rev./min
(6.4 RPM)
0.5 Rev./min
(11.5 RPM)
1.0 Rev./min
(35.5 RPM)
7.37 g/Rev.
0.30 g/Hole
0.20 lb/hr
0.09 kg/hr
0.48 lb/hr
0.22 kg/hr
1.00 lb/hr
0.44 kg/hr
6.23 lbs/hr
2.83 kgs/h
11.0 lbs/hr
4.99 kgs/hr
34.60 lbs/hr
15.70 kgs/hr
9.38g/rev.
0.38 g/hole
0.24 lb/hr
0.11 kg/h
0.61 lb/hr
0.27 kg/hr
1.25 lb/hr
0.57 kg/hr
7.90 lb/hr
3.60 kg/h
14.0 lb/hr
6.36 kg/hr
44 lbs/hr
