Introduction
Page 1-2
IntraSwitch 6216M and 6224
IntraSwitch
6216M
The IntraSwitch 6216M is a high-performance, 10/100 Ethernet
switch designed for building high-bandwidth workgroups and
high-speed network segments. See figures 1-1 and 1-2.
The IntraSwitch 6216M has 16 fixed 10/100 ports, which
includes two optional Asanté Media Independent Interface
(MII) expansion slots, and built-in Web-based network
management.
The two Asanté MII expansion slots allow for the addition of
100Base-FX or 10Base-FL connections.

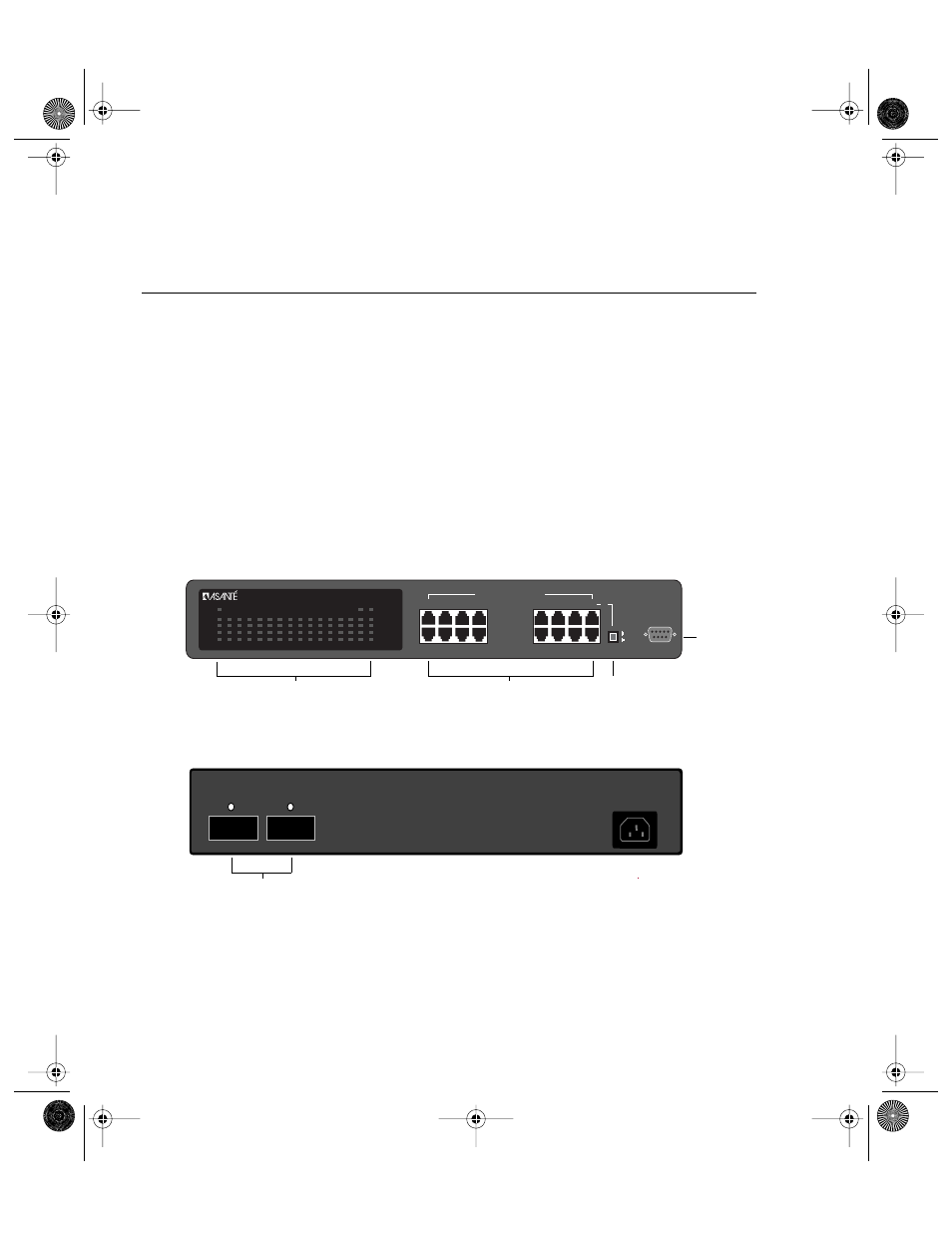

Figure 1-1
IntraSwitch 6216M Front Panel
Figure 1-2
IntraSwitch 6216M Back Panel
1
3
5
7
Switched 10/100Mbps Ports
Power
100Mbps
FDP
Data
Link
2
4
6
8
9
11
13
15
10
12
14
16
2
1
3
4
9
10
11
12
5
6
7
8
13
14
15
16
IntraSwitch 6216M
or
Uplink
Normal
Console
MII2
MII1
Sixteen 10/100Base-T Ports
Port
LEDs
Console
Uplink
Switch
100-240Vac Input
MII 2 (Port 16)
MII 1 (Port 15)
Two Asanté Media Independent Interface
(MII) Expansion Slots
