Dwyer ULSS - Manual (Page 22)

22 of 30 MN890570 Rev A
INSTALLATION Step Nine

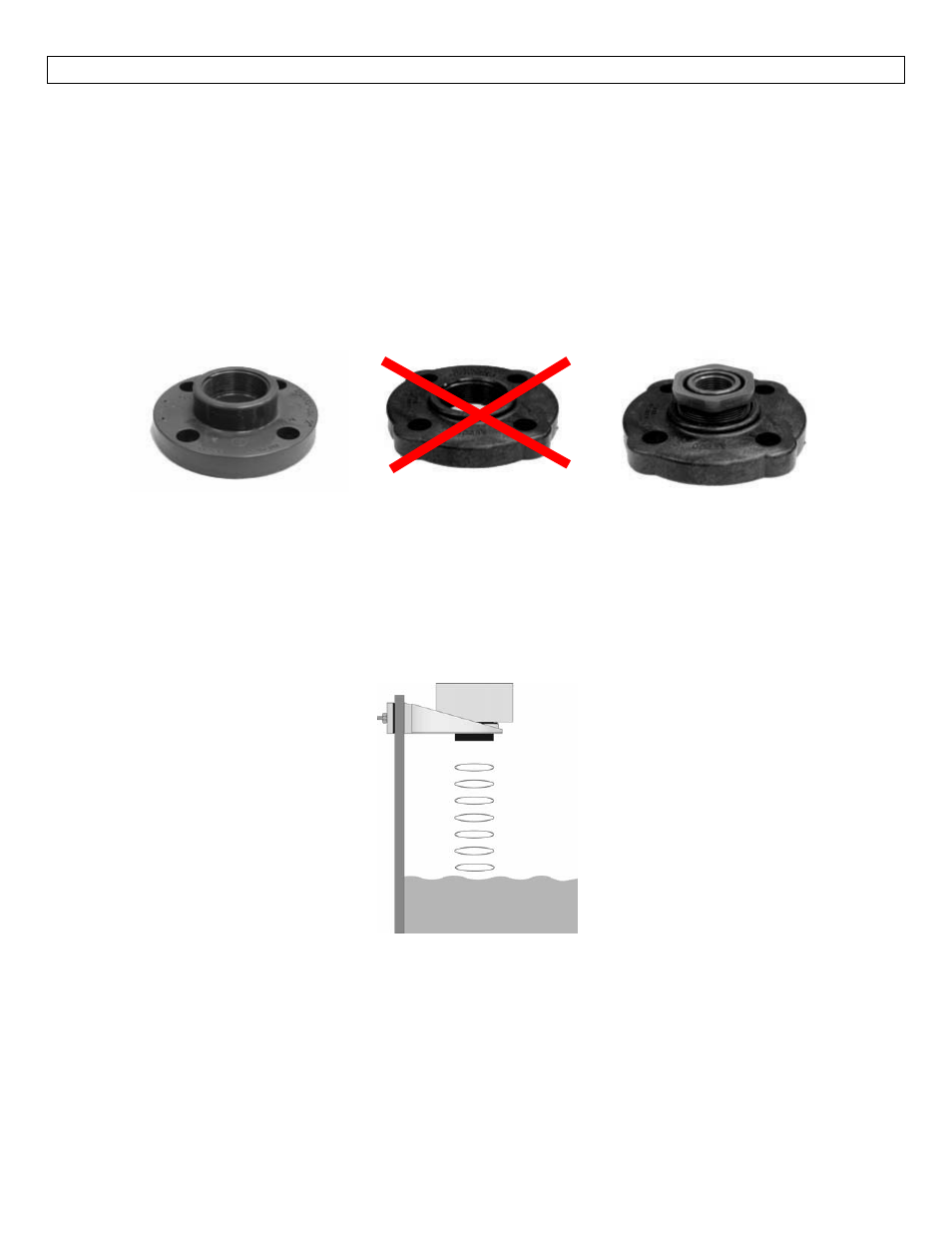

3. Flange (Series ULSS & ULSM): If installing on a flange, select a flange with a thread that is above the
plane of the flange, such as the ULS‐ACC‐312.
a. The Series ULSL works well with flange installations.
b. Avoid the use of blind flanges with tapped threads or flanges where the threads are even with
the plane of the flange, such as the Banjo 1" Poly ANSI Flange (series AF100).
c. Use a flange with a 2” thread and add a 2” to 1” reducer bushing to complete the installation.
2” Flange w/
thread out of plane
(ULS‐ACC‐312)
1” Flange w/
thread in plane
2” Flange w/
reducer bushing
(ULS‐ACC‐121)
Do not use thread in plane
4. Side Mount Bracket: For installations in open tanks and sumps, use the ULS‐ACC‐510 or ULS‐ACC‐520
side mount bracket.
a. For the Series ULSS & ULSM, order the ULS‐ACC‐510, which includes a 2” x 1” Reducer Bushing.
b. For the Series ULSL, order the ULS‐ACC‐520 side mount bracket.
