ULSX‐CAL CONFIGURATION (continued)
Step Seven
Switch/Alarm Configuration: This feature allows you to select the
operation for the switches / alarms (used as a high or low alarm). This
setting adjusts the number of available relays based upon the previous
settings.
o
No Alarm – Turns off all of the remaining relays.
o
High Alarm Options – Set from 1 to 4 High Alarms (1‐High, 2‐
High, 3‐High, 4‐High).
o
Low Alarm Options – Set from 1 to 4 Low Alarms (1‐Low, 2‐
Low, 3‐Low, 4‐Low).
o
Combination Alarms – Set a combination of High and Low
Alarms (1‐Low 1‐High, 1‐Low 2‐High, 2‐Low 1‐High, 2‐Low 2‐
High, 1‐Low 3‐High, 3‐Low 1‐High).
o
Not Applicable – Appears when this function is not available
(such as when Transmitters Only is selected).

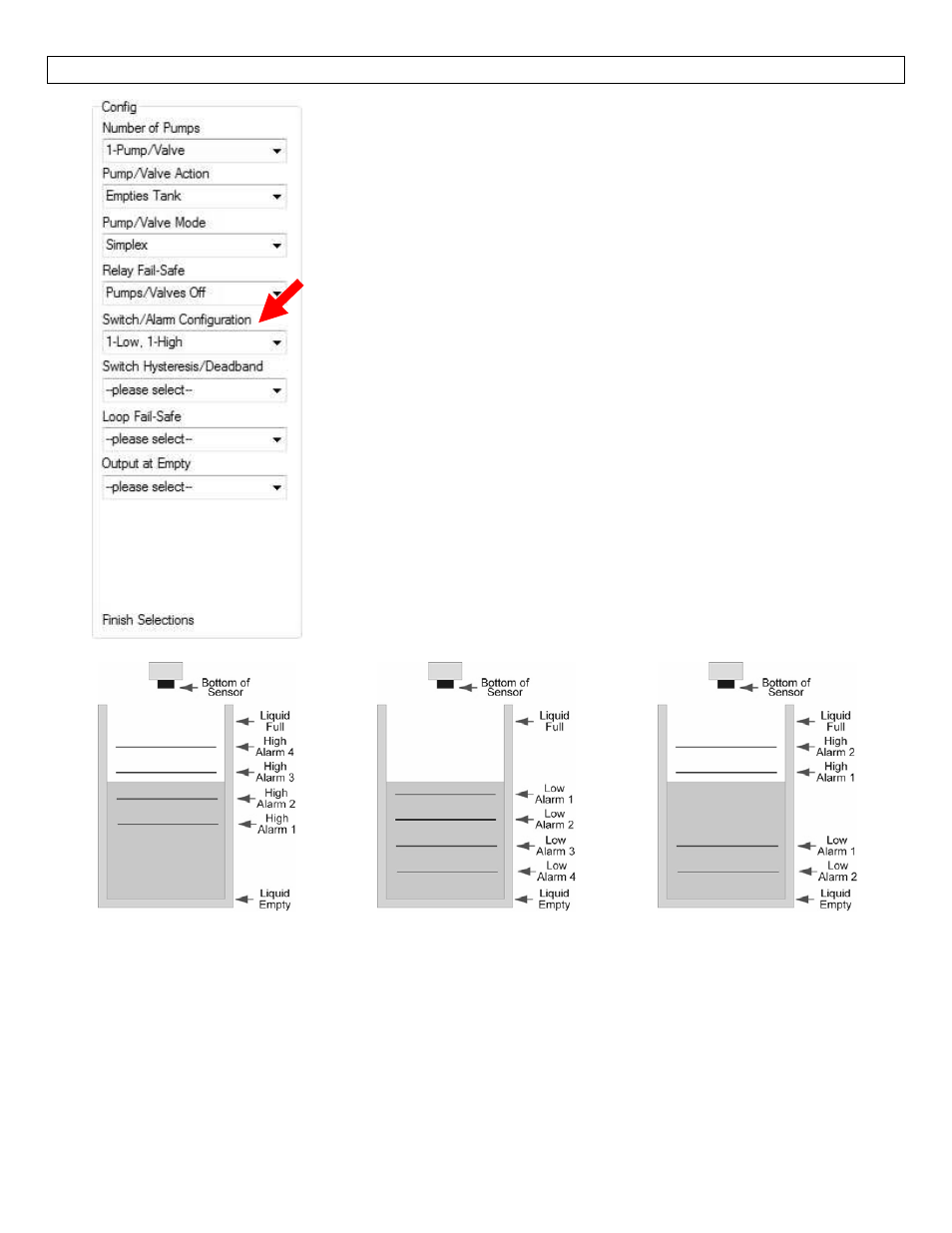

High Alarm Options
Low Alarms Options
Combination Alarms
(4 High)
(4 Low)
(2 High and 2 Low)
Note: Right click on any menu that you may have questions on to open the help menu.
Note: To reset, press the Clear Screen button.
