8.2. Establish Setting
Select Tab Page 2 on the SITE SETUP screen and the following screen appears.

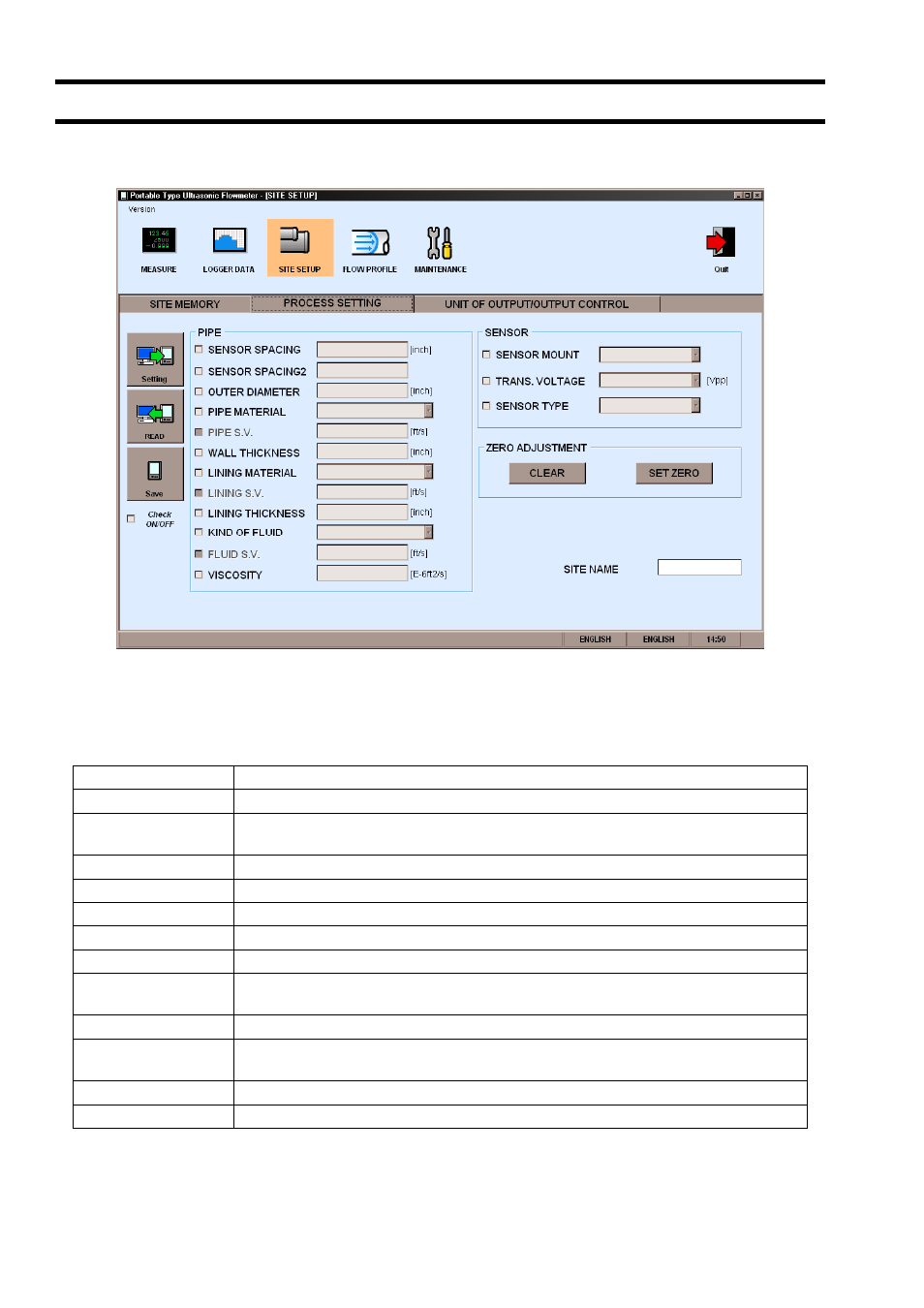

Fig. 8-5 PROCESS SETTING screen
Table 8 −2 Piping specifications
Item Contents
OUTER DIAMETER Enter in the range of 13.00 to 6000.00mm [0.5118 to 236.22inch].
PIPE MATERIAL
Select from carbon steel, stainless steel, PVC, Copper, Cast iron, aluminum, FRP, ductile
iron, PEEK, PVDF, acrylic, PP and others.
PIPE S.V. Enter in the range of 1000 to 3700m/s [3280 to 12140ft/s].(Unit dependent)
WALL THICKNESS Enter in the range of 0.10 to 100.00mm [0.0039 to 3.9370inch].(Unit dependent)
LINING MATERIAL Select from no lining, tar epoxy, mortar, rubber,
TFE, pyrex, glass, PVC and others.
LINING S.V. Enter in the range of 1000 to 3700m/s [3280 to 12140ft/s].(Unit dependent)
LINING THICKNESS Enter in the range of 0.01 to 100.00mm [0.0003 to 3.9370inch].(Unit dependent)
KIND OF FLUID
Select from water, seawater, dist. water, ammonia, alcohol, benzene, bromide, ethanol,
glycol, kerosene, milk, methanol, toluol, lube oil, fuel oil, petrol and others.
FLUID S.V. Enter in the range of 300 to 2500m/s [984 to 8203ft/s].(Unit dependent)
VISCOSITY
Enter in the range of 0.0010 to 999.999×10
-6
m
2
/s [0.0107 to 10763.9094×10
-6
ft
2
/s].(Unit
dependent)
SENSOR SPACING Displayed during [READ] only.
SENSOR SPACING Displayed during [READ] operation.
x If “Other” is selected as pipe material, pipe sound velocity becomes valid.
x If “Other” is selected as lining material, lining sound velocity becomes valid.
x If other than “No lining” is selected as lining material, lining thickness becomes valid.
x If “Other” is selected as fluid type, fluid sound velocity becomes valid.
