Caleffi 6000 - Manual (Page 32)

Flow
Common
Return
Shock
enabled
Shock
disabled
(factory setting)
Mixing valve fuse
1 A - 250 V delayed
Appliance fuse
80 mA - 250 V delayed
Closes
Common
Opens
Earth*
Neutral
Live
Relay 4
Relay 3
Relay 2
Relay 1
Battery connected Battery disconnected
Battery connection
Relay
contacts
Earth*
Electric supply 230
V
Mixing
valve
Thermal
shock
activation
Temperature
pr
obes
Back panel

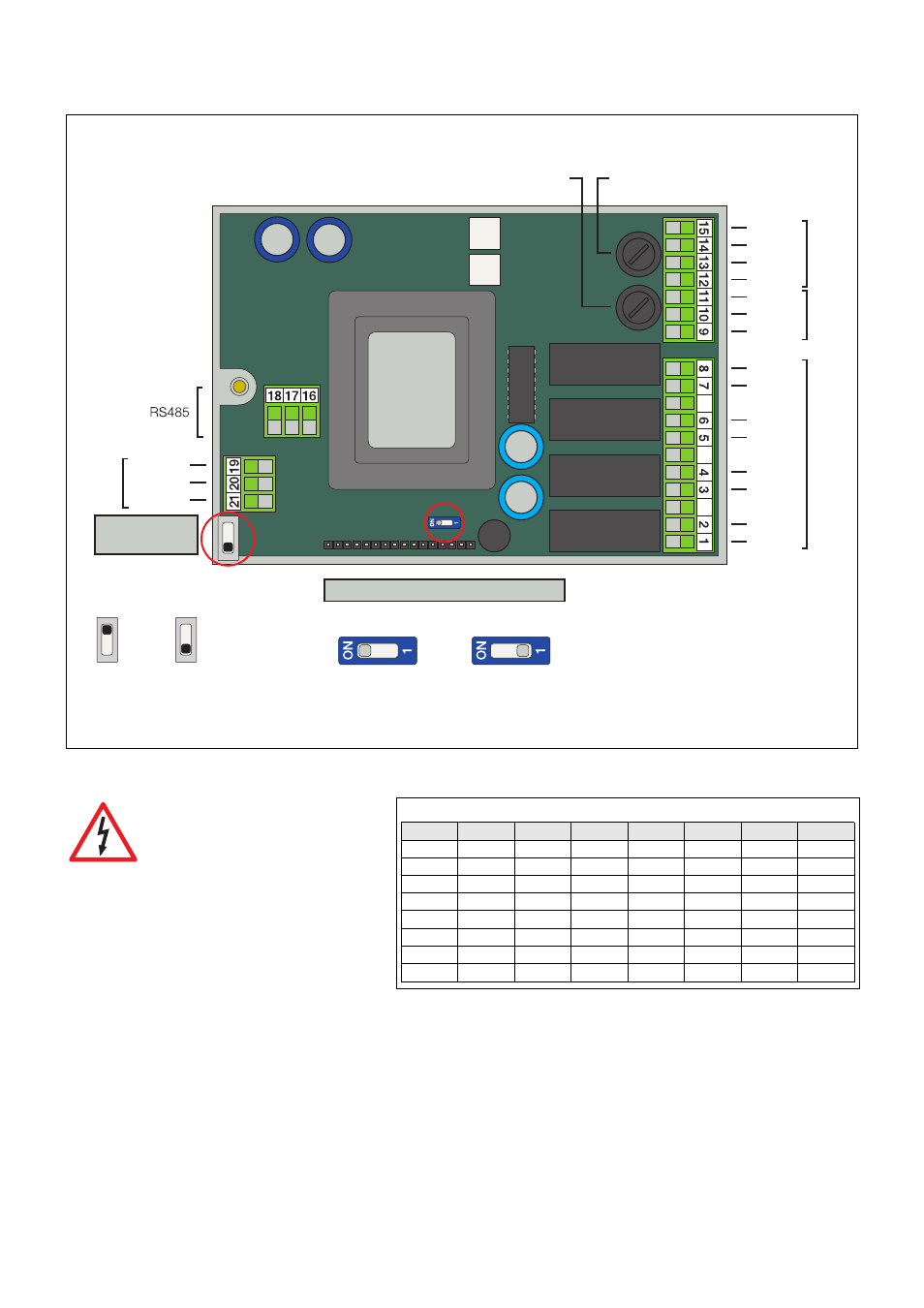

Connection of probes:
The cable connecting the flow
and
return probes with the
regulator must be installed in a
dedicated
raceway. If the
connecting cable is put into a
raceway with other live cables,
an earthed shielded cable must
be used.
°C
-20
-15
-10
-5
0
5
10
15
Ω
97060
72940
55319
42324
32654
25396
19903
15714
°C
20
25
30
35
40
45
50
55
Ω
12493
10000
8056
6530
5327
4370
3603
2986
°C
60
65
70
75
80
85
90
95
Ω
2488
2083
1752
1480
1255
1070
915
787
°C
100
105
110
115
120
125
Ω
680
592
517
450
390
340
Probe resistance table
7
* Earth connection not used for the threaded version
