Page 44: Page 44, Ultrason
Optional Sensor US2-1-B-1-A
Maximum Range:
32 ft. (10 m)
Deadband (blanking):
Programmable, minimum 12” (305 mm)
Beam Angle:
8
° at 3 DB
Temperature Compensation:
Automatic, continuous
Operating Frequency:
42 KHz
Exposed Materials:
Teflon
Operating Temperature:
-40
° to 170°F (-40° to 76°C)
Operating Pressure:
20 psi (1.35 Bar) maximum
Mounting:
¾” NPT (Teflon isolation coupling
supplied)
Sensor Cable:
RG62AU coaxial, 25 ft. (7.6 m) standard
Hazardous Rating:
with optional Intrinsic Safety Barrier:
CSA, Class I,II,III, Div. I,II, Groups
C,D,E,F,G,
Note: Max Range reduced to 25 ft (7.6
m) with ISB option.
Optional US2-2-A-1-B
Maximum Range:
50 ft. (15.6 m)
Deadband (blanking):
Programmable, minimum 16"(406mm)
Beam Angle:
8º at 3 DB
Temperature Compensation:
Automatic, continuous
Operating Frequency:
40 KHz
Exposed Materials:
PVC and Teflon
Operating Temperature:
-40 to 150ºF (-40 to 65ºC)
Operating Pressure:
20 psi (1.35 Bar) maximum
Mounting:
¾” NPT (Isolation Coupling supplied)
Sensor Cable:
RG62Au coaxial, 50 ft. (15 m) standard
Hazardous Rating:
with optional Intrinsic Safety Barrier:
CSA, Class I,II,III, Div. I,II, Groups
C,D,E,F,G,
Note: Max Range reduced to 32 ft (10
m) with ISB option.

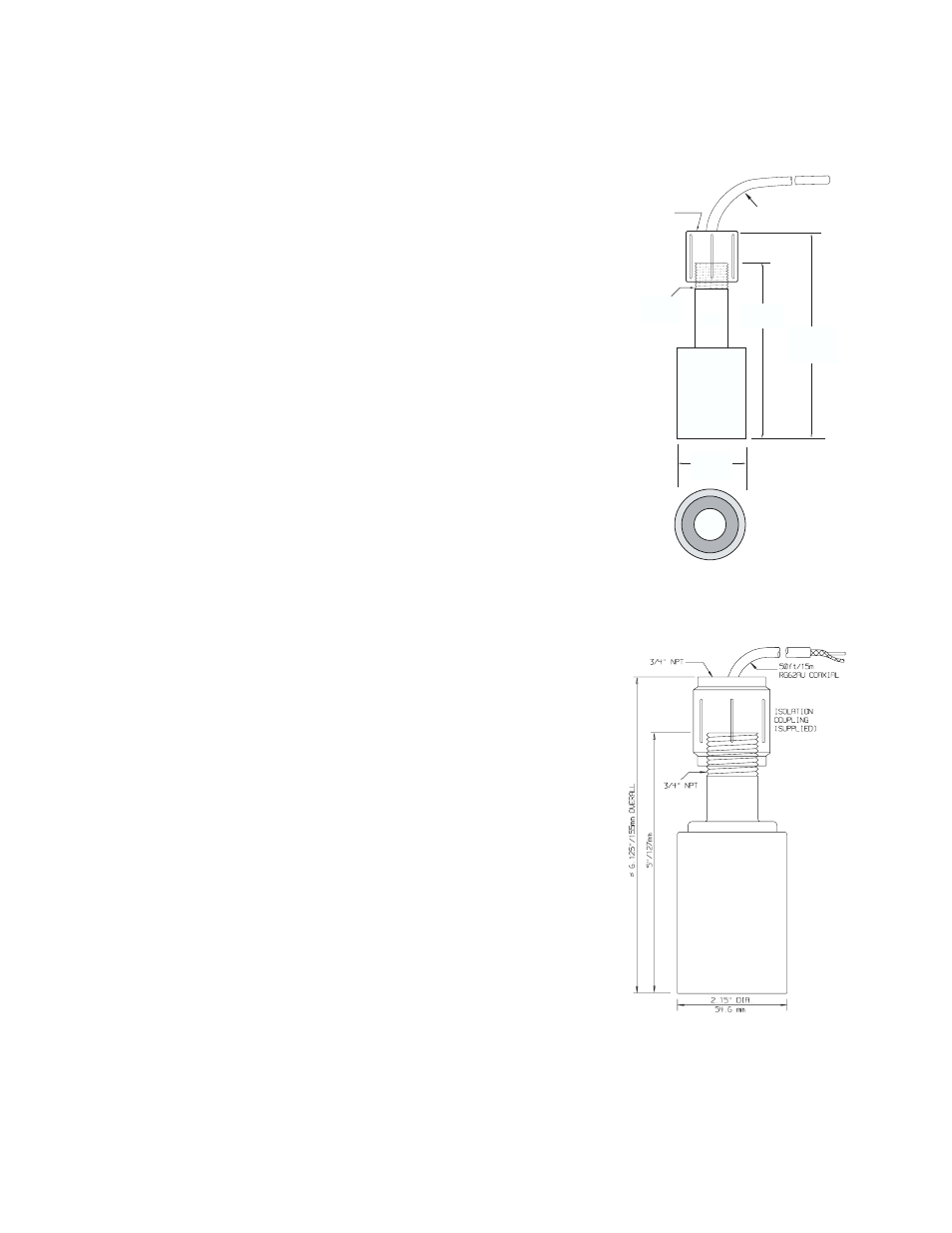

Page 44
AquaMetrix
Ultrason
PVC
PVC
1-3/4 "
44.5mm
3-7/8 "
98mm
3/4"
NPT
SIDE
VIEW
END
VIEW
5"
(127 mm)
OVERALL
3/4"
NPT
ISOLATION
COUPLING
(SUPPLIED)
T
E
F
L
O
TEFLON
TEFLON
TEFLON
TEFLON
25' (7.6 m) RG62AU
COAXIAL CABLE
