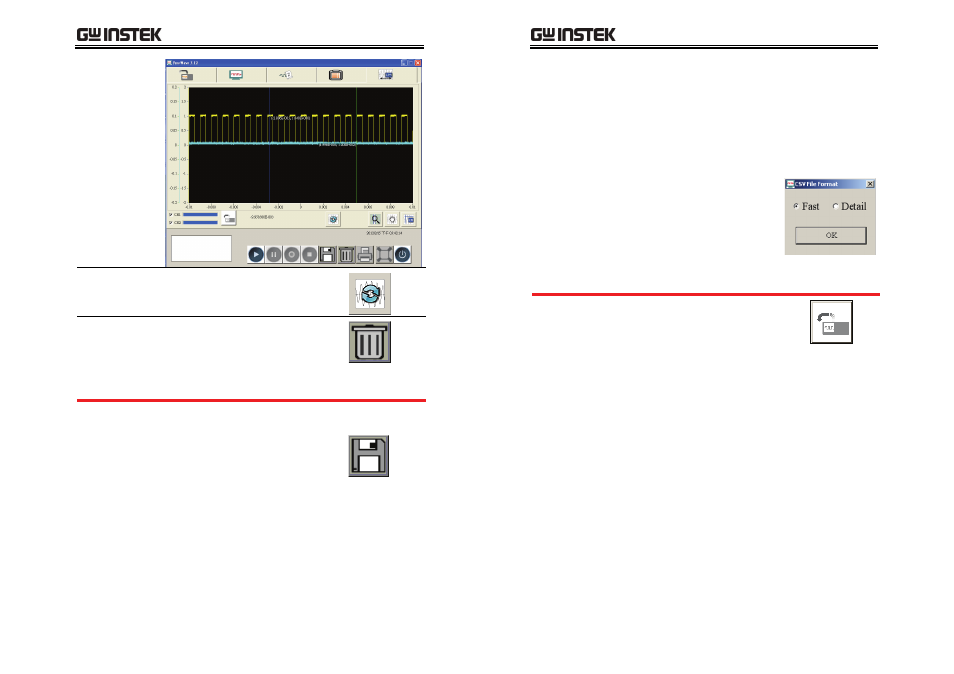

Long Memory Data Capture

51

Reset Waveform

Pressing the Reset key will reset the
waveform position and scale as
well as remove the cursors.

Clear waveforms

To clear the waveforms on the
screen, press the Delete key.

Saving Waveform Data

1. Make sure that there is a waveform in the Freewave screen.

2. Click on the Save button. A file save dialog box

will appear.

3. Select a file name and location and save the data. The CSV data

file stores the waveform data points as well as the oscilloscope
identification. A *.csv file will be saved for each active channel.
Each file will be appended with the channel number. For
example: test Ætest1.csv, test2.csv

Data file format

CSV (*.csv)

Freewave

Manual

52

Data file contents

Manufacturer

Serial number

Saved Date

Model name

Firmware

Waveform Data

When saving files, you will get the option to save “Fast” or
“Detail” waveform data. Fast data only contains amplitude data.
Detail data also contains the time of each point relative to the
trigger point.

4. Choose Fast or Detailed and click OK. The file

will be saved.

Recalling Waveform Data

1. Click on the Recall button.

2. Select a file to recall from the file panel. A file can be only be

loaded to the channel it was originally saved to.

Data file format

CSV (*.csv)

Data file contents

Manufacture

Serial number

Saved Date

Model name

Firmware

Waveform Data

Both Fast and Detail file formats can be recalled. Standard
memory and long memory files can also be recalled.
